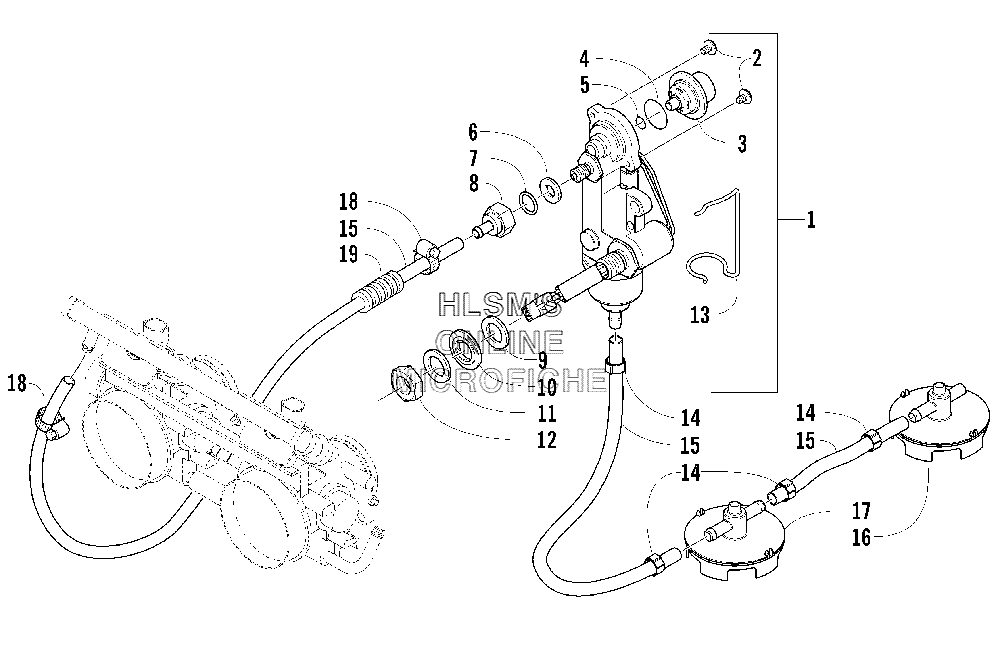

FUEL PUMP ASSEMBLY для Arctic Cat Sabercat 700 EFI (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-421 PUMP, FUEL, ASSEMBLY (INC. 2, 13)
    PUMP, FUEL, ASSEMBLY (INC. 2, 13)
  • 2
    1670-412 SCREW
    SCREW
  • 3
    1670-536 REGULATOR, PRESSURE
    REGULATOR, PRESSURE
  • 4
    1670-532 O-RING, REGULATOR
    O-RING, REGULATOR
  • 5
    1670-533 O-RING, REGULATOR
    O-RING, REGULATOR
  • 6
    1670-535 GROMMET
    GROMMET
  • 7
    1670-476 O-RING
    O-RING
  • 8
    1670-475 NUT, FUEL PUMP FITTING
    NUT, FUEL PUMP FITTING
  • 9
    1670-534 GROMMET
    GROMMET
  • 10
    1670-479 WASHER, SEALING, THREADED
    WASHER, SEALING, THREADED
  • 11
    1670-478 WASHER
    WASHER
  • 12
    1670-477 NUT, MOUNTING
    NUT, MOUNTING
  • 13
    1670-579 RETAINER, WIRE
    RETAINER, WIRE
  • 14
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 15
    0610-075 HOSE, GASLINE (10 FT)
    HOSE, GASLINE (10 FT)
  • 16
    1670-618 PICKUP, FUEL
    PICKUP, FUEL
  • 17
    1670-617 PICKUP, FUEL
    PICKUP, FUEL
  • 18
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0716-558 CONDUIT, FLEXIBLE (10 FT)
    CONDUIT, FLEXIBLE (10 FT)
