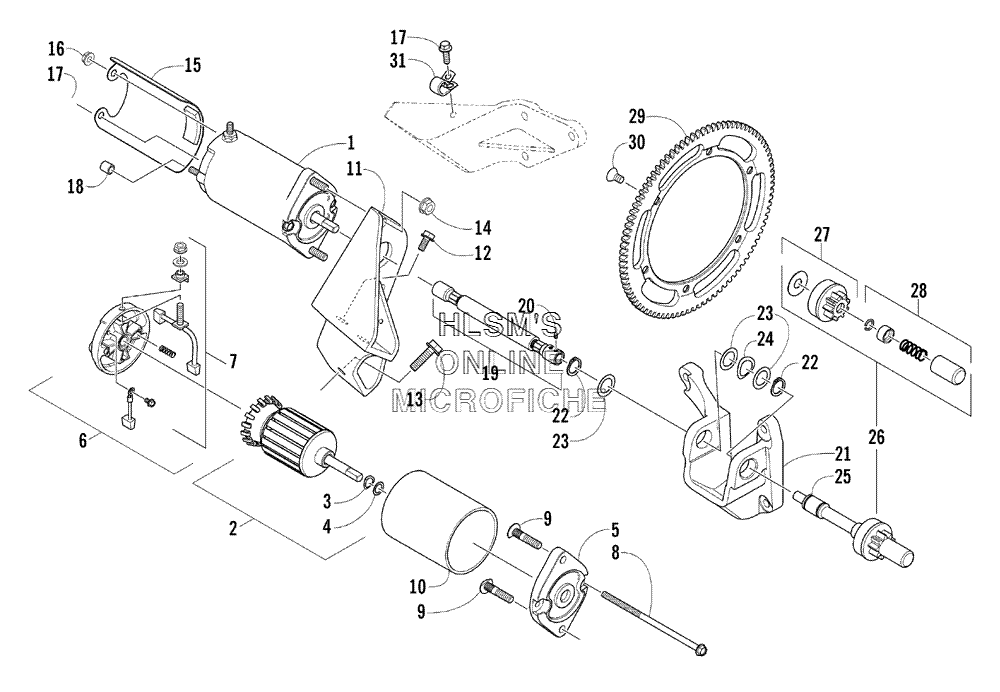

FLEX-DRIVE STARTER MOTOR ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска`
-
№АртикулНазвание
-
10745-143 MOTOR, STARTER (INC. 2, 10)MOTOR, STARTER (INC. 2, 10)
-
20645-296 ARMATURE ASSEMBLY (INC. 3, 4)ARMATURE ASSEMBLY (INC. 3, 4)
-
30645-131 WASHER, WAVEWASHER, WAVE
-
40645-293 WASHER, THRUSTWASHER, THRUST
-
50645-297 CAP, DRIVECAP, DRIVE
-
60645-313 CAP, COMMUTATOR (INC. 7)CAP, COMMUTATOR (INC. 7)
-
70645-275 BRUSH AND SPRING KITBRUSH AND SPRING KIT
-
80645-128 THROUGH, BOLTTHROUGH, BOLT
-
90623-093 BOLT, RIBBEDBOLT, RIBBED
-
110708-097 BRACKET, MOUNTING, STARTER MOTORBRACKET, MOUNTING, STARTER MOTOR
-
120623-890 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
138020-224 SCREW, CAPSCREW, CAP
-
148048-426 NUT, LOCKNUT, LOCK
-
150745-181 SHIELD, HEATSHIELD, HEAT
-
168048-366 NUT, LOCKNUT, LOCK
-
170623-892 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180623-404 CAP, PROTECTORCAP, PROTECTOR
-
190745-169 SHAFT, FLEX, DRIVE (INC. 20)SHAFT, FLEX, DRIVE (INC. 20)
-
200623-891 SCREW, SET, SOCKETSCREW, SET, SOCKET
-
210745-179 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
220645-256 RING, SNAPRING, SNAP
-
230645-254 WASHER, THRUSTWASHER, THRUST
-
240645-255 WASHER, WAVEWASHER, WAVE
-
250745-150 DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 26, 28)DRIVE, PINION, FLEX, DRIVE SHAFT (INC. 26, 28)
-
260745-145 KIT, PINION DRIVE ASSEMBLY (INC. 27, 28)KIT, PINION DRIVE ASSEMBLY (INC. 27, 28)
-
270745-146 PINION DRIVE ASSEMBLYPINION DRIVE ASSEMBLY
-
280645-186 PINION STOPPER ASSEMBLYPINION STOPPER ASSEMBLY
-
290645-329 RING GEARRING GEAR
-
301623-128 SCREW, MACHINE, SOCKET HEADSCREW, MACHINE, SOCKET HEAD
-
311623-080 CLAMP, FLEX, DRIVE SHAFTCLAMP, FLEX, DRIVE SHAFT
