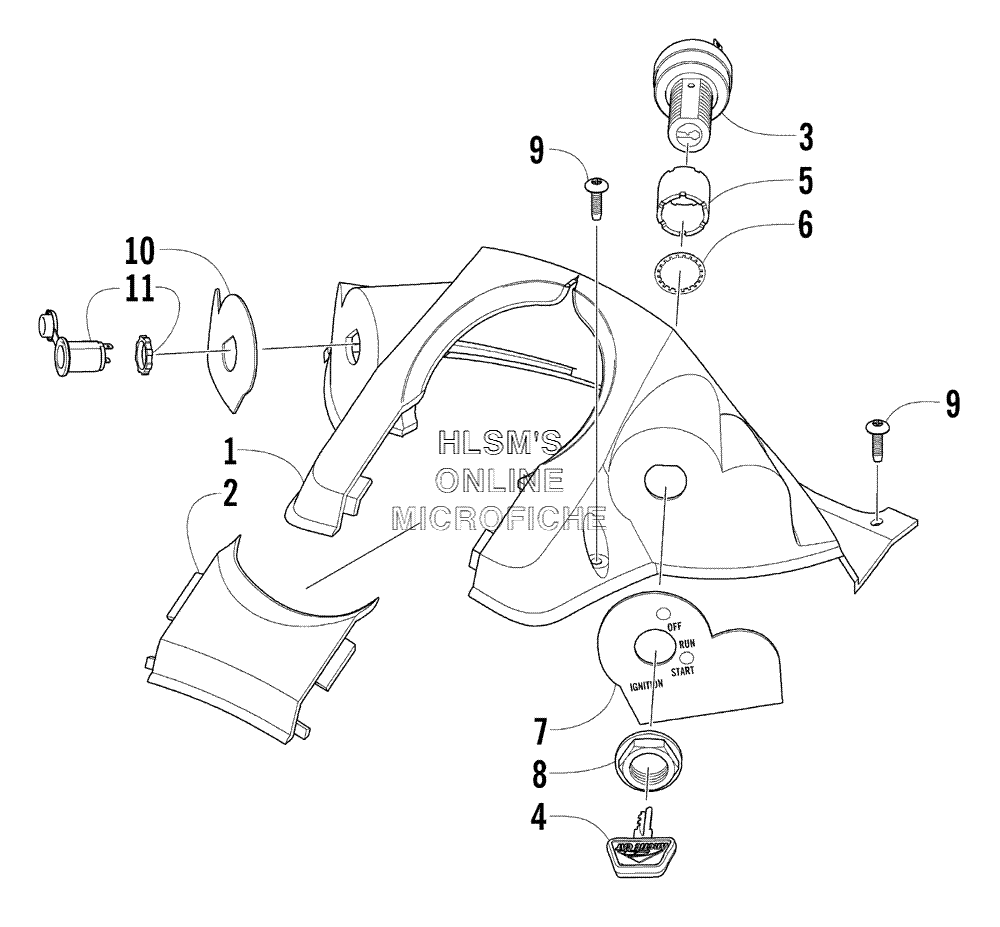

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Pantera 600 EFI - 2005 года выпуска`
-
№АртикулНазвание
-
11606-615 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-449 SWITCH, IGNITION (INC. 4)SWITCH, IGNITION (INC. 4)
-
50609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
60123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
72611-744 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
80609-113 NUT, RETAININGNUT, RETAINING
-
91623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
105611-493 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
110641-158 OUTLET, ACCESSORYOUTLET, ACCESSORY
