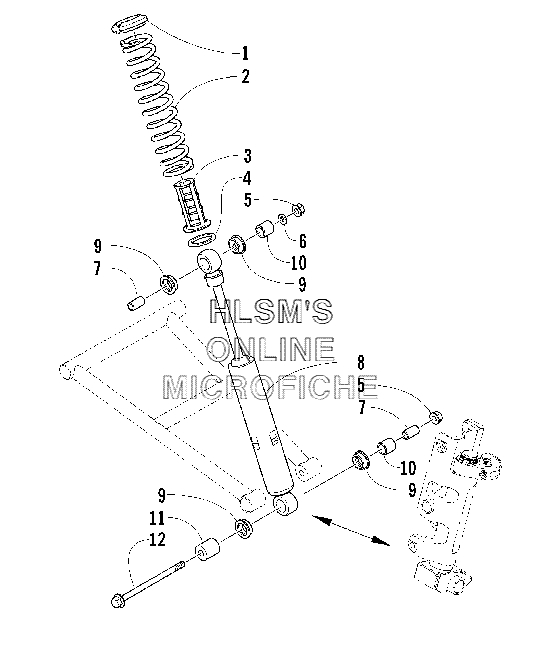

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat M5 141'' (GREEN) - 2005 года выпуска
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
21703-787 SPRING, COMPRESSIONSPRING, COMPRESSION
-
32603-533 SLEEVE, WEARSLEEVE, WEAR
-
42603-532 RETAINER, SPRING (LOWER)RETAINER, SPRING (LOWER)
-
58047-486 NUT, LOCKNUT, LOCK
-
60623-991 WASHERWASHER
-
71603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
82603-385 SHOCK, SKI (INC. 9, 10)SHOCK, SKI (INC. 9, 10)
-
90603-955 BUSHING, SHOCKBUSHING, SHOCK
-
101603-209 SLEEVE, SHOCKSLEEVE, SHOCK
-
110603-648 SPACER, SHOCK MOUNTSPACER, SHOCK MOUNT
-
128020-232 SCREW, CAPSCREW, CAP
