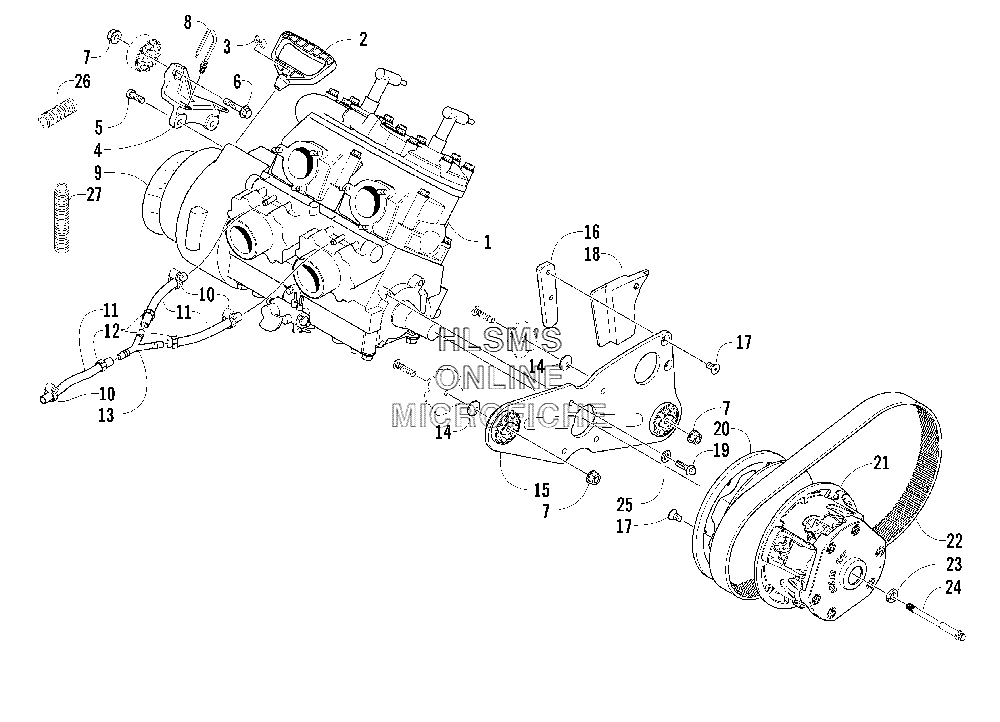

ENGINE AND RELATED PARTS для Arctic Cat M5 141'' (GREEN) - 2005 года выпуска`
-
№АртикулНазвание
-
10662-415 ENGINE, AW50L4ENGINE, AW50L4
-
20636-363 HANDLE, RECOILHANDLE, RECOIL
-
30606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
40708-461 BRACKET, ENGINE MOUNTING (RIGHT)BRACKET, ENGINE MOUNTING (RIGHT)
-
58413-830 SCREW, CAPSCREW, CAP
-
68020-136 SCREW, CAPSCREW, CAP
-
78047-426 NUT, LOCKNUT, LOCK
-
80623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
91670-328 FOIL, PROTECTIVEFOIL, PROTECTIVE
-
100623-373 CLAMP, HOSECLAMP, HOSE
-
110610-076 HOSE, COOLANT (10 FT)HOSE, COOLANT (10 FT)
-
120610-581 CLAMP, HOSECLAMP, HOSE
-
131670-596 Y, FITTINGY, FITTING
-
140623-987 WASHERWASHER
-
150708-442 BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND TWO NO. 17)BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND TWO NO. 17)
-
160608-430 SPACER, TORQUE BUMPERSPACER, TORQUE BUMPER
-
171623-128 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
180608-433 BUMPER, TORQUEBUMPER, TORQUE
-
198413-825 SCREW, CAPSCREW, CAP
-
200645-443 DAMPER, CLUTCHDAMPER, CLUTCH
-
210725-469 CLUTCH, DRIVECLUTCH, DRIVE
-
220627-036 BELT, DRIVEBELT, DRIVE
-
230623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
240623-804 BOLT, CLUTCHBOLT, CLUTCH
-
258050-252 WASHERWASHER
-
260619-619 CONDUIT, FLEXIBLE, 4 IN.CONDUIT, FLEXIBLE, 4 IN.
-
270619-994 CONDUIT, FLEXIBLE (3/4 ID-6)CONDUIT, FLEXIBLE (3/4 ID-6)
