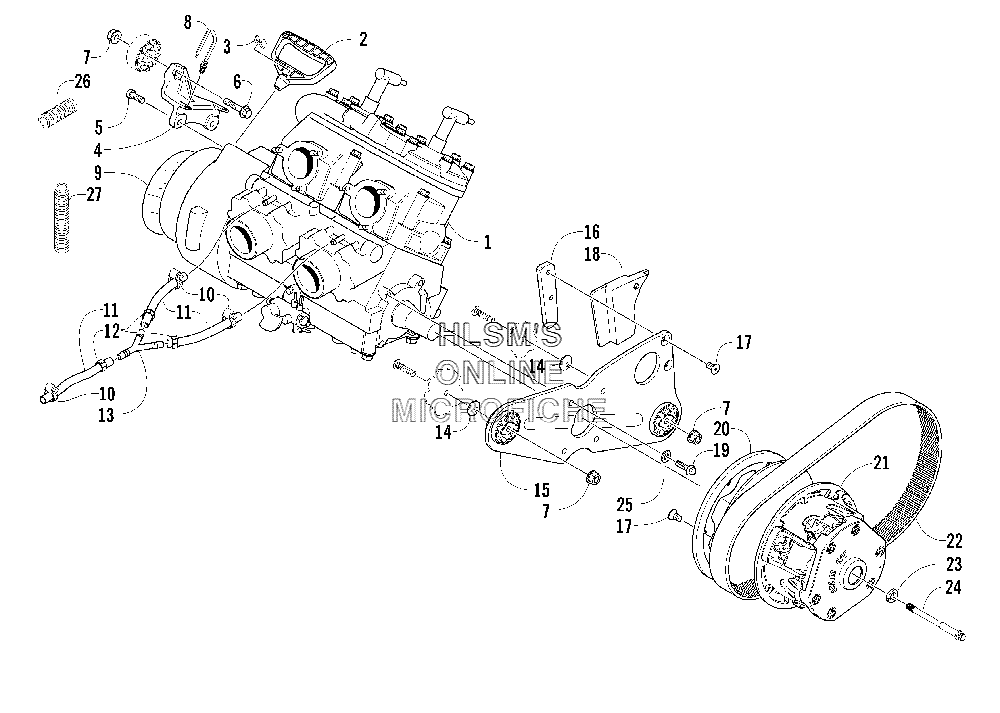

ENGINE AND RELATED PARTS для Arctic Cat M5 141'' (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-415 ENGINE, AW50L4
    ENGINE, AW50L4
  • 2
    0636-363 HANDLE, RECOIL
    HANDLE, RECOIL
  • 3
    0606-885 CAP, RECOIL HANDLE
    CAP, RECOIL HANDLE
  • 4
    0708-461 BRACKET, ENGINE MOUNTING (RIGHT)
    BRACKET, ENGINE MOUNTING (RIGHT)
  • 5
    8413-830 SCREW, CAP
    SCREW, CAP
  • 6
    8020-136 SCREW, CAP
    SCREW, CAP
  • 7
    8047-426 NUT, LOCK
    NUT, LOCK
  • 8
    0623-677 CABLE TIE, PUSH, MOUNT
    CABLE TIE, PUSH, MOUNT
  • 9
    1670-328 FOIL, PROTECTIVE
    FOIL, PROTECTIVE
  • 10
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 11
    0610-076 HOSE, COOLANT (10 FT)
    HOSE, COOLANT (10 FT)
  • 12
    0610-581 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    1670-596 Y, FITTING
    Y, FITTING
  • 14
    0623-987 WASHER
    WASHER
  • 15
    0708-442 BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND TWO NO. 17)
    BRACKET, ENGINE MOUNTING (LEFT) (INC. 16 AND TWO NO. 17)
  • 16
    0608-430 SPACER, TORQUE BUMPER
    SPACER, TORQUE BUMPER
  • 17
    1623-128 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 18
    0608-433 BUMPER, TORQUE
    BUMPER, TORQUE
  • 19
    8413-825 SCREW, CAP
    SCREW, CAP
  • 20
    0645-443 DAMPER, CLUTCH
    DAMPER, CLUTCH
  • 21
    0725-469 CLUTCH, DRIVE
    CLUTCH, DRIVE
  • 22
    0627-036 BELT, DRIVE
    BELT, DRIVE
  • 23
    0623-210 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 24
    0623-804 BOLT, CLUTCH
    BOLT, CLUTCH
  • 25
    8050-252 WASHER
    WASHER
  • 26
    0619-619 CONDUIT, FLEXIBLE, 4 IN.
    CONDUIT, FLEXIBLE, 4 IN.
  • 27
    0619-994 CONDUIT, FLEXIBLE (3/4 ID-6)
    CONDUIT, FLEXIBLE (3/4 ID-6)
