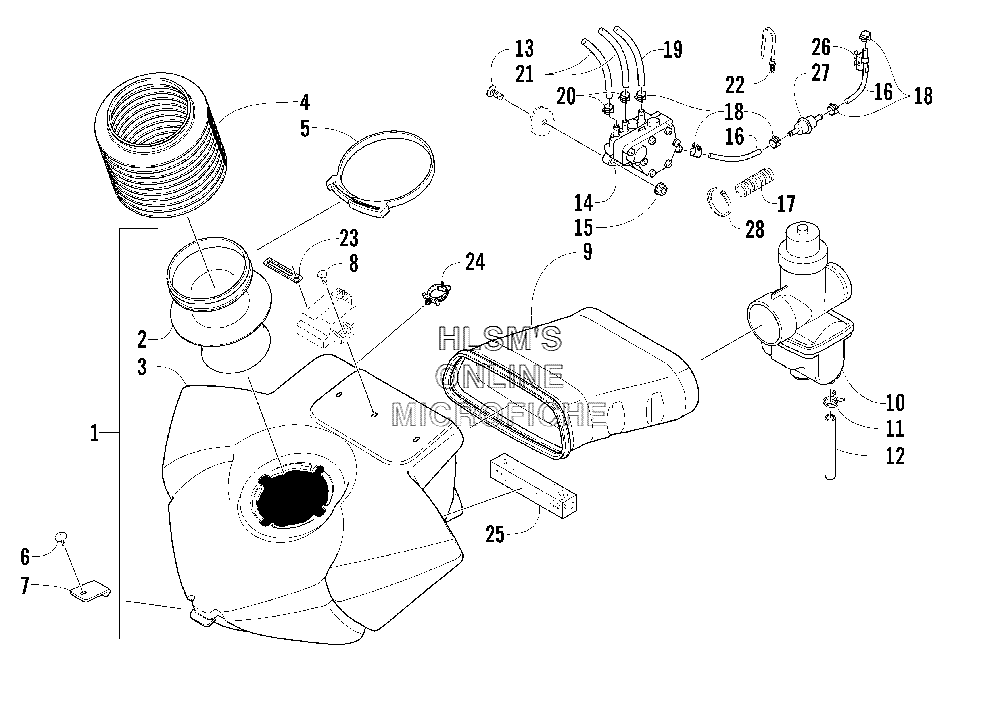

AIR SILENCER- CARBURETOR- AND FUEL PUMP ASSEMBLY для Arctic Cat M5 141'' (BLACK) - 2005 года выпуска`
-
№АртикулНазвание
-
10770-611 SILENCER, AIR, ASSY (INC. 2, 3)SILENCER, AIR, ASSY (INC. 2, 3)
-
21670-473 INTAKE, AIRINTAKE, AIR
-
31670-616 SILENCER, AIRSILENCER, AIR
-
41670-514 CONNECTOR, AIR, INTAKECONNECTOR, AIR, INTAKE
-
51623-132 CLAMP, AIR, INTAKE CONNECTORCLAMP, AIR, INTAKE CONNECTOR
-
61623-031 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
73606-146 HOLD, DOWN, AIR SILENCERHOLD, DOWN, AIR SILENCER
-
81623-204 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
91670-640 BOOT, AIR SILENCERBOOT, AIR SILENCER
-
100770-708 CARBURETOR VM34, 613CARBURETOR VM34, 613
-
110623-652 CLAMP, HOSECLAMP, HOSE
-
120610-442 HOSE, DRAINHOSE, DRAIN
-
138017-582 SCREW, MACHINESCREW, MACHINE
-
141670-537 PUMP, FUELPUMP, FUEL
-
158047-366 NUT, LOCKNUT, LOCK
-
160610-629 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
160610-628 HOSE, GASLINE (25 FT)HOSE, GASLINE (25 FT)
-
170716-507 PROTECTOR, HOSEPROTECTOR, HOSE
-
181623-234 CLAMP, HOSECLAMP, HOSE
-
190610-007 HOSE, IMPULSEHOSE, IMPULSE
-
201623-233 CLAMP, HOSECLAMP, HOSE
-
216101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
216101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
220623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
233002-964 CLAMP, WIRECLAMP, WIRE
-
241623-171 CLIP, SNAPCLIP, SNAP
-
250617-485 FOAM, AIR SILENCERFOAM, AIR SILENCER
-
261623-336 CLIP, HOSECLIP, HOSE
-
271670-166 FILTER, FUELFILTER, FUEL
-
280123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
