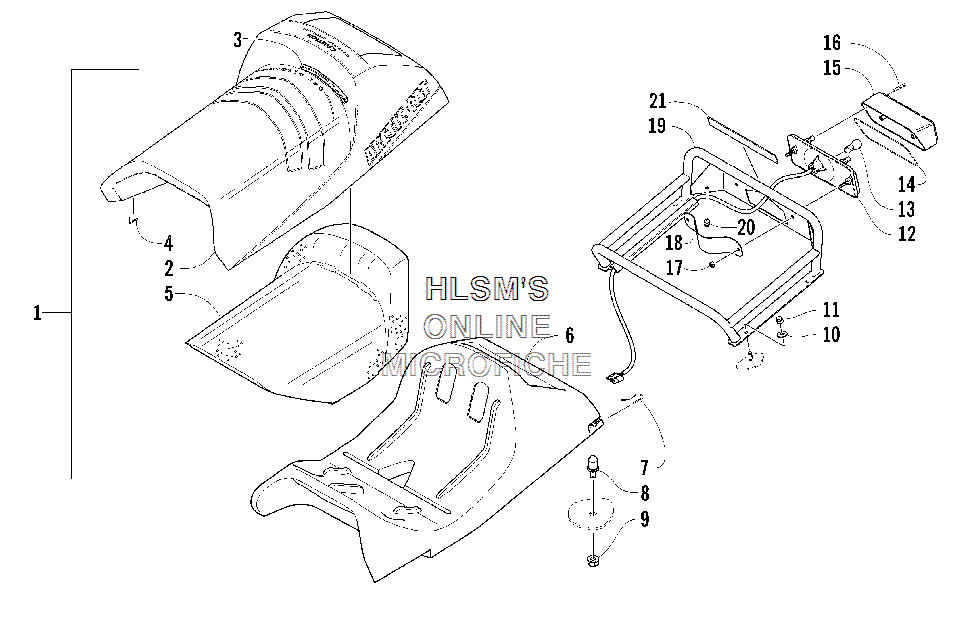

SEAT- RACK- AND TAILLIGHT ASSEMBLY для Arctic Cat King Cat 900 EFI EARLY BUILD - 2005 года выпуска`
-
№АртикулНазвание
-
17997-843 COMPLETE SEAT ASSEMBLY (INC. 2, 7)COMPLETE SEAT ASSEMBLY (INC. 2, 7)
-
22706-569 COVER, SEAT (INC. 3)COVER, SEAT (INC. 3)
-
33606-369 WIRE, SEATWIRE, SEAT
-
40624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
51706-909 FOAM, SEAT CUSHIONFOAM, SEAT CUSHION
-
63606-193 SEAT, BASE W/FOAMSEAT, BASE W/FOAM
-
71623-056 CLIP, RETAINING, SEAT, BASECLIP, RETAINING, SEAT, BASE
-
81623-198 STUD, LATCH, SEAT, BASESTUD, LATCH, SEAT, BASE
-
98048-426 NUT, LOCKNUT, LOCK
-
108050-217 WASHERWASHER
-
110123-108 NUT, CAPNUT, CAP
-
120609-091 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
130109-460 BULBBULB
-
140609-092 GASKET, TAILLIGHT LENSGASKET, TAILLIGHT LENS
-
150609-090 LENS, TAILLIGHTLENS, TAILLIGHT
-
160609-093 SCREW, RETAININGSCREW, RETAINING
-
170623-038 NUT W/WASHERNUT W/WASHER
-
182606-704 PLATE, PROTECTIVE, TAILLIGHTPLATE, PROTECTIVE, TAILLIGHT
-
191706-195 RACK, UNPAINTEDRACK, UNPAINTED
-
200623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
-
213611-107 DECAL, CAUTION, RACKDECAL, CAUTION, RACK
