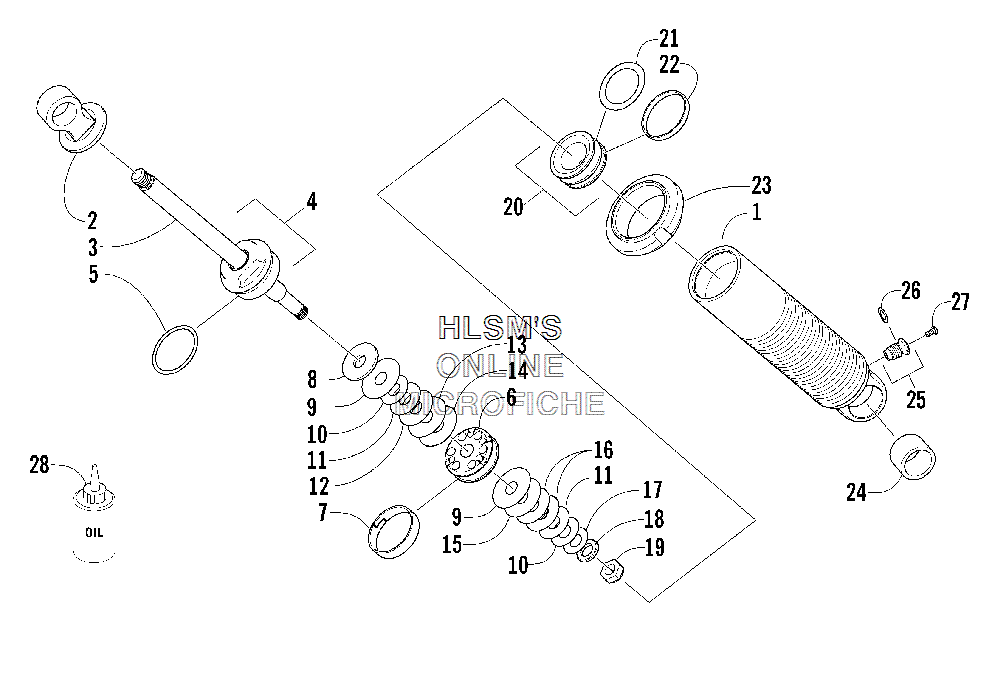

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat King Cat 900 EFI EARLY BUILD - 2005 года выпуска`
-
№АртикулНазвание
-
-1704-150 COMPLETE SHOCK ABSORBERCOMPLETE SHOCK ABSORBER
-
12604-169 BODY, SHOCKBODY, SHOCK
-
21604-825 EYELET, SHOCKEYELET, SHOCK
-
32604-155 ROD, SHOCKROD, SHOCK
-
41703-453 CAP, SHOCK (INC. 5)CAP, SHOCK (INC. 5)
-
51604-271 O-RINGO-RING
-
60603-952 PISTON, 0.059 IN., ORIFICEPISTON, 0.059 IN., ORIFICE
-
71604-274 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
81604-272 WASHER, TOP OUTWASHER, TOP OUT
-
92603-125 VALVE, 1.250 X 0.010 IN.VALVE, 1.250 X 0.010 IN.
-
102603-055 VALVE, 0.800 X 0.010 IN.VALVE, 0.800 X 0.010 IN.
-
112603-065 VALVE, 0.900 X 0.010 IN.VALVE, 0.900 X 0.010 IN.
-
122603-076 VALVE, 1.000 X 0.012 IN.VALVE, 1.000 X 0.012 IN.
-
132603-096 VALVE, 1.100 X 0.012 IN.VALVE, 1.100 X 0.012 IN.
-
142603-136 VALVE, 1.300 X 0.012 IN.VALVE, 1.300 X 0.012 IN.
-
152603-095 VALVE, 1.100 X 0.010 IN.VALVE, 1.100 X 0.010 IN.
-
162603-075 VALVE, 1.000 X 0.010 IN.VALVE, 1.000 X 0.010 IN.
-
172603-045 VALVE, 0.700 X 0.010 IN.VALVE, 0.700 X 0.010 IN.
-
181604-273 WASHER, BACKUPWASHER, BACKUP
-
190623-696 NUT, LOCKNUT, LOCK
-
200704-791 PISTON, BLEEDLESS, ASSEMBLY (INC. 21, 22)PISTON, BLEEDLESS, ASSEMBLY (INC. 21, 22)
-
212604-152 O-RINGO-RING
-
222604-153 STRAP, PISTON, TEFLONSTRAP, PISTON, TEFLON
-
231603-911 NUT, SPRING ADJUSTERNUT, SPRING ADJUSTER
-
241604-791 BUSHING, SHOCKBUSHING, SHOCK
-
252604-649 VALVE, PRESSURE (INC. 26)VALVE, PRESSURE (INC. 26)
-
262604-162 O-RING, VALVE(O-RING, VALVE(
-
270624-433 SCREW, MACHINESCREW, MACHINE
-
281639-245 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
