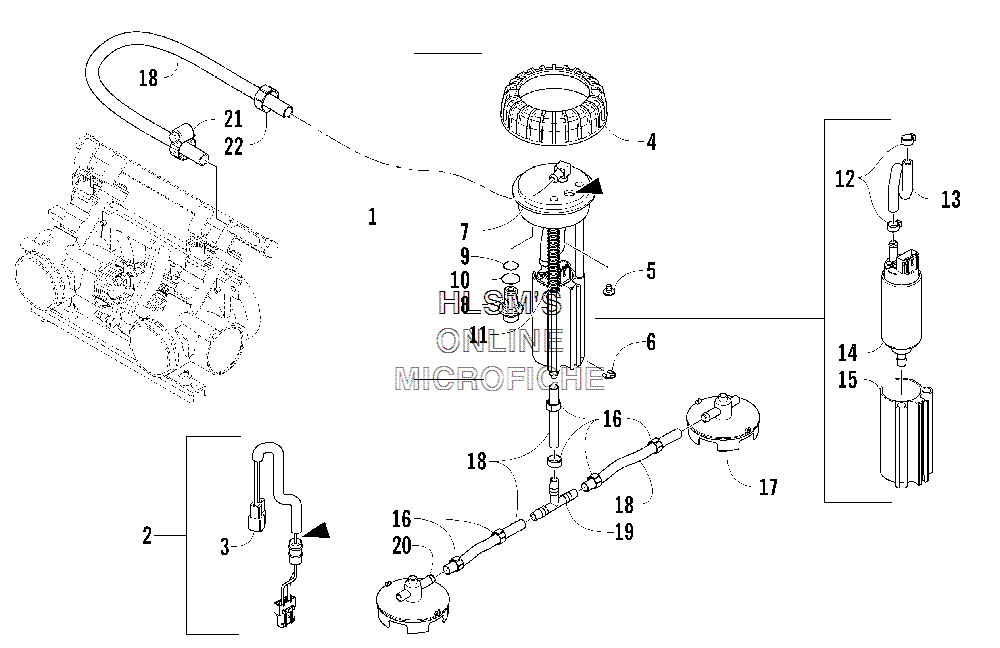

FUEL PUMP ASSEMBLY для Arctic Cat King Cat 900 EFI (BLACK) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-600 PUMP, FUEL, ASSEMBLY (INC. 2, 15)
    PUMP, FUEL, ASSEMBLY (INC. 2, 15)
  • 2
    1670-644 HARNESS, FUEL PUMP (INC. 3)
    HARNESS, FUEL PUMP (INC. 3)
  • 3
    0670-380 CONNECTOR, HARNESS
    CONNECTOR, HARNESS
  • 4
    1670-119 NUT, RETAINING, FUEL PUMP
    NUT, RETAINING, FUEL PUMP
  • 5
    1670-412 SCREW, MACHINE, HARNESS
    SCREW, MACHINE, HARNESS
  • 6
    1670-244 RING, RETAINING
    RING, RETAINING
  • 7
    1670-118 SEAL, FUEL PUMP HOUSING
    SEAL, FUEL PUMP HOUSING
  • 8
    1670-536 REGULATOR, FUEL PUMP
    REGULATOR, FUEL PUMP
  • 9
    1670-532 O-RING
    O-RING
  • 10
    1670-533 O-RING
    O-RING
  • 11
    1670-156 SPRING, FUEL PUMP ASSEMBLY
    SPRING, FUEL PUMP ASSEMBLY
  • 12
    1670-520 CLAMP, HOSE
    CLAMP, HOSE
  • 13
    1670-521 HOSE, FUEL PUMP, TOP
    HOSE, FUEL PUMP, TOP
  • 14
    1670-153 PUMP, FUEL
    PUMP, FUEL
  • 15
    1670-413 HOUSING, FUEL PUMP
    HOUSING, FUEL PUMP
  • 16
    0610-563 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    1670-618 PICKUP, FUEL
    PICKUP, FUEL
  • 18
    0610-075 HOSE, GASLINE (10 FT)
    HOSE, GASLINE (10 FT)
  • 19
    0670-235 T, FITTING
    T, FITTING
  • 20
    1670-619 PICKUP, FUEL
    PICKUP, FUEL
  • 21
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 22
    0610-419 CLAMP, HOSE
    CLAMP, HOSE
