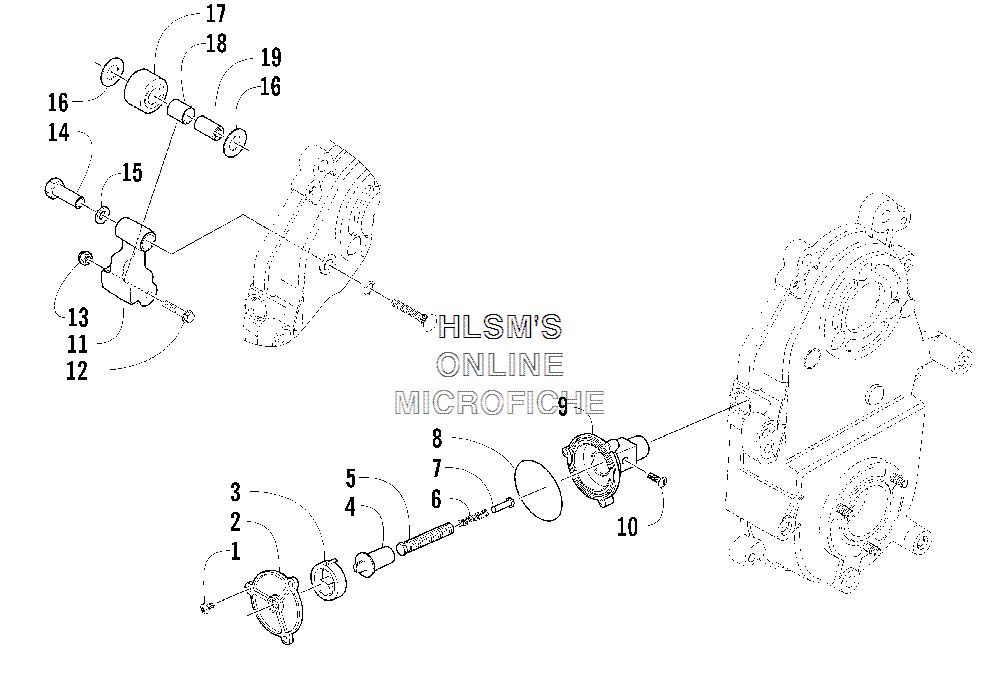

DROPCASE CHAIN TENSION ASSEMBLY (OPTIONAL) для Arctic Cat King Cat 900 EFI (BLACK) - 2005 года выпуска`
-
№АртикулНазвание
-
10623-526 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
20602-645 COVER, ADJUSTER HOUSINGCOVER, ADJUSTER HOUSING
-
30602-803 SPRING, POWER, ADJUSTER SHAFTSPRING, POWER, ADJUSTER SHAFT
-
41602-536 SHAFT, CHAIN ADJUSTERSHAFT, CHAIN ADJUSTER
-
50602-748 SCREW, CHAIN ADJUSTERSCREW, CHAIN ADJUSTER
-
60602-901 SPRING, COMPRESSIONSPRING, COMPRESSION
-
70602-804 RIVET, BUTTON HEADRIVET, BUTTON HEAD
-
80602-801 O-RING, COVER, CHAIN ADJUSTERO-RING, COVER, CHAIN ADJUSTER
-
90602-746 HOUSING, SCREW, CHAIN ADJUSTERHOUSING, SCREW, CHAIN ADJUSTER
-
100623-541 SCREW, MACHINESCREW, MACHINE
-
110602-675 ARM, CHAIN ROLLERARM, CHAIN ROLLER
-
128002-045 SCREW, CAPSCREW, CAP
-
130623-122 NUT, LOCKNUT, LOCK
-
140602-681 NUT, ROLLER ARMNUT, ROLLER ARM
-
158050-222 WASHERWASHER
-
160623-525 WASHERWASHER
-
170702-129 ROLLER, CHAIN TIGHTENER (INC. 18)ROLLER, CHAIN TIGHTENER (INC. 18)
-
180602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
190602-676 SHAFT, CHAIN ROLLERSHAFT, CHAIN ROLLER
