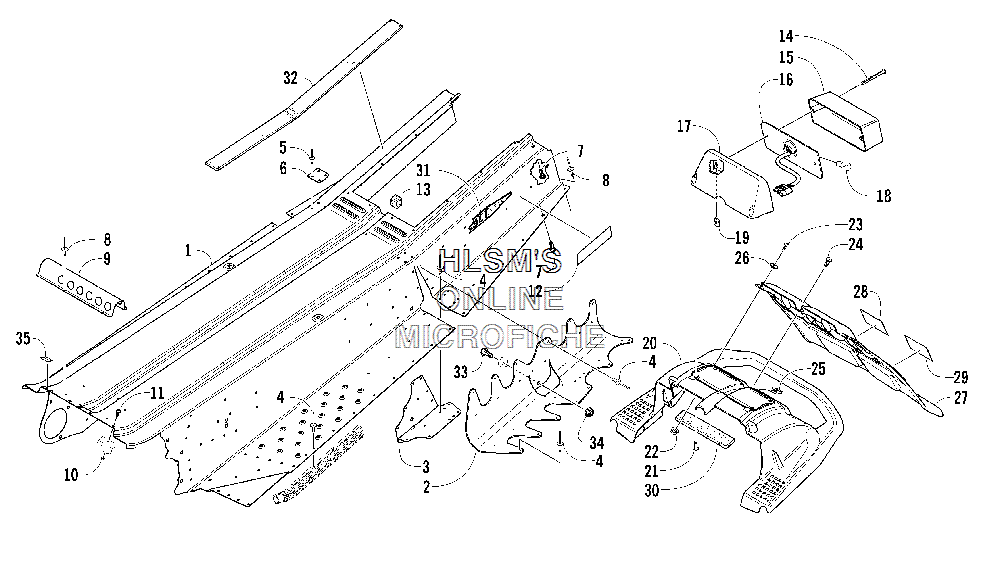

TUNNEL- REAR BUMPER- AND TAILLIGHT ASSEMBLY для Arctic Cat F7 Firecat EFI SNO PRO (ORANGE) - 2005 года выпуска`
-
№АртикулНазвание
-
11718-777 TUNNEL ASSEMBLY (INC. 2, 6)TUNNEL ASSEMBLY (INC. 2, 6)
-
23606-780 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
-
23606-781 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
-
32706-234 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
32706-235 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
40623-072 RIVETRIVET
-
40123-418 RIVETRIVET
-
40623-806 RIVETRIVET
-
48060-506 RIVETRIVET
-
58060-686 RIVETRIVET
-
63606-818 BRACKET, SUPPORTBRACKET, SUPPORT
-
71623-022 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
88060-484 RIVETRIVET
-
92606-938 PROTECTOR, WIRING HARNESSPROTECTOR, WIRING HARNESS
-
108040-246 NUT, LOCKNUT, LOCK
-
118017-399 SCREW, MACHINESCREW, MACHINE
-
120411-647 DECAL, REFLECTOR (RED)DECAL, REFLECTOR (RED)
-
130617-455 FOAM HEAT EXCHANGER (REAR)FOAM HEAT EXCHANGER (REAR)
-
140623-204 SCREW, MACHINESCREW, MACHINE
-
150609-229 LENS, TAILLIGHTLENS, TAILLIGHT
-
160609-230 TAILLIGHT W/SOCKET ASSEMBLYTAILLIGHT W/SOCKET ASSEMBLY
-
170609-624 HOUSING, TAILLIGHTHOUSING, TAILLIGHT
-
180109-460 BULB, TAILLIGHTBULB, TAILLIGHT
-
191623-023 NUT, SPEEDNUT, SPEED
-
203606-292 BUMPER (REAR)BUMPER (REAR)
-
211623-109 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
228048-366 NUT, LOCKNUT, LOCK
-
238017-581 SCREW, MACHINESCREW, MACHINE
-
248017-577 SCREW, MACHINESCREW, MACHINE
-
250623-363 NUT, SPEEDNUT, SPEED
-
261623-242 WASHERWASHER
-
273606-461 SNOWFLAP W/DECALS (INC. 28, 29)SNOWFLAP W/DECALS (INC. 28, 29)
-
285611-852 DECAL, WARNING, TOWING (FRENCH)DECAL, WARNING, TOWING (FRENCH)
-
295611-853 DECAL, WARNING, TOWING (ENGLISH)DECAL, WARNING, TOWING (ENGLISH)
-
300617-456 FOAM HEAT EXCHANGER (REAR)FOAM HEAT EXCHANGER (REAR)
-
316611-526 DECAL, TUNNELDECAL, TUNNEL
-
320617-495 FOAM, TUNNELFOAM, TUNNEL
-
338002-220 SCREW, CAPSCREW, CAP
-
348047-486 NUT, LOCKNUT, LOCK
-
352606-007 FOIL, PROTECTIVEFOIL, PROTECTIVE
