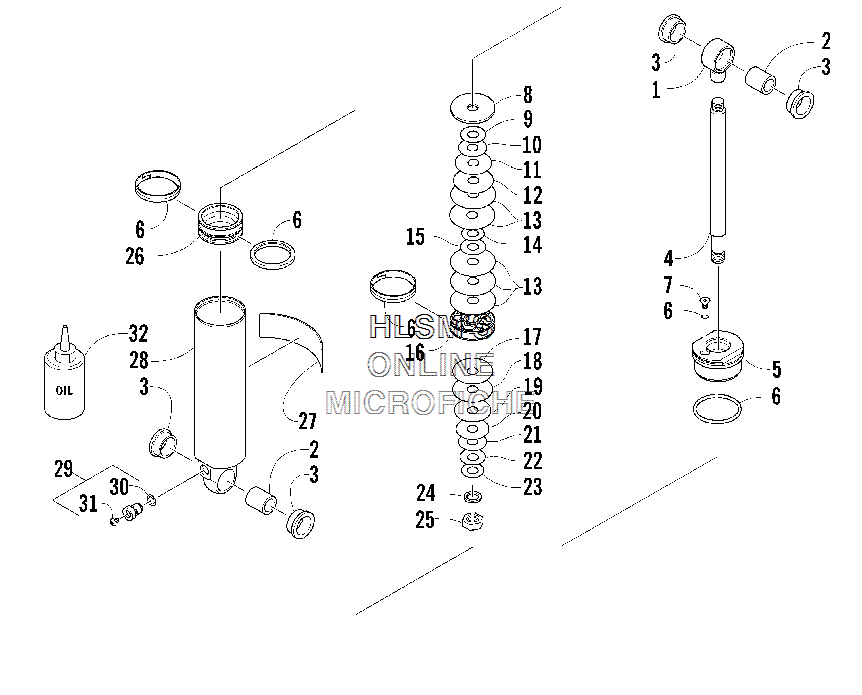

REAR SUSPENSION REAR ARM SHOCK ABSORBER для Arctic Cat F7 Firecat EFI SNO PRO (ORANGE) - 2005 года выпуска`
-
№АртикулНазвание
-
-1704-362 COMPLETE SHOCK ABSORBER ASSEMBLYCOMPLETE SHOCK ABSORBER ASSEMBLY
-
10604-893 EYELET, SHOCKEYELET, SHOCK
-
21604-222 BUSHING, SHOCKBUSHING, SHOCK
-
32604-223 SLEEVE, EYELETSLEEVE, EYELET
-
42604-622 ROD, SHOCKROD, SHOCK
-
52604-627 CAP, SHOCKCAP, SHOCK
-
62604-880 KIT, SEAL/REBUILDKIT, SEAL/REBUILD
-
72604-530 SCREWSCREW
-
82603-466 WASHER, TOP OUTWASHER, TOP OUT
-
90603-338 VALVE, SHOCK 0.900 X 0.010 IN.VALVE, SHOCK 0.900 X 0.010 IN.
-
100603-341 VALVE, SHOCK 1.000 X 0.010 IN.VALVE, SHOCK 1.000 X 0.010 IN.
-
110603-350 VALVE, SHOCK 1.300 X 0.010 IN.VALVE, SHOCK 1.300 X 0.010 IN.
-
122604-647 VALVE, SHOCK 1.425 X 0.010 IN.VALVE, SHOCK 1.425 X 0.010 IN.
-
132604-631 VALVE, SHOCK 1.600 X 0.010 IN.VALVE, SHOCK 1.600 X 0.010 IN.
-
140603-334 VALVE, SHOCK 0.800 X 0.008 IN.VALVE, SHOCK 0.800 X 0.008 IN.
-
150603-337 VALVE, SHOCK 0.900 X 0.008 IN.VALVE, SHOCK 0.900 X 0.008 IN.
-
162604-645 PISTON, 0.055 IN., ORIFICEPISTON, 0.055 IN., ORIFICE
-
172604-633 VALVE, SHOCK 1.425 X 0.015 IN.VALVE, SHOCK 1.425 X 0.015 IN.
-
182604-632 VALVE, SHOCK 1.425 X 0.012 IN.VALVE, SHOCK 1.425 X 0.012 IN.
-
190603-891 VALVE, SHOCK 1.300 X 0.012 IN.VALVE, SHOCK 1.300 X 0.012 IN.
-
200603-882 VALVE, SHOCK 1.100 X 0.012 IN.VALVE, SHOCK 1.100 X 0.012 IN.
-
210603-881 VALVE, SHOCK 1.000 X 0.012 IN.VALVE, SHOCK 1.000 X 0.012 IN.
-
220603-886 VALVE, SHOCK 0.900 X 0.015 IN.VALVE, SHOCK 0.900 X 0.015 IN.
-
230603-885 VALVE, SHOCK 0.800 X 0.015 IN.VALVE, SHOCK 0.800 X 0.015 IN.
-
240603-389 WASHER, BACKUPWASHER, BACKUP
-
250603-301 NUTNUT
-
262604-886 PISTON, FLOATINGPISTON, FLOATING
-
272604-889 DECAL, SHOCKDECAL, SHOCK
-
282604-621 BODY, SHOCKBODY, SHOCK
-
290703-341 VALVE, PRESSURE, ASSEMBLY (INC. 30)VALVE, PRESSURE, ASSEMBLY (INC. 30)
-
301604-318 O-RINGO-RING
-
310624-097 SCREW, MACHINESCREW, MACHINE
-
322639-149 OIL, GAS SHOCK, 6 QT CASEOIL, GAS SHOCK, 6 QT CASE
