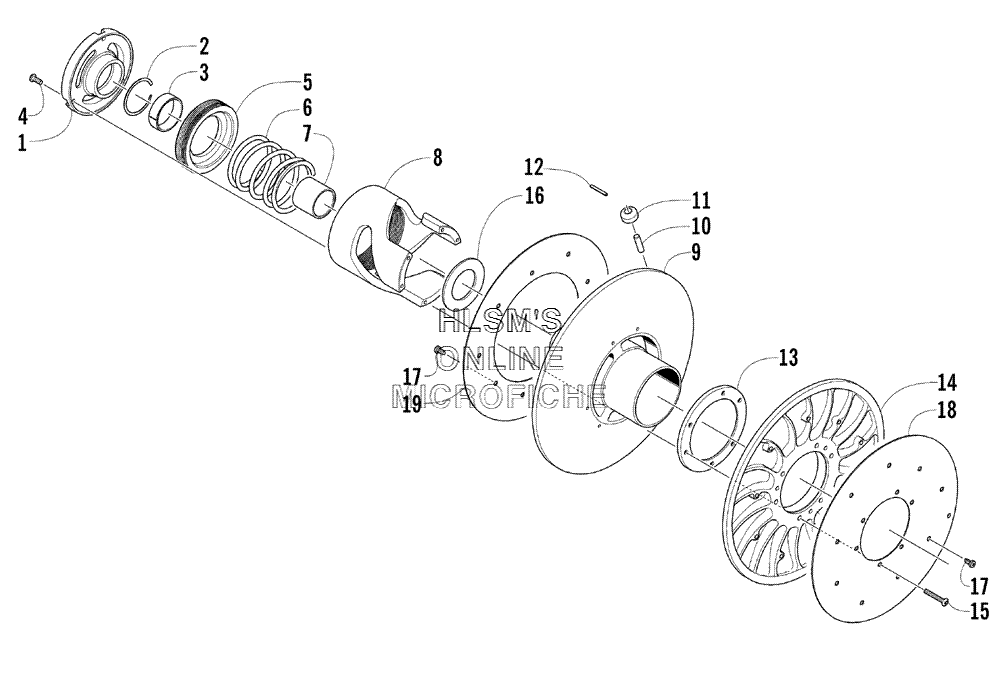

DRIVEN CLUTCH для Arctic Cat F5 Firecat (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • -
    0726-194 DRIVEN CLUTCH
    DRIVEN CLUTCH
  • 1
    0748-595 COVER, TORQUE BRACKET (INC. 2, 3)
    COVER, TORQUE BRACKET (INC. 2, 3)
  • 2
    0648-433 RING, SNAP
    RING, SNAP
  • 3
    0648-009 BEARING
    BEARING
  • 4
    1623-074 SCREW, MACHINE
    SCREW, MACHINE
  • 5
    0648-439 ADJUSTER, SPRING
    ADJUSTER, SPRING
  • 6
    0648-693 SPRING, DRIVEN CLUTCH (WHITE)
    SPRING, DRIVEN CLUTCH (WHITE)
  • 7
    0648-720 SPACER
    SPACER
  • 8
    0648-729 BRACKET, TORQUE 48°/42°
    BRACKET, TORQUE 48°/42°
  • 8
    0648-448 BRACKET, TORQUE 36° (OVER 5, 000 FT ALT.)
    BRACKET, TORQUE 36° (OVER 5, 000 FT ALT.)
  • 9
    0748-599 SHEAVE, STATIONARY (INC. 10, 12)
    SHEAVE, STATIONARY (INC. 10, 12)
  • 10
    0648-097 PIN, CAM ROLLER
    PIN, CAM ROLLER
  • 11
    0648-139 ROLLER, CAM
    ROLLER, CAM
  • 12
    8070-224 PIN, SPRING
    PIN, SPRING
  • 13
    0648-688 RETAINER, TORQUE BRACKET
    RETAINER, TORQUE BRACKET
  • 14
    0748-591 SHEAVE, MOVABLE
    SHEAVE, MOVABLE
  • 15
    1623-258 SCREW, MACHINE
    SCREW, MACHINE
  • 16
    0648-437 SEAT, SPRING
    SEAT, SPRING
  • 17
    0623-914 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 18
    0648-728 COVER, MOVABLE SHEAVE
    COVER, MOVABLE SHEAVE
