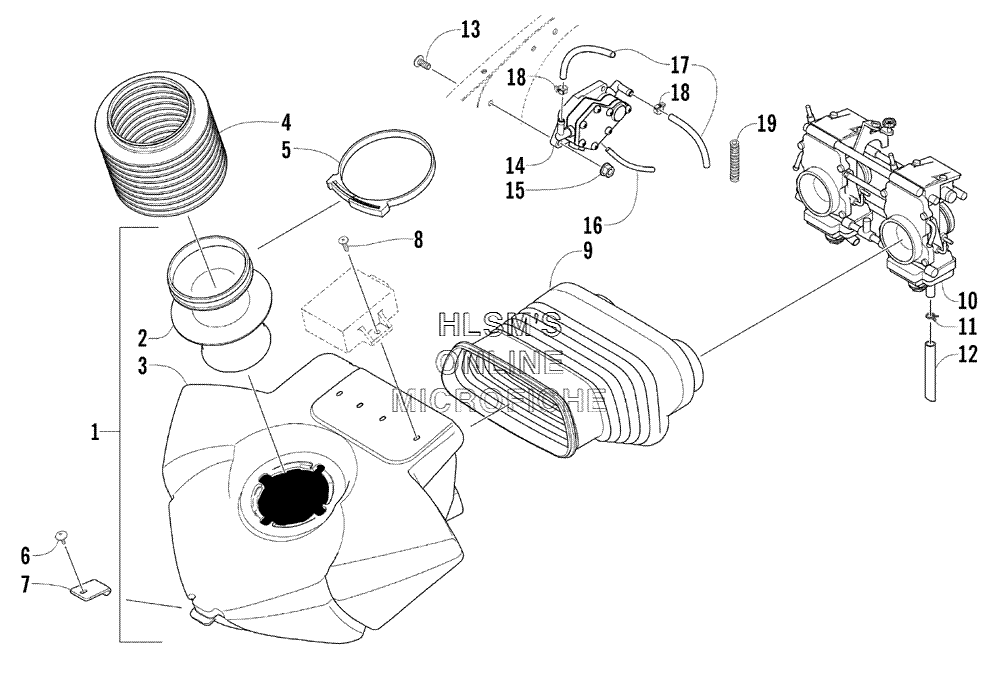

AIR SILENCER ASSEMBLY для Arctic Cat F5 Firecat (GREEN) - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0770-611 SILENCER, AIR, ASSY (INC. 2, 3)
    SILENCER, AIR, ASSY (INC. 2, 3)
  • 2
    1670-473 INTAKE, AIR
    INTAKE, AIR
  • 3
    1670-616 SILENCER, AIR
    SILENCER, AIR
  • 4
    1670-514 CONNECTOR, AIR, INTAKE
    CONNECTOR, AIR, INTAKE
  • 5
    1623-132 CLAMP, AIR, INTAKE CONNECTOR
    CLAMP, AIR, INTAKE CONNECTOR
  • 6
    1623-031 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 7
    3606-146 HOLD, DOWN, AIR SILENCER
    HOLD, DOWN, AIR SILENCER
  • 8
    1623-204 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    1670-582 BOOT, AIR SILENCER
    BOOT, AIR SILENCER
  • 10
    1670-569 CARBURETOR, TM38, B379
    CARBURETOR, TM38, B379
  • 11
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 12
    0610-442 HOSE, DRAIN
    HOSE, DRAIN
  • 13
    8017-582 SCREW, MACHINE
    SCREW, MACHINE
  • 14
    1670-416 PUMP, FUEL
    PUMP, FUEL
  • 15
    8048-366 NUT, LOCK
    NUT, LOCK
  • 16
    0610-007 HOSE, IMPULSE
    HOSE, IMPULSE
  • 17
    0610-015 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 17
    0610-016 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 18
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 19
    0716-558 LOOM, PROTECTIVE (10 FT)
    LOOM, PROTECTIVE (10 FT)
