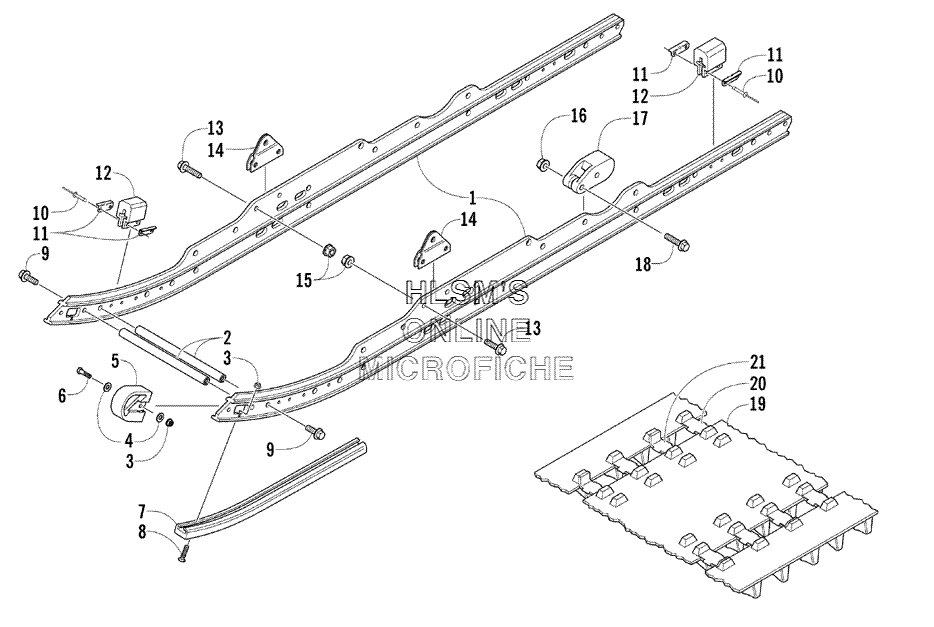

SLIDE RAIL AND TRACK ASSEMBLY для Arctic Cat Bearcat Wide Track INTERNATIONAL - 2005 года выпуска`
-
№АртикулНазвание
-
-7998-332 SKID FRAME ASSEMBLYSKID FRAME ASSEMBLY
-
11604-985 RAIL, FORMEDRAIL, FORMED
-
20604-938 SUPPORT, RAILSUPPORT, RAIL
-
38047-366 NUT, LOCKNUT, LOCK
-
48050-217 WASHERWASHER
-
51604-137 END CAP, SLIDE RAILEND CAP, SLIDE RAIL
-
68002-043 SCREW, CAPSCREW, CAP
-
71604-461 WEARSTRIP, SLIDE RAILWEARSTRIP, SLIDE RAIL
-
80123-859 SCREW, MACHINESCREW, MACHINE
-
98020-132 SCREW, CAPSCREW, CAP
-
108060-633 RIVETRIVET
-
110604-967 BRACKET, RETAININGBRACKET, RETAINING
-
120604-918 PAD, SHOCKPAD, SHOCK
-
138020-131 SCREW, CAPSCREW, CAP
-
140704-395 BRACKET, MOUNTING ARM (FRONT)BRACKET, MOUNTING ARM (FRONT)
-
158048-426 NUT, LOCKNUT, LOCK
-
168048-486 NUT, LOCKNUT, LOCK
-
171604-413 BLOCK, SPRING TENSIONBLOCK, SPRING TENSION
-
188020-227 SCREW, CAPSCREW, CAP
-
190602-962 TRACK ASSEMBLY (INC. 20, 21)TRACK ASSEMBLY (INC. 20, 21)
-
200602-541 CLIP, WEARCLIP, WEAR
-
210602-488 CLIP, GUIDECLIP, GUIDE
