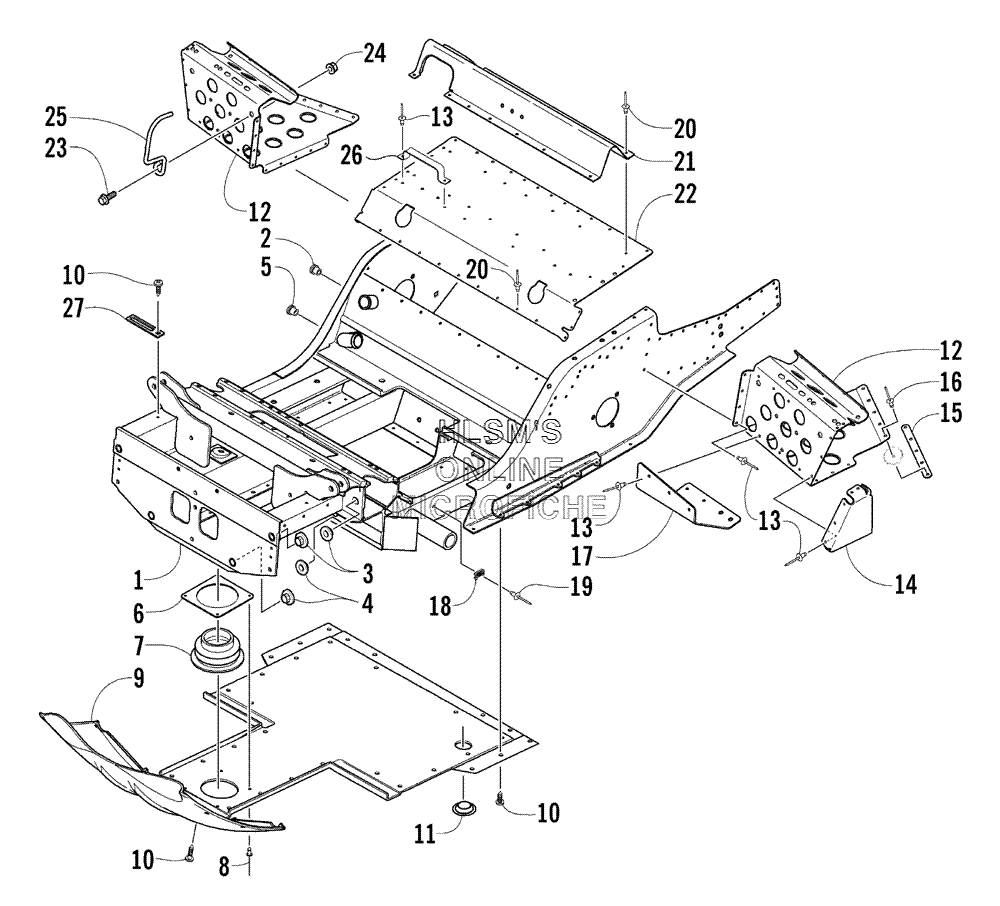

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Bearcat Wide Track INTERNATIONAL - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-733 CHASSIS ASSEMBLY (INC. 2, 5)
    CHASSIS ASSEMBLY (INC. 2, 5)
  • 2
    0623-581 INSERT
    INSERT
  • 3
    0607-421 INSERT A, ARM MOUNT (UPPER)
    INSERT A, ARM MOUNT (UPPER)
  • 4
    0607-420 INSERT A, ARM MOUNT (LOWER)
    INSERT A, ARM MOUNT (LOWER)
  • 5
    0623-582 INSERT
    INSERT
  • 6
    0712-952 RING, EXHAUST OUTLET
    RING, EXHAUST OUTLET
  • 7
    1612-027 BOOT, EXHAUST
    BOOT, EXHAUST
  • 8
    8060-508 RIVET
    RIVET
  • 9
    2706-028 BELLY PAN, CENTER
    BELLY PAN, CENTER
  • 10
    0623-784 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 11
    2606-367 PLUG, OIL DRAIN ACCESS
    PLUG, OIL DRAIN ACCESS
  • 12
    2706-270 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 12
    2706-271 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 13
    0623-166 RIVET
    RIVET
  • 14
    0707-746 BRACKET, FOOTREST (RIGHT)
    BRACKET, FOOTREST (RIGHT)
  • 14
    0707-745 BRACKET, FOOTREST (LEFT)
    BRACKET, FOOTREST (LEFT)
  • 15
    2706-110 PLATE, BACKING, FOOTREST
    PLATE, BACKING, FOOTREST
  • 16
    0623-282 RIVET
    RIVET
  • 17
    0707-748 PLATE, BACKING, FOOTREST (RIGHT)
    PLATE, BACKING, FOOTREST (RIGHT)
  • 17
    0707-747 PLATE, BACKING, FOOTREST (LEFT)
    PLATE, BACKING, FOOTREST (LEFT)
  • 18
    0623-228 MOUNT, CABLE TIE
    MOUNT, CABLE TIE
  • 19
    8060-506 RIVET
    RIVET
  • 20
    0123-418 RIVET
    RIVET
  • 21
    0707-749 SUPPORT, GAS TANK
    SUPPORT, GAS TANK
  • 22
    2706-272 COVER (FRONT)
    COVER (FRONT)
  • 23
    8020-040 SCREW, CAP
    SCREW, CAP
  • 24
    8048-366 NUT, LOCK
    NUT, LOCK
  • 25
    0745-200 BRACKET, HARNESS
    BRACKET, HARNESS
  • 26
    0707-710 BRACKET, HOLD, DOWN
    BRACKET, HOLD, DOWN
  • 27
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
