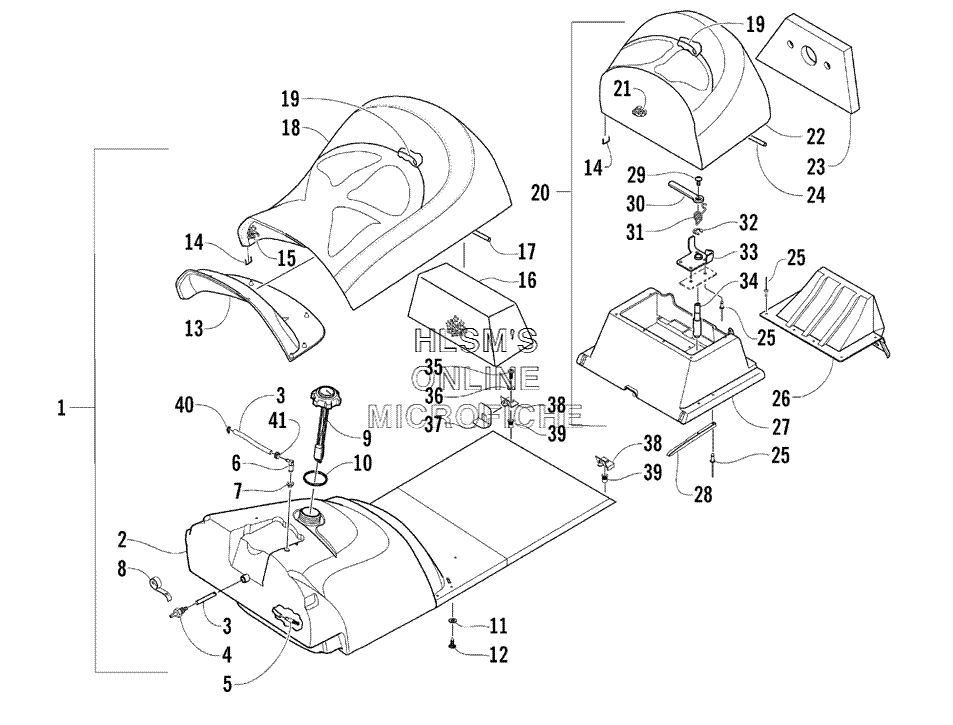

GAS TANK AND SEAT ASSEMBLY для Arctic Cat Bearcat 570 - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-754 COMPLETE SEAT ASSEMBLY (INC. 2, 18 AND ONE NO. 19)
    COMPLETE SEAT ASSEMBLY (INC. 2, 18 AND ONE NO. 19)
  • 2
    0770-692 TANK, GAS/SEAT, BASE (INC. 3, 10)
    TANK, GAS/SEAT, BASE (INC. 3, 10)
  • 3
    6101-001 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 3
    6101-009 HOSE, GASLINE (25 FT)
    HOSE, GASLINE (25 FT)
  • 4
    1670-173 OUTLET, TANK
    OUTLET, TANK
  • 5
    0510-358 STRAINER, GAS TANK
    STRAINER, GAS TANK
  • 6
    1670-494 VENT, GAS TANK
    VENT, GAS TANK
  • 7
    1670-325 GROMMET
    GROMMET
  • 8
    0670-289 TAPE, TEFLON
    TAPE, TEFLON
  • 9
    0670-658 CAP, GAS TANK WITH GAUGE (INC. 10)
    CAP, GAS TANK WITH GAUGE (INC. 10)
  • 10
    0109-733 SEAL, TANK CAP
    SEAL, TANK CAP
  • 11
    8050-217 WASHER
    WASHER
  • 12
    0623-309 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 13
    1606-612 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 14
    0624-528 STAPLE, SEAT COVER
    STAPLE, SEAT COVER
  • 15
    2706-611 FOAM, SEAT CUSHION (FRONT)
    FOAM, SEAT CUSHION (FRONT)
  • 16
    2606-133 INSERT, SEAT FOAM
    INSERT, SEAT FOAM
  • 17
    2606-943 WIRE, SEAT
    WIRE, SEAT
  • 18
    2706-673 COVER, SEAT (FRONT) (INC. ONE NO. 19)
    COVER, SEAT (FRONT) (INC. ONE NO. 19)
  • 19
    3606-363 WIRE, SEAT
    WIRE, SEAT
  • 20
    1718-755 COMPLETE SEAT ASSEMBLY, PASSENGER (INC. 14, ONE NO. 19, AND 21, 34)
    COMPLETE SEAT ASSEMBLY, PASSENGER (INC. 14, ONE NO. 19, AND 21, 34)
  • 21
    1706-159 FOAM, SEAT, PASSENGER
    FOAM, SEAT, PASSENGER
  • 22
    2706-674 COVER, SEAT, PASSENGER (INC. ONE NO. 19)
    COVER, SEAT, PASSENGER (INC. ONE NO. 19)
  • 23
    0617-098 FOAM, SEAT, BASE/TAILLIGHT
    FOAM, SEAT, BASE/TAILLIGHT
  • 24
    2606-942 WIRE, SEAT
    WIRE, SEAT
  • 25
    0623-853 RIVET
    RIVET
  • 26
    1606-191 EXTENSION, TOOLBOX
    EXTENSION, TOOLBOX
  • 27
    3606-238 SEAT, BASE, PASSENGER
    SEAT, BASE, PASSENGER
  • 28
    2606-188 BRACKET, HOLD, DOWN, SEAT (RIGHT)
    BRACKET, HOLD, DOWN, SEAT (RIGHT)
  • 28
    2606-189 BRACKET, HOLD, DOWN, SEAT (LEFT)
    BRACKET, HOLD, DOWN, SEAT (LEFT)
  • 29
    8017-397 SCREW, MACHINE
    SCREW, MACHINE
  • 30
    3606-171 LEVER, SEAT LATCH
    LEVER, SEAT LATCH
  • 31
    0623-610 SPRING, LEVER
    SPRING, LEVER
  • 32
    0602-051 E, RING
    E, RING
  • 33
    2706-535 BRACKET, SEAT LATCH
    BRACKET, SEAT LATCH
  • 34
    3606-172 STUD, LATCH
    STUD, LATCH
  • 35
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 36
    8050-222 WASHER
    WASHER
  • 37
    2606-268 GUARD, SEAT (RIGHT)
    GUARD, SEAT (RIGHT)
  • 37
    2606-269 GUARD, SEAT (LEFT)
    GUARD, SEAT (LEFT)
  • 38
    2706-134 BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
    BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
  • 38
    2706-135 BRACKET, HOLD, DOWN, RECEIVER (LEFT)
    BRACKET, HOLD, DOWN, RECEIVER (LEFT)
  • 39
    0623-582 INSERT
    INSERT
  • 40
    0623-101 CLIP, ROUTING, SNAP, INNER
    CLIP, ROUTING, SNAP, INNER
  • 41
    1623-233 CLAMP, HOSE
    CLAMP, HOSE
