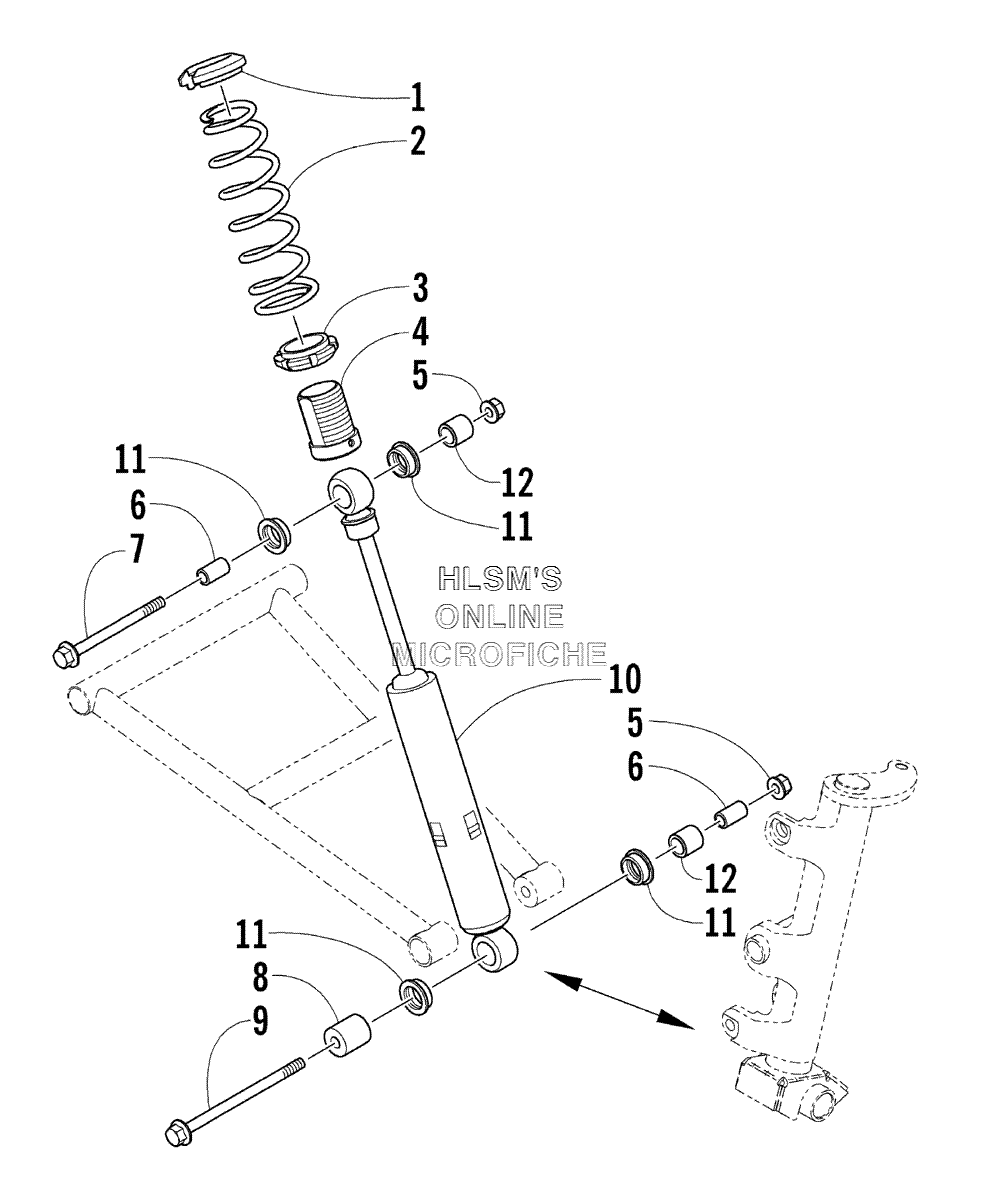

FRONT SUSPENSION SHOCK ABSORBER ASSEMBLY для Arctic Cat Bearcat 570 - 2005 года выпуска`
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
21703-457 SPRING, COMPRESSIONSPRING, COMPRESSION
-
30603-259 NUT, RETAININGNUT, RETAINING
-
40603-147 SLEEVE, SHOCKSLEEVE, SHOCK
-
58048-486 NUT, LOCKNUT, LOCK
-
61603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
78020-226 SCREW, CAPSCREW, CAP
-
80603-648 SPACER, SHOCKSPACER, SHOCK
-
98020-232 SCREW, CAPSCREW, CAP
-
101603-910 SHOCK SUSPENSION (FRONT) (INC. 11, 12)SHOCK SUSPENSION (FRONT) (INC. 11, 12)
-
110603-955 BUSHING, SHOCKBUSHING, SHOCK
-
121603-209 SLEEVE, SHOCKSLEEVE, SHOCK
