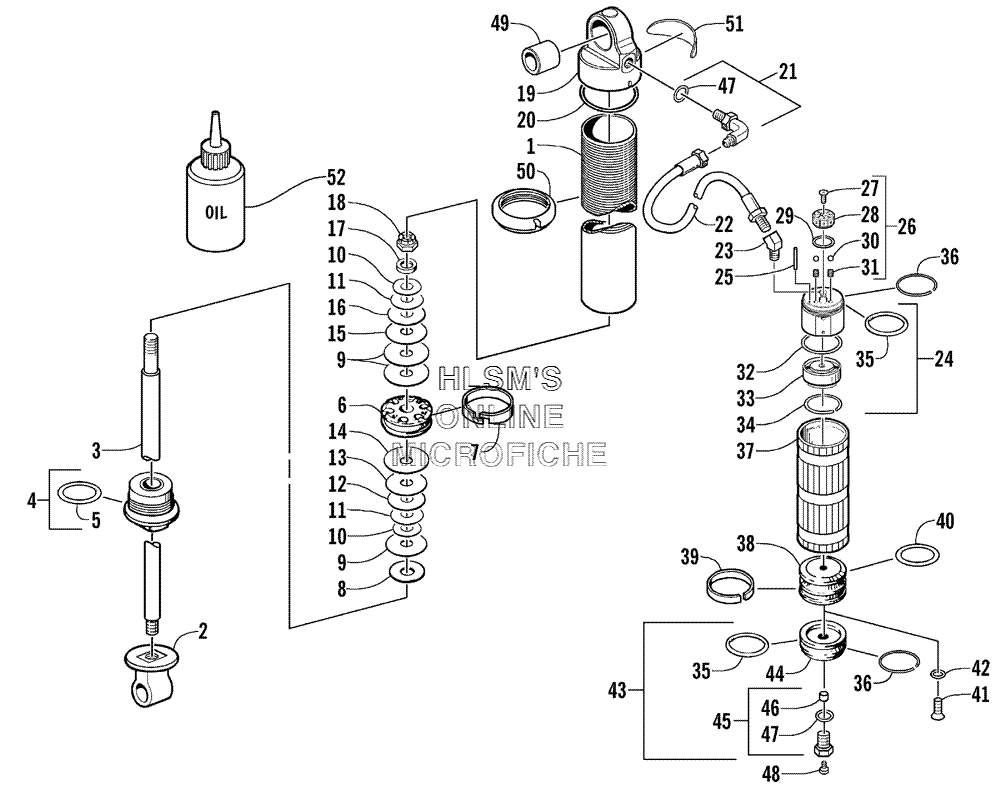

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat ZR 900 Sno Pro (Black-Green) - 2004 года выпуска

  • №
    Артикул
    Название
  • -
    0704-635 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    1603-318 BODY, SHOCK
    BODY, SHOCK
  • 2
    1604-796 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    1603-319 ROD, SHOCK
    ROD, SHOCK
  • 4
    0704-386 END CAP, SHOCK (INC. 5)
    END CAP, SHOCK (INC. 5)
  • 5
    1604-271 O-RING
    O-RING
  • 6
    0603-952 PISTON, 0.059 IN., ORIFICE
    PISTON, 0.059 IN., ORIFICE
  • 7
    1604-274 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 8
    1604-272 WASHER, TOP OUT
    WASHER, TOP OUT
  • 9
    1603-125 VALVE, 1.250 X 0.010 IN.
    VALVE, 1.250 X 0.010 IN.
  • 10
    1603-055 VALVE, 0.800 X 0.010 IN.
    VALVE, 0.800 X 0.010 IN.
  • 11
    1603-065 VALVE, 0.900 X 0.010 IN.
    VALVE, 0.900 X 0.010 IN.
  • 12
    1603-076 VALVE, 1.000 X 0.012 IN.
    VALVE, 1.000 X 0.012 IN.
  • 13
    1603-096 VALVE, 1.100 X 0.012 IN.
    VALVE, 1.100 X 0.012 IN.
  • 14
    1603-136 VALVE, 1.300 X 0.012 IN.
    VALVE, 1.300 X 0.012 IN.
  • 15
    1603-095 VALVE, 1.100 X 0.010 IN.
    VALVE, 1.100 X 0.010 IN.
  • 16
    1603-075 VALVE, 1.000 X 0.010 IN.
    VALVE, 1.000 X 0.010 IN.
  • 17
    1604-273 WASHER, BACKUP
    WASHER, BACKUP
  • 18
    0623-696 NUT, LOCK
    NUT, LOCK
  • 19
    1604-294 END CAP, SHOCK
    END CAP, SHOCK
  • 20
    1604-280 O-RING
    O-RING
  • 21
    1604-533 FITTING, ELBOW (INC. ONE NO. 47)
    FITTING, ELBOW (INC. ONE NO. 47)
  • 22
    1604-532 HOSE, RESERVOIR/SHOCK
    HOSE, RESERVOIR/SHOCK
  • 23
    1604-534 FITTING, ELBOW, 45
    FITTING, ELBOW, 45
  • 24
    0703-541 END CAP, RESERVOIR BODY (INC. 25, 34 AND ONE NO. 35)
    END CAP, RESERVOIR BODY (INC. 25, 34 AND ONE NO. 35)
  • 25
    1603-406 PIN, INNERDICATOR KNOB
    PIN, INNERDICATOR KNOB
  • 26
    1703-001 KNOB, ADJUSTER, ASSY. (INC. 27, 31)
    KNOB, ADJUSTER, ASSY. (INC. 27, 31)
  • 27
    0603-977 SCREW, MACHINE
    SCREW, MACHINE
  • 28
    0603-976 KNOB, ADJUSTER
    KNOB, ADJUSTER
  • 29
    0603-975 O-RING
    O-RING
  • 30
    0603-974 BALL, DETENT
    BALL, DETENT
  • 31
    0603-973 SPRING
    SPRING
  • 32
    0603-970 O-RING
    O-RING
  • 33
    0703-542 OIL RELIEF, 2, PORT, ASSY.
    OIL RELIEF, 2, PORT, ASSY.
  • 34
    0603-984 RETAINER
    RETAINER
  • 35
    0603-968 O-RING
    O-RING
  • 36
    0603-985 RETAINER, END CAP
    RETAINER, END CAP
  • 37
    1603-315 BODY, RESERVOIR
    BODY, RESERVOIR
  • 38
    0603-986 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 39
    0603-988 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 40
    0603-987 O-RING
    O-RING
  • 41
    0623-697 SCREW, PISTON
    SCREW, PISTON
  • 42
    0423-182 O-RING
    O-RING
  • 43
    0703-540 END CAP, RESERVOIR, ASSY. (INC. ONE NO. 35 AND 44, 47)
    END CAP, RESERVOIR, ASSY. (INC. ONE NO. 35 AND 44, 47)
  • 44
    0603-989 END CAP, RESERVOIR BODY
    END CAP, RESERVOIR BODY
  • 45
    0704-383 VALVE, PRESSURE, ASSY. (INC. 46 AND ONE NO. 47)
    VALVE, PRESSURE, ASSY. (INC. 46 AND ONE NO. 47)
  • 47
    1604-284 O-RING, VALVE
    O-RING, VALVE
  • 48
    0624-433 SCREW, MACHINE
    SCREW, MACHINE
  • 49
    1604-791 BUSHING, SHOCK
    BUSHING, SHOCK
  • 50
    0603-960 NUT, ADJUSTER, SHOCK
    NUT, ADJUSTER, SHOCK
  • 51
    3611-007 DECAL, WARNING
    DECAL, WARNING
  • 52
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
