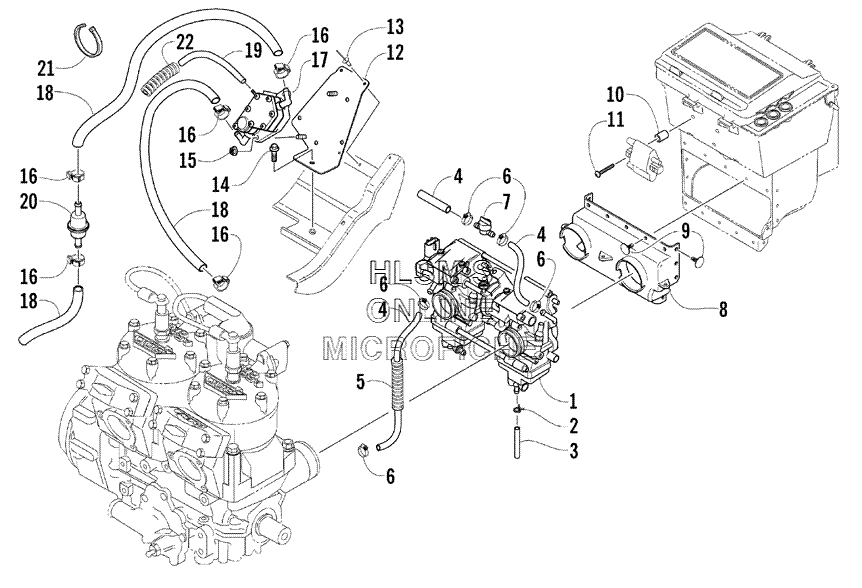

CARBURETOR AND FUEL PUMP ASSY. для Arctic Cat ZR 900 Sno Pro (Black-Green) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1670-570 CARBURETOR, TM40, B283
    CARBURETOR, TM40, B283
  • 2
    0623-652 CLAMP, HOSE
    CLAMP, HOSE
  • 3
    0610-442 HOSE, DRAIN
    HOSE, DRAIN
  • 4
    0610-513 HOSE, COOLANT (25 FT)
    HOSE, COOLANT (25 FT)
  • 5
    0619-776 CONDUIT, FLEXIBLE (5 FT)
    CONDUIT, FLEXIBLE (5 FT)
  • 6
    0623-373 CLAMP, HOSE
    CLAMP, HOSE
  • 7
    1670-111 VALVE, SHUT, OFF
    VALVE, SHUT, OFF
  • 8
    1670-306 BOOT, CARBURETOR
    BOOT, CARBURETOR
  • 9
    0623-165 CLIP, RETAINING
    CLIP, RETAINING
  • 10
    1623-045 SPACER
    SPACER
  • 11
    8017-406 SCREW, MACHINE
    SCREW, MACHINE
  • 12
    0770-497 PLATE, MOUNTING, FUEL PUMP
    PLATE, MOUNTING, FUEL PUMP
  • 13
    0623-149 RIVET
    RIVET
  • 14
    8020-040 SCREW, CAP
    SCREW, CAP
  • 15
    8048-366 NUT W/WASHER
    NUT W/WASHER
  • 16
    0124-045 CLAMP, HOSE
    CLAMP, HOSE
  • 17
    1670-161 PUMP, FUEL
    PUMP, FUEL
  • 18
    6101-001 HOSE, GASLINE (100 FT)
    HOSE, GASLINE (100 FT)
  • 18
    6101-009 HOSE, GASLINE (50 FT)
    HOSE, GASLINE (50 FT)
  • 19
    0610-007 HOSE, IMPULSE (25 FT)
    HOSE, IMPULSE (25 FT)
  • 20
    1670-166 FILTER, FUEL
    FILTER, FUEL
  • 21
    0123-811 CABLE TIE, 4 IN.
    CABLE TIE, 4 IN.
  • 22
    0716-558 CONDUIT, FLEXIBLE (10 FT)
    CONDUIT, FLEXIBLE (10 FT)
