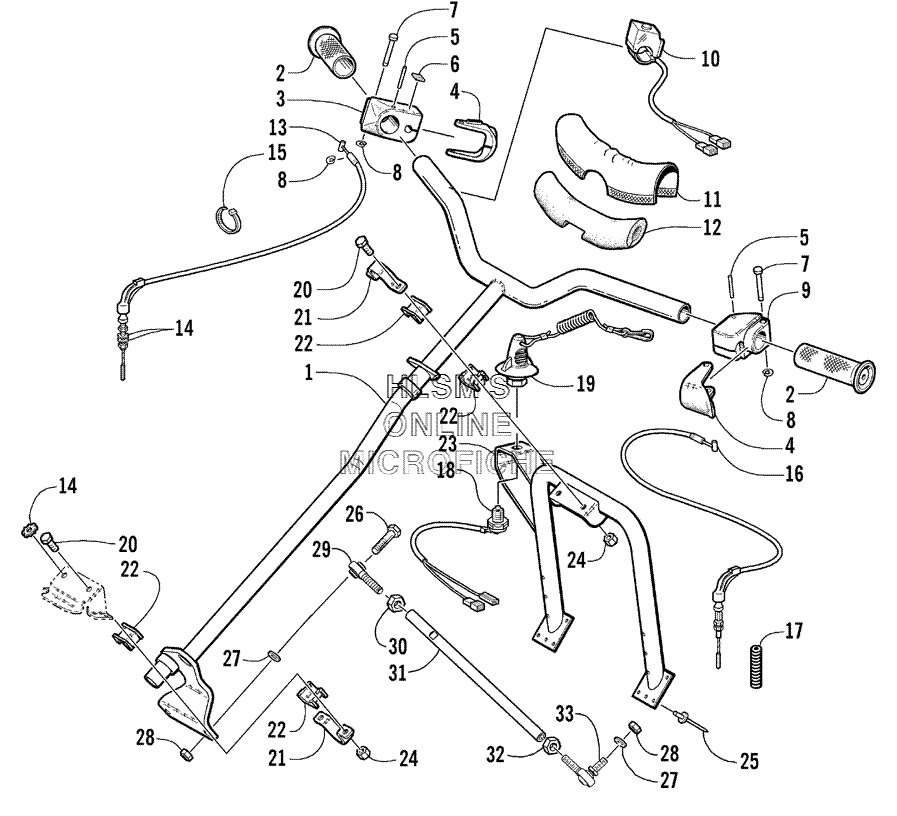

STEERING POST AND TIE ROD ASSY. для Arctic Cat ZR 120 - 2004 года выпуска`
-
№АртикулНазвание
-
10703-693 POST, STEERINGPOST, STEERING
-
21606-765 GRIP, HANDLEGRIP, HANDLE
-
30302-165 CONTROL, THROTTLECONTROL, THROTTLE
-
40109-609 LEVER, THROTTLE/BRAKELEVER, THROTTLE/BRAKE
-
58070-318 PIN, SPRINGPIN, SPRING
-
60611-022 DECAL, ENGINE STOP SWITCHDECAL, ENGINE STOP SWITCH
-
70123-230 PINPIN
-
80123-231 RING, RETAININGRING, RETAINING
-
90302-147 HOUSING, BRAKEHOUSING, BRAKE
-
100609-007 SWITCH, ENGINE STOPSWITCH, ENGINE STOP
-
110605-502 COVER, HANDLEBAR PADCOVER, HANDLEBAR PAD
-
120605-501 PAD, HANDLEBARPAD, HANDLEBAR
-
130687-121 CABLE, THROTTLECABLE, THROTTLE
-
148053-212 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
150123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
160687-122 CABLE, BRAKECABLE, BRAKE
-
171602-100 SPRING, RETURN, BRAKESPRING, RETURN, BRAKE
-
180630-138 SWITCH, TETHER, ASSY. (INC. 19)SWITCH, TETHER, ASSY. (INC. 19)
-
190630-139 CORD, TETHER SWITCHCORD, TETHER SWITCH
-
208002-040 SCREW, CAPSCREW, CAP
-
210705-896 RETAINER, BEARINGRETAINER, BEARING
-
220605-444 BEARING, STEERING POSTBEARING, STEERING POST
-
231706-050 SUPPORT, STEERING POSTSUPPORT, STEERING POST
-
248040-366 NUT, LOCKNUT, LOCK
-
258060-504 RIVETRIVET
-
268004-226 SCREW, CAPSCREW, CAP
-
270623-044 WASHERWASHER
-
280623-025 NUT, LOCKNUT, LOCK
-
290605-504 ROD END (RIGHT)ROD END (RIGHT)
-
300123-191 NUT, HEX (RIGHT)NUT, HEX (RIGHT)
-
310605-698 TUBE, TIE RODTUBE, TIE ROD
-
320123-917 NUT, HEX (LEFT)NUT, HEX (LEFT)
-
330605-511 ROD END (LEFT)ROD END (LEFT)
