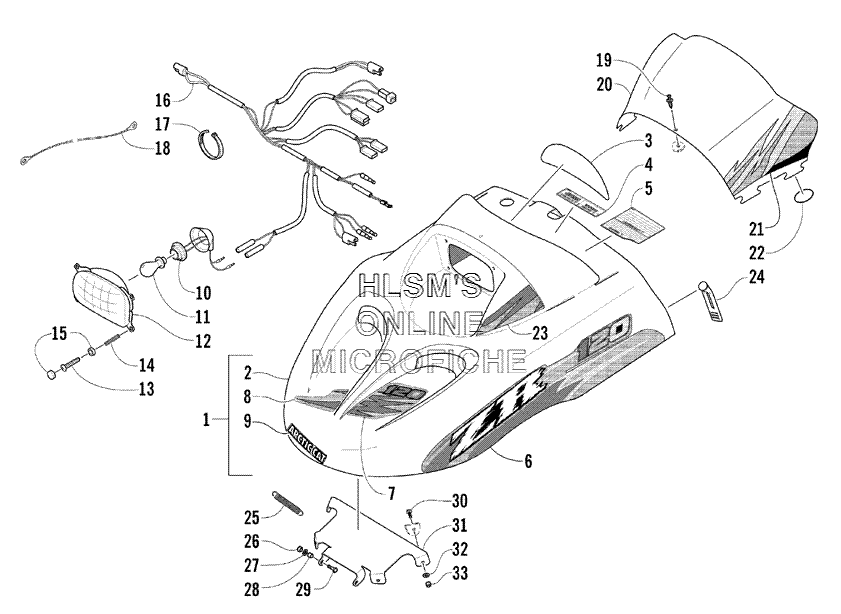

HOOD- HEADLIGHT- AND WINDSHIELD ASSY. для Arctic Cat ZR 120 - 2004 года выпуска`
-
№АртикулНазвание
-
11718-232 HOOD W/DECALS (INC. 2, 9)HOOD W/DECALS (INC. 2, 9)
-
21718-193 HOOD W/O DECALS (INC. 3, 5)HOOD W/O DECALS (INC. 3, 5)
-
33611-675 DECAL, INSTRUMENT PANELDECAL, INSTRUMENT PANEL
-
43611-755 DECAL, CAUTION, THROTTLEDECAL, CAUTION, THROTTLE
-
53611-678 DECAL, CAUTION, HOODDECAL, CAUTION, HOOD
-
64611-762 DECAL, HOOD (RIGHT)DECAL, HOOD (RIGHT)
-
64611-763 DECAL, HOOD (LEFT)DECAL, HOOD (LEFT)
-
74611-764 DECAL, CREST (LEFT)DECAL, CREST (LEFT)
-
84611-765 DECAL, CREST (RIGHT)DECAL, CREST (RIGHT)
-
94611-926 DECAL, "ARCTIC CAT", HOODDECAL, "ARCTIC CAT", HOOD
-
100609-006 SOCKET W/RUBBER CAPSOCKET W/RUBBER CAP
-
110609-004 BULB, HEADLIGHTBULB, HEADLIGHT
-
120609-005 LENS/REFLECTOR, HEADLIGHTLENS/REFLECTOR, HEADLIGHT
-
130123-616 SCREW, ADJUSTMENTSCREW, ADJUSTMENT
-
140123-614 SPRING, ADJUSTMENT SCREWSPRING, ADJUSTMENT SCREW
-
150124-054 SNAP CAP W/WASHERSNAP CAP W/WASHER
-
160686-684 HARNESS, WIRING, MAINHARNESS, WIRING, MAIN
-
170123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
-
180606-121 CABLE, HOODCABLE, HOOD
-
190623-243 CLIP, RETAININGCLIP, RETAINING
-
202606-767 WINDSHIELDWINDSHIELD
-
214611-932 DECAL, WINDSHIELD (RIGHT)DECAL, WINDSHIELD (RIGHT)
-
214611-933 DECAL, WINDSHIELD (LEFT)DECAL, WINDSHIELD (LEFT)
-
220616-032 O-RING, WINDSHIELDO-RING, WINDSHIELD
-
234611-934 DECAL, HOOD, WINDSHIELD (RIGHT)DECAL, HOOD, WINDSHIELD (RIGHT)
-
234611-935 DECAL, HOOD, WINDSHIELD (LEFT)DECAL, HOOD, WINDSHIELD (LEFT)
-
241606-930 STRAP, HOLD, DOWNSTRAP, HOLD, DOWN
-
250123-510 SPRING, EXTENSIONSPRING, EXTENSION
-
268040-366 NUT, LOCKNUT, LOCK
-
278050-217 WASHERWASHER
-
280107-234 SPACERSPACER
-
298002-040 SCREW, CAPSCREW, CAP
-
300623-420 SCREW, HEX WASHER HEADSCREW, HEX WASHER HEAD
-
312706-140 BRACKET, MOUNTING, HOOD (UPPER)BRACKET, MOUNTING, HOOD (UPPER)
-
320623-594 WASHERWASHER
-
330623-392 NUT, LOCKNUT, LOCK
