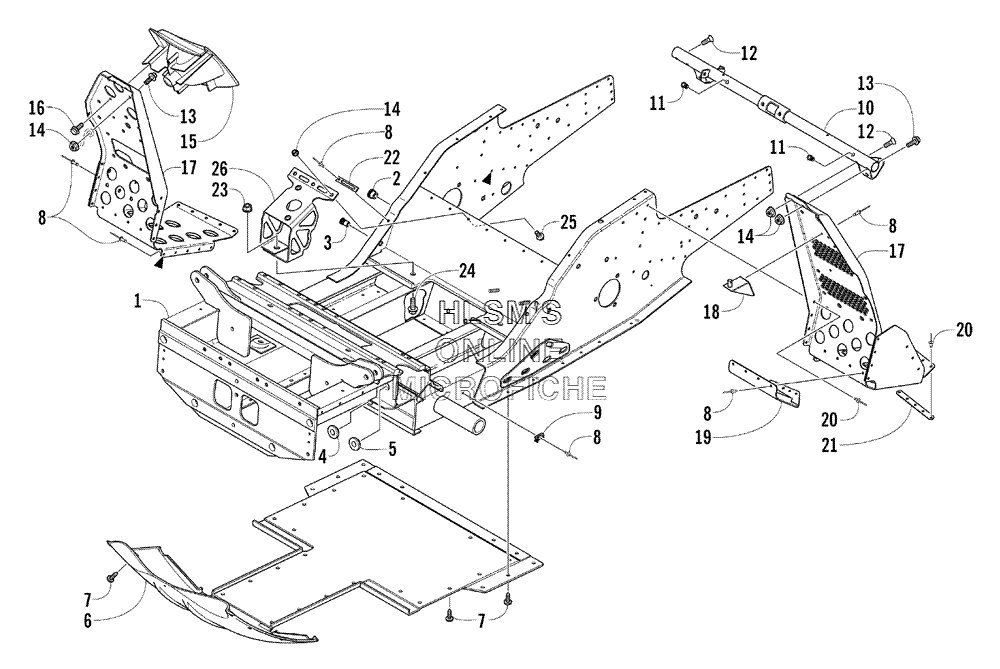

FRONT FRAME AND FOOTREST ASSY. для Arctic Cat Z 570 (Red) - 2004 года выпуска`
-
№АртикулНазвание
-
10707-731 CHASSIS ASSY. (INC. 2, 5)CHASSIS ASSY. (INC. 2, 5)
-
20623-581 INSERTINSERT
-
30623-582 INSERTINSERT
-
40607-420 INSERT A, ARM MOUNT (LOWER)INSERT A, ARM MOUNT (LOWER)
-
50607-421 INSERT A, ARM MOUNT (UPPER)INSERT A, ARM MOUNT (UPPER)
-
61606-719 BELLY PAN (CENTER)BELLY PAN (CENTER)
-
71623-129 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
88060-486 RIVETRIVET
-
90623-228 MOUNT, CABLE TIEMOUNT, CABLE TIE
-
100705-866 SUPPORT, STEERING (INC. 11)SUPPORT, STEERING (INC. 11)
-
110623-779 INSERTINSERT
-
128019-614 SCREW, MACHINESCREW, MACHINE
-
138020-040 SCREW, CAPSCREW, CAP
-
148048-366 NUT, LOCKNUT, LOCK
-
151606-062 CUP, RECOIL ROPECUP, RECOIL ROPE
-
160623-297 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
172606-444 FOOTREST (RIGHT)FOOTREST (RIGHT)
-
172606-733 FOOTREST (LEFT)FOOTREST (LEFT)
-
180705-173 BRACKET, MOUNTING, BELT GUARDBRACKET, MOUNTING, BELT GUARD
-
192606-458 PLATE, BACKING (RIGHT)PLATE, BACKING (RIGHT)
-
192606-459 PLATE, BACKING (LEFT)PLATE, BACKING (LEFT)
-
208060-706 RIVETRIVET
-
212706-110 PLATE, BACKING, FOOTRESTPLATE, BACKING, FOOTREST
-
223002-964 CLAMP, WIRECLAMP, WIRE
-
238048-426 NUT, LOCKNUT, LOCK
-
248020-130 SCREW, CAPSCREW, CAP
-
258020-039 SCREW, CAPSCREW, CAP
-
260708-398 BRACKET, ENGINE MOUNTINGBRACKET, ENGINE MOUNTING
