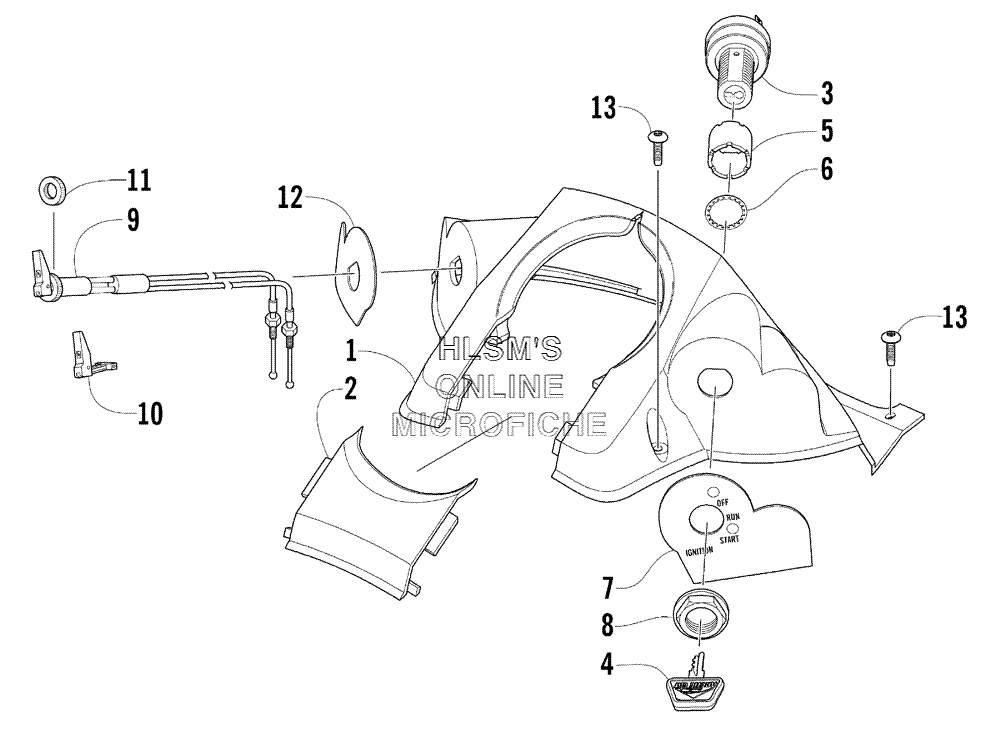

CONSOLE AND SWITCH ASSY. для Arctic Cat Z 570 (Red) - 2004 года выпуска`
-
№АртикулНазвание
-
11606-735 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-286 SWITCH, IGNITION (INC. 4)SWITCH, IGNITION (INC. 4)
-
50609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
60123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
72611-678 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
80609-113 NUT, RETAINING, PLASTICNUT, RETAINING, PLASTIC
-
90687-007 CABLE, CHOKE (INC. 10, 11)CABLE, CHOKE (INC. 10, 11)
-
100636-062 CHOKE LEVER KITCHOKE LEVER KIT
-
110623-054 NUT, CHOKENUT, CHOKE
-
122611-867 DECAL, CONSOLE (LEFT)DECAL, CONSOLE (LEFT)
-
131623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
