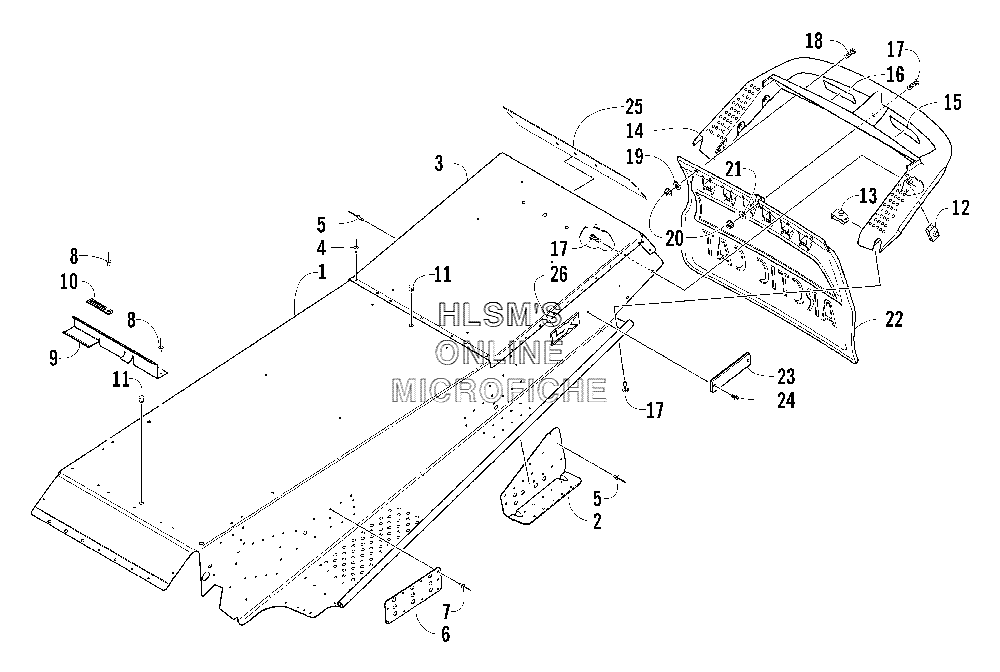

TUNNEL AND REAR BUMPER для Arctic Cat Z 440 LX (Red) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    1718-536 TUNNEL ASSY. (INC. 2, 5)
    TUNNEL ASSY. (INC. 2, 5)
  • 2
    1706-078 BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
    BRACKET, SUSPENSION MOUNTING (RIGHT/REAR)
  • 2
    1706-079 BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
    BRACKET, SUSPENSION MOUNTING (LEFT/REAR)
  • 3
    3606-179 PLATE, END TUNNEL (REAR)
    PLATE, END TUNNEL (REAR)
  • 4
    8060-684 RIVET
    RIVET
  • 4
    8060-484 RIVET
    RIVET
  • 5
    0123-418 RIVET, SOLID
    RIVET, SOLID
  • 5
    8060-506 RIVET
    RIVET
  • 6
    2706-111 PLATE, SUSPENSION MOUNTING (FRONT)
    PLATE, SUSPENSION MOUNTING (FRONT)
  • 7
    0623-072 RIVET, SOLID
    RIVET, SOLID
  • 8
    8060-486 RIVET
    RIVET
  • 9
    0607-635 BRACKET, MAIN HARNESS PROTECTOR
    BRACKET, MAIN HARNESS PROTECTOR
  • 10
    3002-964 CLAMP, WIRE
    CLAMP, WIRE
  • 11
    0623-562 PLUG, HOLE
    PLUG, HOLE
  • 12
    0623-771 NUT, U
    NUT, U
  • 13
    0623-427 NUT, U
    NUT, U
  • 14
    1606-200 BUMPER (REAR)
    BUMPER (REAR)
  • 15
    5611-853 DECAL, WARNING, TOWING (ENGLISH)
    DECAL, WARNING, TOWING (ENGLISH)
  • 16
    5611-852 DECAL, WARNING, TOWING (FRENCH)
    DECAL, WARNING, TOWING (FRENCH)
  • 17
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 18
    8017-579 SCREW, MACHINE
    SCREW, MACHINE
  • 19
    0623-184 WASHER
    WASHER
  • 20
    8048-366 NUT, LOCK
    NUT, LOCK
  • 21
    8050-217 WASHER
    WASHER
  • 22
    1606-507 SNOWFLAP, REVERSE
    SNOWFLAP, REVERSE
  • 23
    0606-029 REFLECTOR (REAR/RED)
    REFLECTOR (REAR/RED)
  • 24
    0623-269 CLIP, RETAINING
    CLIP, RETAINING
  • 25
    4611-112 DECAL, TUNNEL (REAR)
    DECAL, TUNNEL (REAR)
  • 26
    5611-555 DECAL, "LX"
    DECAL, "LX"
