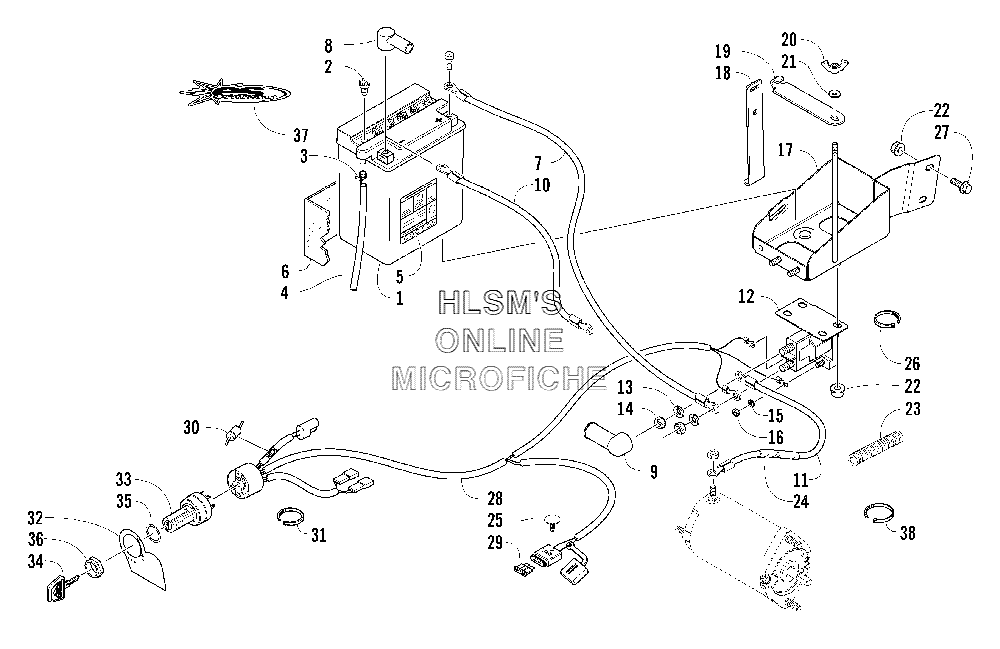

BATTERY- SOLENOID- AND CABLES для Arctic Cat Z 440 LX (Red) - 2004 года выпуска`
-
№АртикулНазвание
-
10745-045 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-045 CAP, BATTERYCAP, BATTERY
-
30645-152 CLAMP, HOSECLAMP, HOSE
-
40645-263 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-161 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
100645-080 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
110645-244 CABLE, SOLENOID/STARTER MOTORCABLE, SOLENOID/STARTER MOTOR
-
120645-196 SOLENOID (INC. 13, 16)SOLENOID (INC. 13, 16)
-
138043-452 NUTNUT
-
148051-242 WASHER, LOCKWASHER, LOCK
-
158042-272 NUTNUT
-
168051-152 WASHER, LOCKWASHER, LOCK
-
170745-149 TRAY, BATTERYTRAY, BATTERY
-
180645-245 STRAP, BATTERYSTRAP, BATTERY
-
190645-243 STRAP, BATTERYSTRAP, BATTERY
-
200623-325 NUT, WINGNUT, WING
-
218050-217 WASHERWASHER
-
228048-366 NUT, LOCKNUT, LOCK
-
230716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
240645-181 TUBE, PROTECTION, HEATTUBE, PROTECTION, HEAT
-
258020-045 SCREW, CAPSCREW, CAP
-
258020-040 SCREW, CAPSCREW, CAP
-
260123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
270623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
280686-695 HARNESS, ELECTRIC START (INC. 29, 31)HARNESS, ELECTRIC START (INC. 29, 31)
-
290630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
300630-002 DIODE, CHARGINGDIODE, CHARGING
-
310123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
322611-744 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
330609-449 SWITCH, IGNITION (INC. 34)SWITCH, IGNITION (INC. 34)
-
350123-899 WASHER, IGNITIONWASHER, IGNITION
-
360609-113 NUT, RETAININGNUT, RETAINING
-
373611-644 DECAL, "ES"DECAL, "ES"
-
380623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
