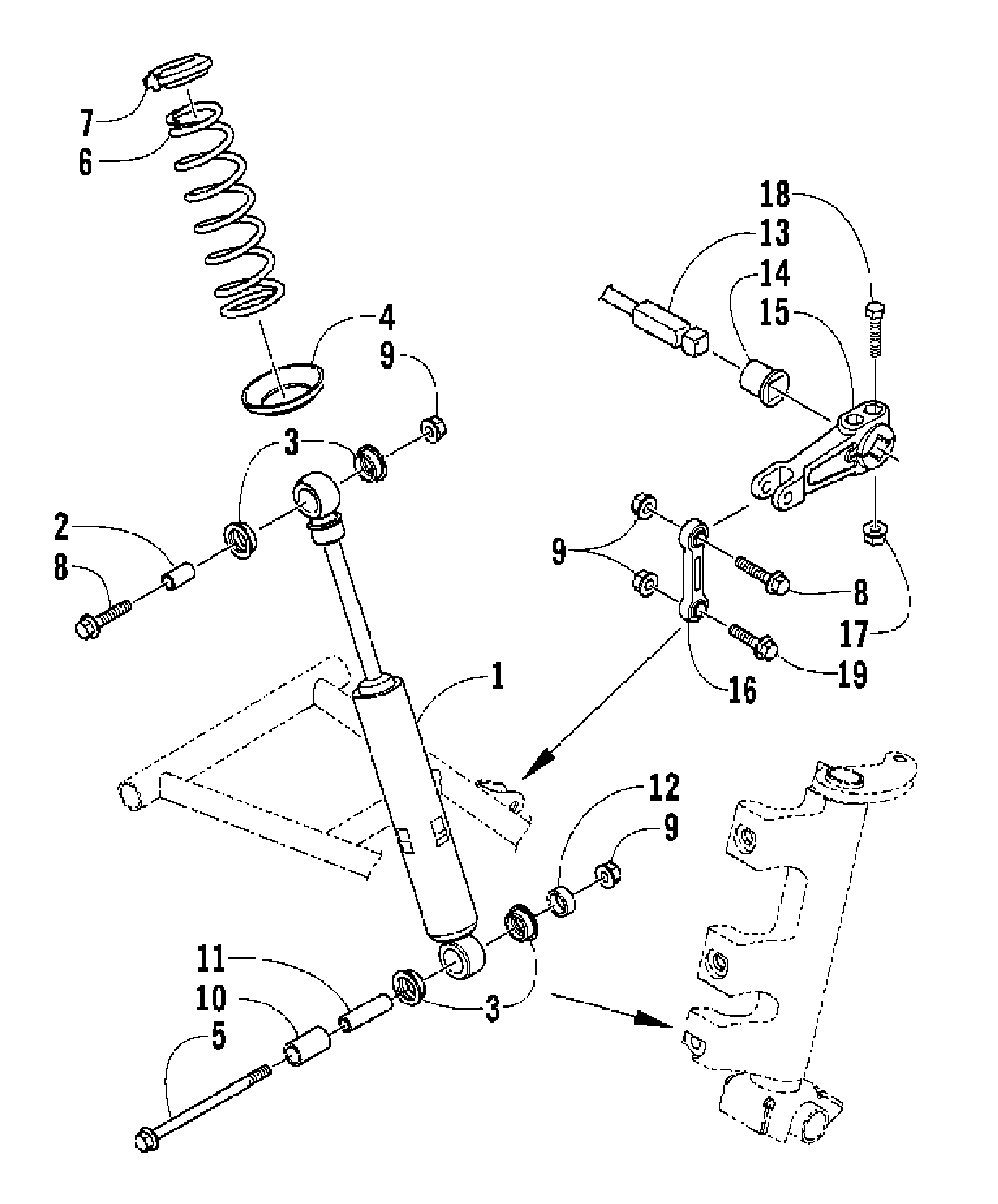

SHOCK ABSORBER AND SWAY BAR ASSY. для Arctic Cat Panther 570 - 2004 года выпуска`
-
№АртикулНазвание
-
11603-253 SHOCK SUSPENSION (FRONT) (INC. 2, 3)SHOCK SUSPENSION (FRONT) (INC. 2, 3)
-
20604-309 SLEEVE, SHOCKSLEEVE, SHOCK
-
30604-310 BUSHING, SHOCKBUSHING, SHOCK
-
40603-900 RETAINER, SPRING, SHOCKRETAINER, SPRING, SHOCK
-
58020-234 SCREW, CAPSCREW, CAP
-
61703-486 SPRING, COMPRESSIONSPRING, COMPRESSION
-
71603-889 RETAINER, SPRINGRETAINER, SPRING
-
88020-226 SCREW, CAPSCREW, CAP
-
98048-486 NUT, LOCKNUT, LOCK
-
100603-854 SPACER, SHOCKSPACER, SHOCK
-
111604-184 SLEEVE, SHOCKSLEEVE, SHOCK
-
120603-855 SPACER, SHOCKSPACER, SHOCK
-
130703-202 SWAY BARSWAY BAR
-
140603-151 BEARING, SWAY BARBEARING, SWAY BAR
-
150603-917 ARM, SWAY BARARM, SWAY BAR
-
161603-414 LINK, SWAY BARLINK, SWAY BAR
-
178048-426 NUT, LOCKNUT, LOCK
-
188002-137 SCREW, CAPSCREW, CAP
-
198020-225 SCREW, CAPSCREW, CAP
