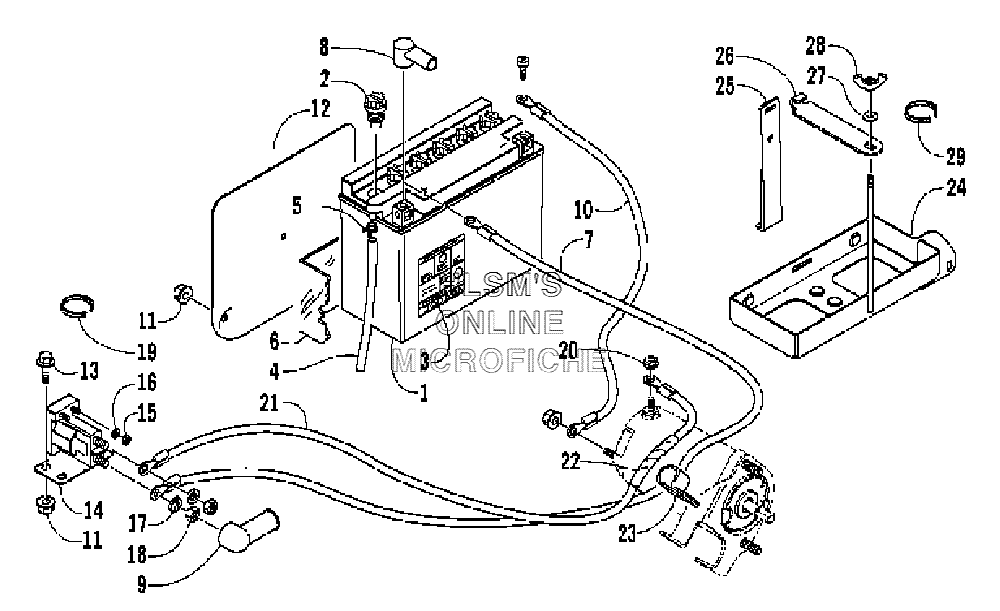

BATTERY- SOLENOID- AND CABLES для Arctic Cat Panther 570 - 2004 года выпуска`
-
№АртикулНазвание
-
10745-059 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-246 CAP, BATTERYCAP, BATTERY
-
30645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
40645-179 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-374 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
100645-136 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
118048-366 NUT, LOCKNUT, LOCK
-
120745-139 SHIELD, HEATSHIELD, HEAT
-
138020-040 SCREW, CAPSCREW, CAP
-
140645-196 SOLENOID (INC. 14, 17)SOLENOID (INC. 14, 17)
-
158042-272 NUTNUT
-
168051-152 WASHER, LOCKWASHER, LOCK
-
178051-242 WASHER, LOCKWASHER, LOCK
-
188043-452 NUTNUT
-
190623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
200623-122 NUT, LOCKNUT, LOCK
-
210645-373 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
220645-181 TUBE, HEAT PROTECTIONTUBE, HEAT PROTECTION
-
233008-040 CLAMP, WIRECLAMP, WIRE
-
240745-166 TRAY, BATTERYTRAY, BATTERY
-
250645-311 STRAP, BATTERY, SIDESTRAP, BATTERY, SIDE
-
260645-243 STRAP, BATTERY, TOPSTRAP, BATTERY, TOP
-
278050-217 WASHERWASHER
-
280623-325 NUT, WINGNUT, WING
-
290123-788 CABLE TIE, 7 IN.CABLE TIE, 7 IN.
