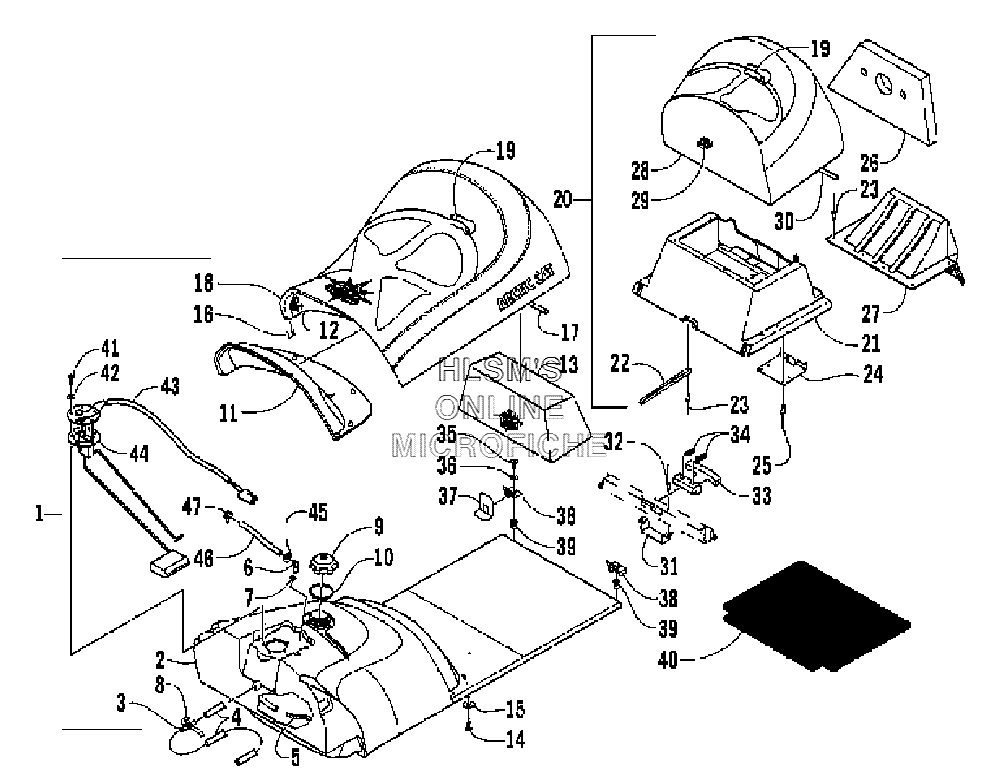

GAS TANK AND SEAT ASSY. для Arctic Cat Pantera 550 - 2004 года выпуска`
-
№АртикулНазвание
-
11718-541 COMPLETE SEAT ASSY. (FRONT) (INC. 2, 18 AND ONE NO. 19)COMPLETE SEAT ASSY. (FRONT) (INC. 2, 18 AND ONE NO. 19)
-
20770-655 TANK, GAS/SEAT, BASE (INC. 3, 10)TANK, GAS/SEAT, BASE (INC. 3, 10)
-
30670-042 OUTLET, TANKOUTLET, TANK
-
46101-001 HOSE, GASLINE (100 FT)HOSE, GASLINE (100 FT)
-
46101-009 HOSE, GASLINE (50 FT)HOSE, GASLINE (50 FT)
-
50510-358 STRAINER, GAS TANKSTRAINER, GAS TANK
-
61670-494 VENT, GAS TANKVENT, GAS TANK
-
71670-325 GROMMETGROMMET
-
80670-289 TAPE, TEFLONTAPE, TEFLON
-
90670-341 CAP, GAS TANK (INC. 10)CAP, GAS TANK (INC. 10)
-
100109-733 SEAL, TANK CAPSEAL, TANK CAP
-
111606-612 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
121706-158 FOAM, SEAT CUSHION (FRONT)FOAM, SEAT CUSHION (FRONT)
-
132606-133 INSERT, SEAT FOAMINSERT, SEAT FOAM
-
140623-309 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
158050-217 WASHERWASHER
-
160624-528 STAPLE, SEAT COVERSTAPLE, SEAT COVER
-
172606-943 WIRE, SEATWIRE, SEAT
-
182706-349 COVER, SEAT (FRONT) (INC. ONE NO. 19)COVER, SEAT (FRONT) (INC. ONE NO. 19)
-
193606-363 WIRE, SEATWIRE, SEAT
-
201718-548 COMPLETE SEAT ASSY., PASSENGER (INC. 16, ONE NO. 19, AND 21, 30)COMPLETE SEAT ASSY., PASSENGER (INC. 16, ONE NO. 19, AND 21, 30)
-
212606-066 SEAT, BASE, PASSENGERSEAT, BASE, PASSENGER
-
222606-188 BRACKET, HOLD, DOWN, SEAT (RIGHT)BRACKET, HOLD, DOWN, SEAT (RIGHT)
-
222606-189 BRACKET, HOLD, DOWN, SEAT (LEFT)BRACKET, HOLD, DOWN, SEAT (LEFT)
-
230623-853 RIVETRIVET
-
242606-161 PLATE, STRIKEPLATE, STRIKE
-
250623-778 RIVETRIVET
-
260617-098 FOAM, SEAT, BASE/TAILLIGHTFOAM, SEAT, BASE/TAILLIGHT
-
271606-191 EXTENSION, TOOLBOXEXTENSION, TOOLBOX
-
282706-352 COVER, SEAT, PASSENGER (INC. ONE NO. 19)COVER, SEAT, PASSENGER (INC. ONE NO. 19)
-
291706-159 FOAM, SEAT, PASSENGERFOAM, SEAT, PASSENGER
-
302606-942 WIRE, SEATWIRE, SEAT
-
312706-130 BRACKET, RETAINER, LATCHBRACKET, RETAINER, LATCH
-
328060-706 RIVETRIVET
-
332606-159 HANDLE, BACKREST, LATCHHANDLE, BACKREST, LATCH
-
342606-154 SPRING, COMPRESSIONSPRING, COMPRESSION
-
358017-580 SCREW, MACHINESCREW, MACHINE
-
368050-222 WASHERWASHER
-
372606-268 GUARD, SEAT (RIGHT)GUARD, SEAT (RIGHT)
-
372606-269 GUARD, SEAT (LEFT)GUARD, SEAT (LEFT)
-
382706-134 BRACKET, HOLD, DOWN, RECEIVER (RIGHT)BRACKET, HOLD, DOWN, RECEIVER (RIGHT)
-
382706-135 BRACKET, HOLD, DOWN, RECEIVER (LEFT)BRACKET, HOLD, DOWN, RECEIVER (LEFT)
-
390623-582 INSERTINSERT
-
402606-180 PAD, RUBBERPAD, RUBBER
-
410624-312 SCREW, MACHINESCREW, MACHINE
-
420623-371 WASHER, NYLONWASHER, NYLON
-
430620-255 SENDER, FUEL LEVEL (INC. 44)SENDER, FUEL LEVEL (INC. 44)
-
440670-474 GASKET, FUEL LEVEL SENDERGASKET, FUEL LEVEL SENDER
-
450623-063 CLAMP, HOSECLAMP, HOSE
-
460610-015 HOSE, VENT (100 FT)HOSE, VENT (100 FT)
-
460610-016 HOSE, VENT (50 FT)HOSE, VENT (50 FT)
-
470623-101 CLIP, ROUTING, SNAP, INNERCLIP, ROUTING, SNAP, INNER
