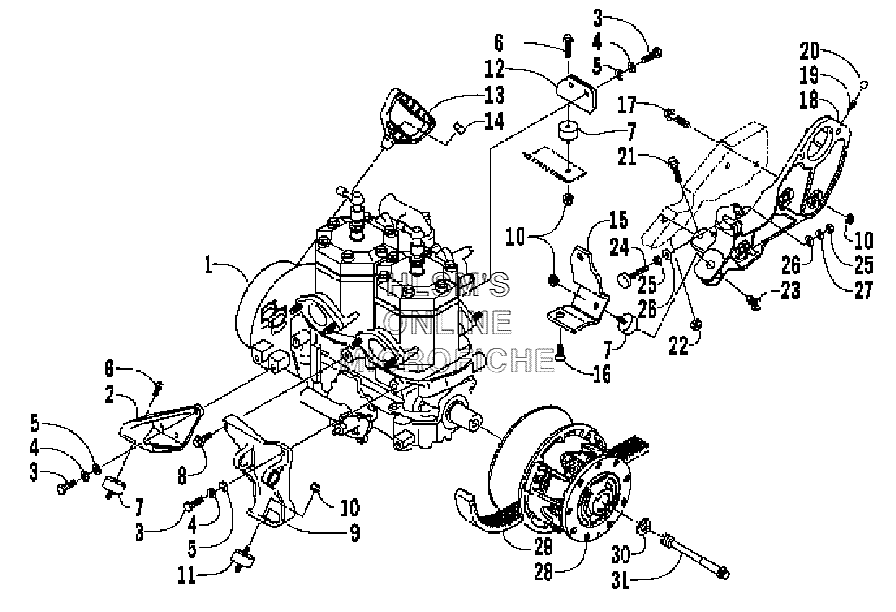

ENGINE AND RELATED PARTS для Arctic Cat Pantera 550 - 2004 года выпуска`
-
№АртикулНазвание
-
10662-358 ENGINE, ACB55L5ENGINE, ACB55L5
-
20708-114 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
38013-132 SCREW, CAPSCREW, CAP
-
48051-242 WASHER, LOCKWASHER, LOCK
-
58050-242 WASHERWASHER
-
68020-220 SCREW, CAPSCREW, CAP
-
70608-217 MOUNT, ENGINEMOUNT, ENGINE
-
88020-135 SCREW, CAPSCREW, CAP
-
90745-135 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
108048-486 NUT, LOCKNUT, LOCK
-
110608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
120708-070 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
130636-363 HANDLE, RECOILHANDLE, RECOIL
-
140606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
150608-235 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
160623-095 SCREW, MACHINESCREW, MACHINE
-
178020-224 SCREW, CAPSCREW, CAP
-
180708-140 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 19, 20)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 19, 20)
-
190623-899 FITTING, GREASEFITTING, GREASE
-
200623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
218020-040 SCREW, CAPSCREW, CAP
-
228048-366 NUT, LOCKNUT, LOCK
-
238020-225 SCREW, CAPSCREW, CAP
-
240608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
258042-516 NUTNUT
-
268050-282 WASHERWASHER
-
278051-277 WASHER, LOCKWASHER, LOCK
-
280725-301 CLUTCH, DRIVECLUTCH, DRIVE
-
290627-021 BELT, DRIVEBELT, DRIVE
-
300623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
310623-804 BOLT, CLUTCHBOLT, CLUTCH
