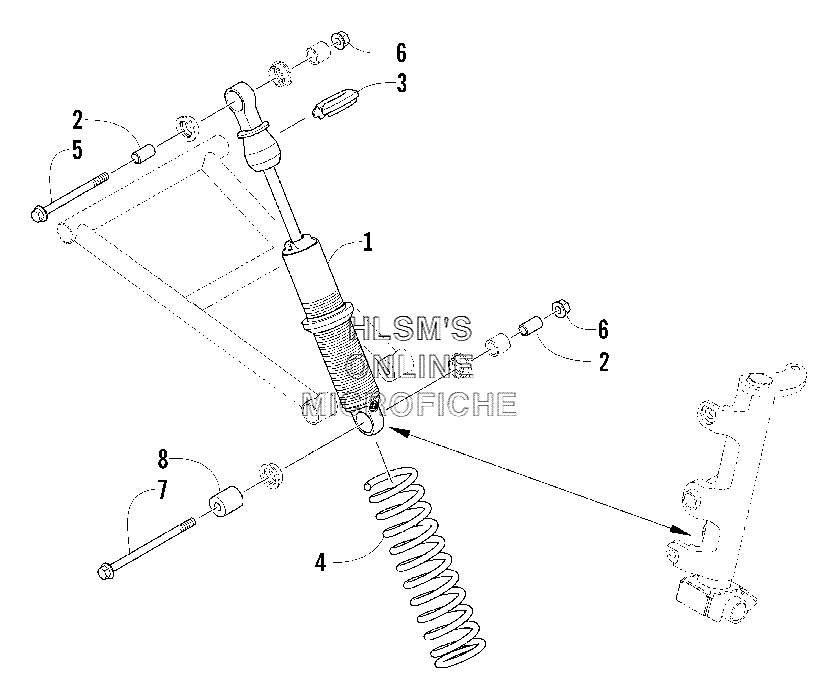

FRONT SUSPENSION SHOCK ABSORBER ASSY. для Arctic Cat Mountain Cat 800 EFI (Green 151) - 2004 года выпуска
-
№АртикулНазвание
-
11703-520 SHOCK SUSPENSION (FRONT)SHOCK SUSPENSION (FRONT)
-
21603-023 SLEEVE, SHOCKSLEEVE, SHOCK
-
31603-890 RETAINER, SPRINGRETAINER, SPRING
-
41703-216 SPRING, COMPRESSIONSPRING, COMPRESSION
-
58020-226 SCREW, CAPSCREW, CAP
-
68048-486 NUT, LOCKNUT, LOCK
-
78020-232 SCREW, CAPSCREW, CAP
-
80603-648 SPACER, SHOCKSPACER, SHOCK
