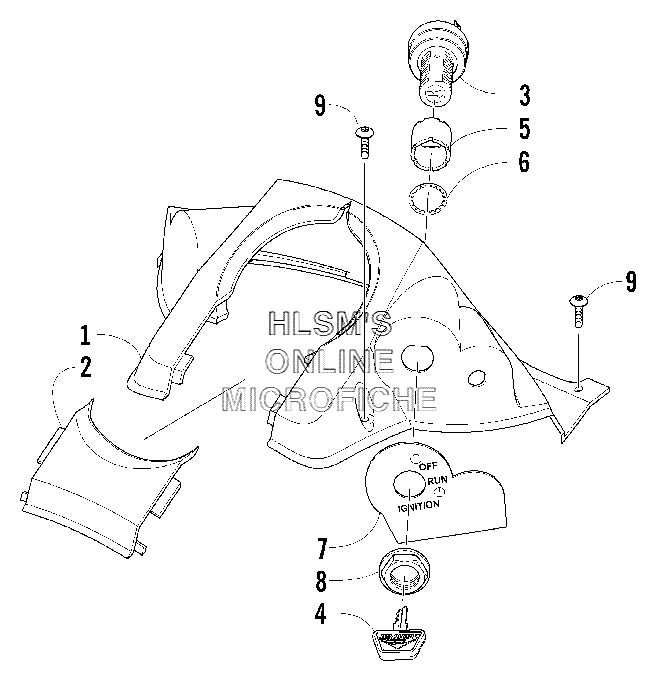

CONSOLE AND SWITCH ASSY. для Arctic Cat Mountain Cat 800 EFI (Green 151) - 2004 года выпуска
-
№АртикулНазвание
-
11606-734 CONSOLECONSOLE
-
21606-105 DOOR, CONSOLEDOOR, CONSOLE
-
30609-286 SWITCH, IGNITION (INC. 4)SWITCH, IGNITION (INC. 4)
-
50609-450 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
60123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
72611-678 DECAL, CONSOLEDECAL, CONSOLE
-
80609-113 NUT, RETAININGNUT, RETAINING
-
91623-175 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
