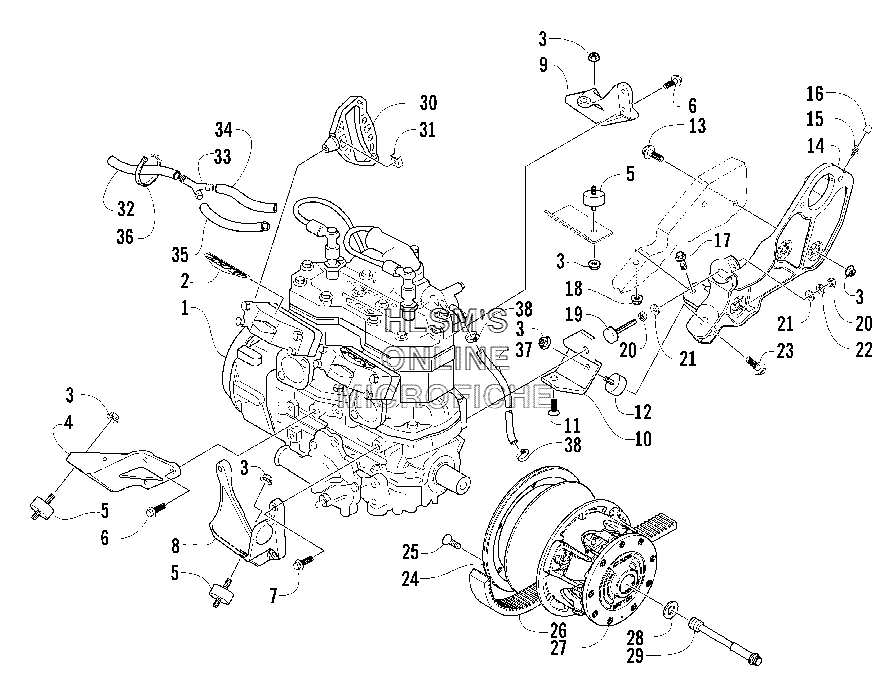

ENGINE AND RELATED PARTS для Arctic Cat Mountain Cat 600 EFI (Green) - 2004 года выпуска`
-
№АртикулНазвание
-
10662-369 ENGINE, AD60L8 W/O EFI COMPONENTSENGINE, AD60L8 W/O EFI COMPONENTS
-
23611-967 DECAL, "APV"DECAL, "APV"
-
38048-486 NUT, LOCKNUT, LOCK
-
40708-102 BRACKET, ENGINE MOUNTING (RIGHT/FRONT)BRACKET, ENGINE MOUNTING (RIGHT/FRONT)
-
50608-118 MOUNT, ENGINE, DOUBLE MALEMOUNT, ENGINE, DOUBLE MALE
-
68020-130 SCREW, CAPSCREW, CAP
-
78020-132 SCREW, CAPSCREW, CAP
-
80708-103 BRACKET, ENGINE MOUNTING (LEFT/FRONT)BRACKET, ENGINE MOUNTING (LEFT/FRONT)
-
90708-104 BRACKET, ENGINE MOUNTING (RIGHT/REAR)BRACKET, ENGINE MOUNTING (RIGHT/REAR)
-
100708-120 BRACKET, ENGINE MOUNTING (LEFT/REAR)BRACKET, ENGINE MOUNTING (LEFT/REAR)
-
110623-095 SCREW, MACHINESCREW, MACHINE
-
120608-217 MOUNT, ENGINEMOUNT, ENGINE
-
138020-224 SCREW, CAPSCREW, CAP
-
140708-404 BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 15, 16)BRACKET, ENGINE MOUNTING/BEARING SUPPORT (INC. 15, 16)
-
150623-899 FITTING, GREASEFITTING, GREASE
-
160623-904 CAP, GREASE FITTINGCAP, GREASE FITTING
-
178020-040 SCREW, CAPSCREW, CAP
-
188048-366 NUT, LOCKNUT, LOCK
-
190608-299 BUMPER, TORQUE, ENGINEBUMPER, TORQUE, ENGINE
-
208042-516 NUTNUT
-
218050-282 WASHERWASHER
-
228051-277 WASHER, LOCKWASHER, LOCK
-
238020-225 SCREW, CAPSCREW, CAP
-
240645-410 RING, CLUTCH DAMPERRING, CLUTCH DAMPER
-
251623-128 SCREW, MACHINESCREW, MACHINE
-
260627-020 BELT, DRIVEBELT, DRIVE
-
270725-366 CLUTCH, DRIVECLUTCH, DRIVE
-
280623-210 WASHER, HIGH COLLARWASHER, HIGH COLLAR
-
290623-804 BOLT, CLUTCHBOLT, CLUTCH
-
300636-363 HANDLE, RECOILHANDLE, RECOIL
-
310606-885 CAP, RECOIL HANDLECAP, RECOIL HANDLE
-
320610-535 HOSE, DRAIN, VEV (EXIT)HOSE, DRAIN, VEV (EXIT)
-
330670-875 Y, FITTINGY, FITTING
-
340610-364 HOSE, DRAIN, VEV (PTO)HOSE, DRAIN, VEV (PTO)
-
350610-363 HOSE, DRAIN, VEV (MAGNETO)HOSE, DRAIN, VEV (MAGNETO)
-
360123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
370610-075 HOSE, COOLANTHOSE, COOLANT
-
380623-373 CLAMP, HOSECLAMP, HOSE
