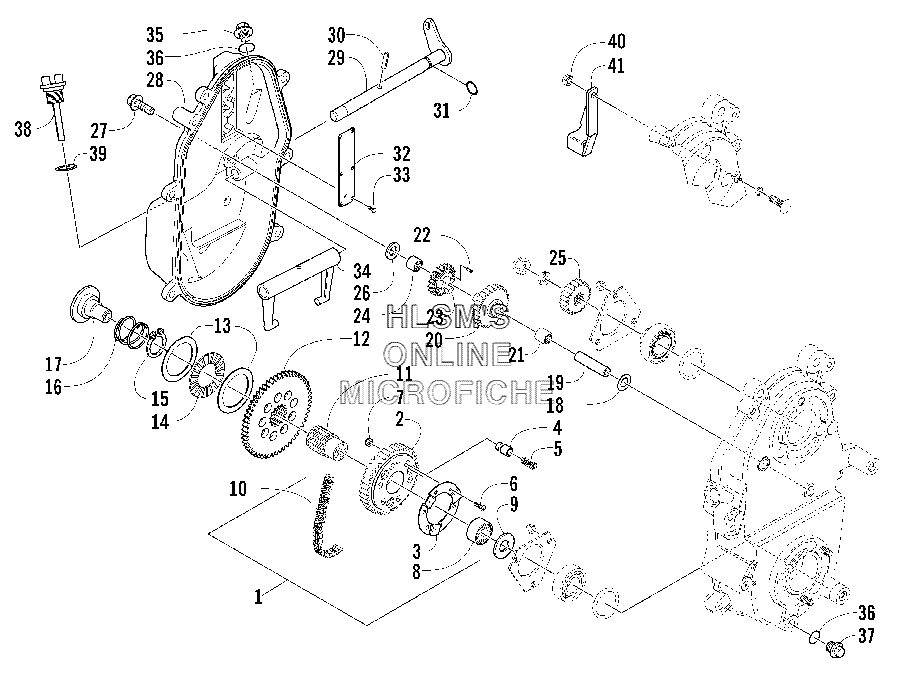

DRIVE/REVERSE DROPCASE ASSY. (OPTIONAL) для Arctic Cat Mountain Cat 600 EFI (Green) - 2004 года выпуска`
-
№АртикулНазвание
-
-3639-528 REVERSE KIT (HIGH ALT.)REVERSE KIT (HIGH ALT.)
-
-3639-529 REVERSE KIT (LOW ALT.)REVERSE KIT (LOW ALT.)
-
10702-400 SPROCKET ASSY. (44 TEETH) (INC. 2, 8)SPROCKET ASSY. (44 TEETH) (INC. 2, 8)
-
10702-170 SPROCKET ASSY. (39 TEETH) (INC. 2, 8) (LOW ALT.)SPROCKET ASSY. (39 TEETH) (INC. 2, 8) (LOW ALT.)
-
30602-144 RETAINER, SPRINGRETAINER, SPRING
-
40602-133 PIN, SLIPPIN, SLIP
-
50602-138 SPRING, COMPRESSIONSPRING, COMPRESSION
-
60623-182 SCREW, CAPSCREW, CAP
-
70123-430 NUT, LOCKNUT, LOCK
-
80602-016 BEARINGBEARING
-
90602-012 SPACER, SHAFTSPACER, SHAFT
-
101602-042 CHAIN, 72PCHAIN, 72P
-
101602-041 CHAIN, 70P (LOW ALT.)CHAIN, 70P (LOW ALT.)
-
111602-048 EXTENSION, DRIVESHAFTEXTENSION, DRIVESHAFT
-
120702-048 GEAR, REVERSE (55 TEETH) (INC. 13, 15)GEAR, REVERSE (55 TEETH) (INC. 13, 15)
-
130602-023 WASHER, THRUSTWASHER, THRUST
-
140602-022 BEARING, THRUSTBEARING, THRUST
-
150602-024 RING, RETAININGRING, RETAINING
-
160602-028 SPRING, RETURNSPRING, RETURN
-
170638-881 RETAINER, SHAFT EXTENSIONRETAINER, SHAFT EXTENSION
-
180602-215 SPACER, REVERSE IDLERSPACER, REVERSE IDLER
-
190602-094 SHAFT, REVERSESHAFT, REVERSE
-
200702-449 SPROCKET, IDLER (20 TEETH) (INC. 21)SPROCKET, IDLER (20 TEETH) (INC. 21)
-
200702-260 SPROCKET, IDLER (24 TEETH) (INC. 21) (LOW ALT.)SPROCKET, IDLER (24 TEETH) (INC. 21) (LOW ALT.)
-
210602-018 BEARINGBEARING
-
220602-366 ALIGNER, IDLER, PINALIGNER, IDLER, PIN
-
230702-366 IDLER, REVERSE ASSY. (19 TEETH) (INC. 24)IDLER, REVERSE ASSY. (19 TEETH) (INC. 24)
-
241602-045 BEARINGBEARING
-
251602-378 SPROCKET (18 TEETH)SPROCKET (18 TEETH)
-
250602-444 SPROCKET (19 TEETH) (LOW ALT.)SPROCKET (19 TEETH) (LOW ALT.)
-
261602-044 WASHER, THRUSTWASHER, THRUST
-
278020-130 SCREW, CAPSCREW, CAP
-
281602-409 COVER, DROPCASECOVER, DROPCASE
-
290702-492 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
300623-542 PIN, SPRINGPIN, SPRING
-
310602-021 SEAL, O-RINGSEAL, O-RING
-
321602-151 COVER, OIL VENTCOVER, OIL VENT
-
330623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
340602-085 FORK, SHIFTFORK, SHIFT
-
350623-293 PLUG, DRAIN (ONE INCLUDED IN KIT)PLUG, DRAIN (ONE INCLUDED IN KIT)
-
361602-213 O-RINGO-RING
-
370602-479 PLUG, DRAIN, MAGNETICPLUG, DRAIN, MAGNETIC
-
380602-483 STICK, OIL LEVELSTICK, OIL LEVEL
-
390670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
400623-122 NUT, LOCKNUT, LOCK
-
410702-554 BRACKET, CHAIN BACKINGBRACKET, CHAIN BACKING
-
410702-553 BRACKET, CHAIN BACKING (LOW ALT.)BRACKET, CHAIN BACKING (LOW ALT.)
