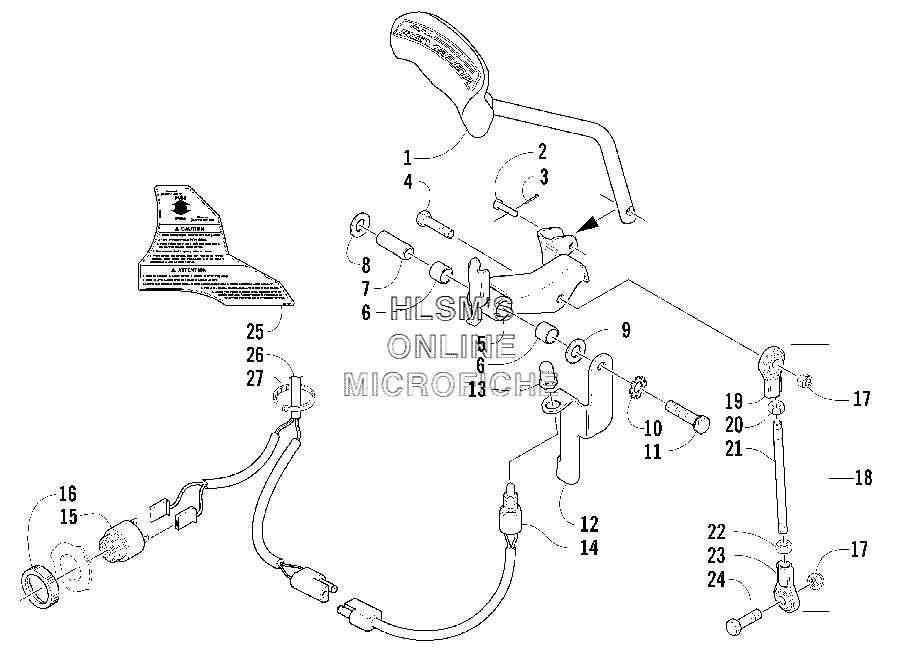

REVERSE SHIFT LEVER ASSY. (OPTIONAL) для Arctic Cat Mountain Cat 570 - 2004 года выпуска`
-
№АртикулНазвание
-
-2639-976 REV SHIFT OPTIONAL KITREV SHIFT OPTIONAL KIT
-
11602-424 LEVER, REVERSELEVER, REVERSE
-
20623-641 PIN, CLEVISPIN, CLEVIS
-
30117-868 PIN, COTTERPIN, COTTER
-
48002-137 SCREW, CAPSCREW, CAP
-
50702-496 SHIFT PIVOT (INC. 6)SHIFT PIVOT (INC. 6)
-
60602-844 BUSHINGBUSHING
-
70602-853 AXLEAXLE
-
88050-252 WASHERWASHER
-
98050-247 WASHERWASHER
-
108053-242 WASHER, LOCK, EXTERNAL TOOTHWASHER, LOCK, EXTERNAL TOOTH
-
118002-140 SCREW, CAPSCREW, CAP
-
120702-465 BRACKET, REVERSE SWITCHBRACKET, REVERSE SWITCH
-
130630-013 BOOT, SWITCHBOOT, SWITCH
-
140630-011 SWITCH, ALARMSWITCH, ALARM
-
150630-010 ALARM, REVERSE (INC. 16)ALARM, REVERSE (INC. 16)
-
160630-017 RING, RETAININGRING, RETAINING
-
178040-426 NUT, LOCKNUT, LOCK
-
180702-495 LINKAGE, SHIFTING, ASSY. (INC. 19, 23)LINKAGE, SHIFTING, ASSY. (INC. 19, 23)
-
190602-305 ROD END (LEFT)ROD END (LEFT)
-
200623-260 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
211602-422 ROD, LINKAGEROD, LINKAGE
-
220123-144 NUT, JAM (RIGHT)NUT, JAM (RIGHT)
-
230602-322 ROD END (RIGHT)ROD END (RIGHT)
-
248002-132 SCREW, CAPSCREW, CAP
-
253611-364 DECAL REVERSEDECAL REVERSE
-
253611-580 DECAL REVERSEDECAL REVERSE
-
260686-120 HARNESS, WIRING, ALARMHARNESS, WIRING, ALARM
-
270123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
