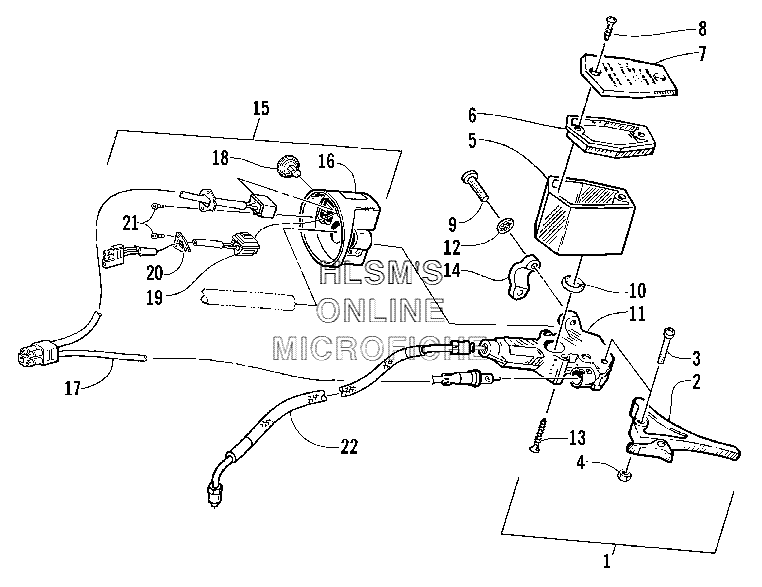

HYDRAULIC BRAKE CONTROL ASSY. для Arctic Cat Mountain Cat 570 - 2004 года выпуска`
-
№АртикулНазвание
-
10602-943 BRAKE ASSY. (INC. 2, 14)BRAKE ASSY. (INC. 2, 14)
-
21602-740 LEVER, BRAKELEVER, BRAKE
-
30623-430 SCREW, LEVER MOUNTINGSCREW, LEVER MOUNTING
-
40623-056 NUT, LOCKNUT, LOCK
-
50602-740 RESERVOIRRESERVOIR
-
60602-741 GASKET, COVERGASKET, COVER
-
70602-742 COVER, RESERVOIRCOVER, RESERVOIR
-
80623-506 SCREW, COVERSCREW, COVER
-
90623-613 SCREW, MACHINESCREW, MACHINE
-
100602-587 O-RINGO-RING
-
128052-212 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
130623-432 SCREW, MASTER CYLINDER MOUNTINGSCREW, MASTER CYLINDER MOUNTING
-
140602-907 CLAMP, MASTER CYLINDERCLAMP, MASTER CYLINDER
-
150609-525 CONTROL, DIMMER, ASSY. (INC. 16, 21)CONTROL, DIMMER, ASSY. (INC. 16, 21)
-
160609-322 HOUSING, DIMMER CONTROLHOUSING, DIMMER CONTROL
-
170609-267 SWITCH, DIMMER AND BRAKE, ASSY.SWITCH, DIMMER AND BRAKE, ASSY.
-
180609-474 KNOB, DIMMER SWITCHKNOB, DIMMER SWITCH
-
190609-526 SWITCH, HI/LO HANDWARMER, ASSY. (INC. 20 AND THREE NO. 21)SWITCH, HI/LO HANDWARMER, ASSY. (INC. 20 AND THREE NO. 21)
-
200609-378 PLATE, COVERPLATE, COVER
-
210609-312 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
221602-275 BRAKELINE, HYDRAULICBRAKELINE, HYDRAULIC
