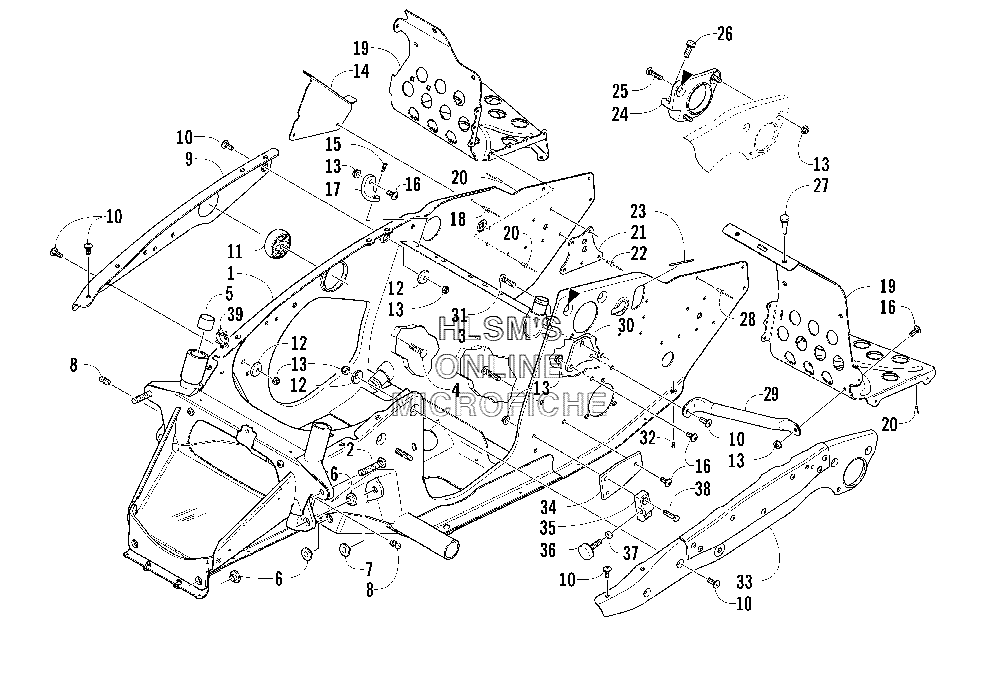

FRONT FRAME AND FOOTREST ASSEMBLY для Arctic Cat Firecat 700 EFI (EXT Red) - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0707-818 CHASSIS, ASSEMBLY (INC. 2, 8)
    CHASSIS, ASSEMBLY (INC. 2, 8)
  • 2
    1623-019 BOLT, CARRIAGE, RIBBED
    BOLT, CARRIAGE, RIBBED
  • 3
    1623-020 BOLT, CARRIAGE, RIBBED
    BOLT, CARRIAGE, RIBBED
  • 4
    1623-212 BOLT, CARRIAGE, RIBBED
    BOLT, CARRIAGE, RIBBED
  • 5
    0675-161 BEARING
    BEARING
  • 6
    0607-657 BUSHING A, ARM MOUNT (LOWER)
    BUSHING A, ARM MOUNT (LOWER)
  • 7
    0607-656 BUSHING A, ARM MOUNT (UPPER)
    BUSHING A, ARM MOUNT (UPPER)
  • 8
    1623-010 FITTING, GREASE
    FITTING, GREASE
  • 9
    3606-106 BRACE, SIDE PLATE
    BRACE, SIDE PLATE
  • 10
    8017-580 SCREW, MACHINE
    SCREW, MACHINE
  • 11
    0608-364 MOUNT, ENGINE
    MOUNT, ENGINE
  • 12
    0623-943 WASHER, CUP
    WASHER, CUP
  • 13
    8048-366 NUT, LOCK
    NUT, LOCK
  • 14
    2606-906 GUARD, HOSE
    GUARD, HOSE
  • 15
    1623-115 SCREW
    SCREW
  • 16
    8017-579 SCREW, MACHINE
    SCREW, MACHINE
  • 17
    2606-908 SUPPORT, SIDE PLATE
    SUPPORT, SIDE PLATE
  • 18
    8060-684 RIVET
    RIVET
  • 19
    2606-958 FOOTREST (RIGHT)
    FOOTREST (RIGHT)
  • 19
    2606-959 FOOTREST (LEFT)
    FOOTREST (LEFT)
  • 20
    0623-282 RIVET
    RIVET
  • 21
    2706-151 PLATE, BACKING
    PLATE, BACKING
  • 22
    0623-341 RIVET
    RIVET
  • 23
    0706-371 TRIM
    TRIM
  • 24
    0708-433 BRACKET, BEARING SUPPORT (INC. 25)
    BRACKET, BEARING SUPPORT (INC. 25)
  • 25
    0623-117 BOLT, STUD, RIBBED
    BOLT, STUD, RIBBED
  • 26
    0623-190 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 27
    3606-178 BUMPER
    BUMPER
  • 28
    1623-130 RIVET
    RIVET
  • 29
    2706-517 TUBE, BELT GUARD
    TUBE, BELT GUARD
  • 30
    0607-725 PLATE, BACKING
    PLATE, BACKING
  • 31
    1623-167 BOLT, CARRIAGE, RIBBED
    BOLT, CARRIAGE, RIBBED
  • 32
    1623-018 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 33
    2706-560 BRACE, SIDE PLATE
    BRACE, SIDE PLATE
  • 34
    2606-939 PLATE, MOUNTING, TORQUE BUMPER, ENGINE
    PLATE, MOUNTING, TORQUE BUMPER, ENGINE
  • 35
    0704-352 MOUNT, TORQUE BUMPER, ENGINE
    MOUNT, TORQUE BUMPER, ENGINE
  • 36
    0608-396 BUMPER, TORQUE, ENGINE
    BUMPER, TORQUE, ENGINE
  • 37
    8042-486 NUT
    NUT
  • 38
    8002-042 SCREW, CAP
    SCREW, CAP
  • 39
    1623-171 CLIP
    CLIP
