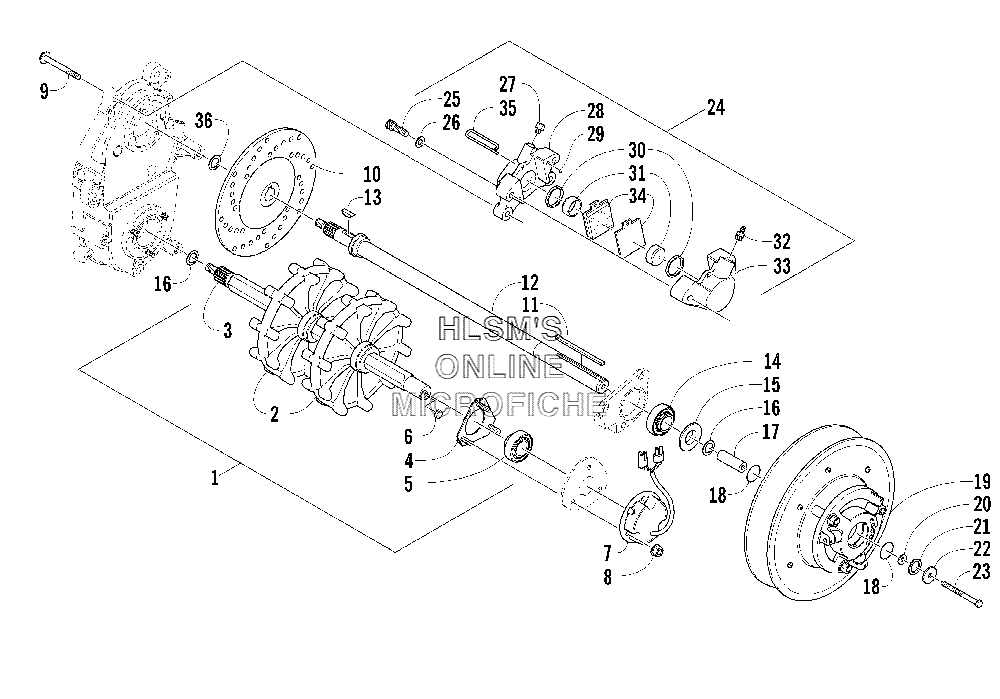

DRIVE TRAIN SHAFTS AND BRAKE ASSEMBLIES для Arctic Cat Firecat 700 EFI (EXT Red) - 2004 года выпуска`
-
№АртикулНазвание
-
10728-103 TRACK DRIVE ASSEMBLY (INC. 2, 6)TRACK DRIVE ASSEMBLY (INC. 2, 6)
-
21602-510 SPROCKET, DRIVESPROCKET, DRIVE
-
31602-522 DRIVESHAFTDRIVESHAFT
-
40702-412 PLATE, FLANGEPLATE, FLANGE
-
51602-374 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
60630-167 MAGNETMAGNET
-
70630-165 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
88048-426 NUT, LOCKNUT, LOCK
-
98020-315 SCREW, CAPSCREW, CAP
-
101602-205 DISC, BRAKEDISC, BRAKE
-
110101-076 KEYKEY
-
120702-515 SHAFT, DRIVEN (INC. 13, 15)SHAFT, DRIVEN (INC. 13, 15)
-
130602-598 KEYKEY
-
141602-233 BEARING, 1 IN. W/O LOCK COLLARBEARING, 1 IN. W/O LOCK COLLAR
-
151602-367 SPACERSPACER
-
160623-118 WASHERWASHER
-
160623-119 WASHERWASHER
-
170648-042 SHAFT, STUBSHAFT, STUB
-
180616-032 O-RINGO-RING
-
190726-174 CLUTCH, DRIVENCLUTCH, DRIVEN
-
200123-053 WASHERWASHER
-
210123-694 WASHERWASHER
-
220123-019 WASHERWASHER
-
238002-139 SCREW, CAPSCREW, CAP
-
240602-829 CALIPER, BRAKE ASSEMBLY (INC. 25, 35)CALIPER, BRAKE ASSEMBLY (INC. 25, 35)
-
258005-679 SCREW, CAPSCREW, CAP
-
268050-272 WASHERWASHER
-
270602-590 FITTING, ADAPTERFITTING, ADAPTER
-
290602-729 O-RING, HOUSINGO-RING, HOUSING
-
300602-583 O-RINGO-RING
-
310602-708 PISTONPISTON
-
320602-707 SCREW, BLEED, ASSEMBLYSCREW, BLEED, ASSEMBLY
-
340702-229 PAD, BRAKE, SET (INC. 35)PAD, BRAKE, SET (INC. 35)
-
350602-706 PIN, RETAININGPIN, RETAINING
-
360623-912 WASHERWASHER
