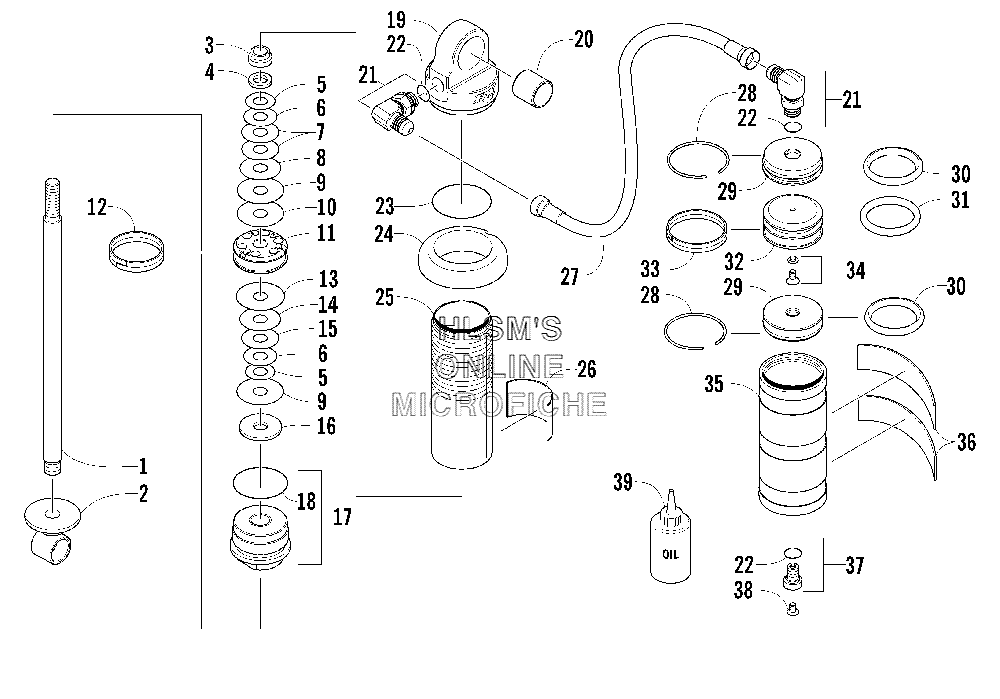

REAR SUSPENSION FRONT ARM SHOCK ABSORBER для Arctic Cat Firecat 500 Sno Pro 1'' (Green) - 2004 года выпуска

  • №
    Артикул
    Название
  • -
    1704-140 COMPLETE SHOCK ABSORBER
    COMPLETE SHOCK ABSORBER
  • 1
    2604-409 ROD, SHOCK
    ROD, SHOCK
  • 2
    0604-625 EYELET, SHOCK
    EYELET, SHOCK
  • 3
    0603-301 NUT, LOCK
    NUT, LOCK
  • 4
    0603-389 WASHER, BACKUP
    WASHER, BACKUP
  • 5
    0603-335 VALVE, SHOCK 0.800 X 0.010 IN.
    VALVE, SHOCK 0.800 X 0.010 IN.
  • 6
    0603-338 VALVE, SHOCK 0.900 X 0.008 IN.
    VALVE, SHOCK 0.900 X 0.008 IN.
  • 7
    0603-341 VALVE, SHOCK 1.000 X 0.010 IN.
    VALVE, SHOCK 1.000 X 0.010 IN.
  • 8
    0603-344 VALVE, SHOCK 1.100 X 0.010 IN.
    VALVE, SHOCK 1.100 X 0.010 IN.
  • 9
    0603-347 VALVE, SHOCK 1.250 X 0.010 IN.
    VALVE, SHOCK 1.250 X 0.010 IN.
  • 10
    0603-883 VALVE, SHOCK 1.250 X 0.012 IN.
    VALVE, SHOCK 1.250 X 0.012 IN.
  • 11
    2604-412 PISTON, 0.055 IN., ORIFICE
    PISTON, 0.055 IN., ORIFICE
  • 12
    0603-292 STRAP, PISTON, TEFLON
    STRAP, PISTON, TEFLON
  • 13
    0603-891 VALVE, SHOCK 1.300 X 0.012 IN.
    VALVE, SHOCK 1.300 X 0.012 IN.
  • 14
    0603-882 VALVE, SHOCK 1.100 X 0.012 IN.
    VALVE, SHOCK 1.100 X 0.012 IN.
  • 15
    0603-881 VALVE, SHOCK 1.000 X 0.012 IN.
    VALVE, SHOCK 1.000 X 0.012 IN.
  • 16
    0603-540 WASHER, TOP OUT
    WASHER, TOP OUT
  • 17
    2604-413 END CAP, SHOCK (INC. 18)
    END CAP, SHOCK (INC. 18)
  • 18
    1604-420 O-RING
    O-RING
  • 19
    2603-310 END CAP, SHOCK
    END CAP, SHOCK
  • 20
    2604-415 SLEEVE, SHOCK
    SLEEVE, SHOCK
  • 21
    1603-942 FITTING, ELBOW (INC. TWO NO. 22)
    FITTING, ELBOW (INC. TWO NO. 22)
  • 22
    1604-318 O-RING
    O-RING
  • 23
    0603-438 O-RING, END CAP
    O-RING, END CAP
  • 24
    2603-221 NUT, SPRING ADJUSTER
    NUT, SPRING ADJUSTER
  • 25
    2604-625 BODY, SHOCK
    BODY, SHOCK
  • 26
    2603-311 DECAL, SHOCK
    DECAL, SHOCK
  • 27
    2604-416 HOSE, SHOCK
    HOSE, SHOCK
  • 28
    0604-992 RING, RETAINING
    RING, RETAINING
  • 29
    1603-936 END CAP, RESERVOIR
    END CAP, RESERVOIR
  • 30
    0603-671 O-RING
    O-RING
  • 31
    1603-236 O-RING
    O-RING
  • 32
    2604-517 PISTON, RESERVOIR
    PISTON, RESERVOIR
  • 33
    1603-235 STRAP, PISTON
    STRAP, PISTON
  • 34
    1604-316 SCREW, RELIEF W/O-RING
    SCREW, RELIEF W/O-RING
  • 35
    1603-935 BODY, RESERVOIR
    BODY, RESERVOIR
  • 36
    2604-658 DECAL, SHOCK
    DECAL, SHOCK
  • 37
    0703-341 VALVE, PRESSURE, ASSY (INC. ONE NO. 22)
    VALVE, PRESSURE, ASSY (INC. ONE NO. 22)
  • 38
    0624-097 SCREW, MACHINE
    SCREW, MACHINE
  • 39
    1639-245 OIL, GAS SHOCK, 6 QT CASE
    OIL, GAS SHOCK, 6 QT CASE
