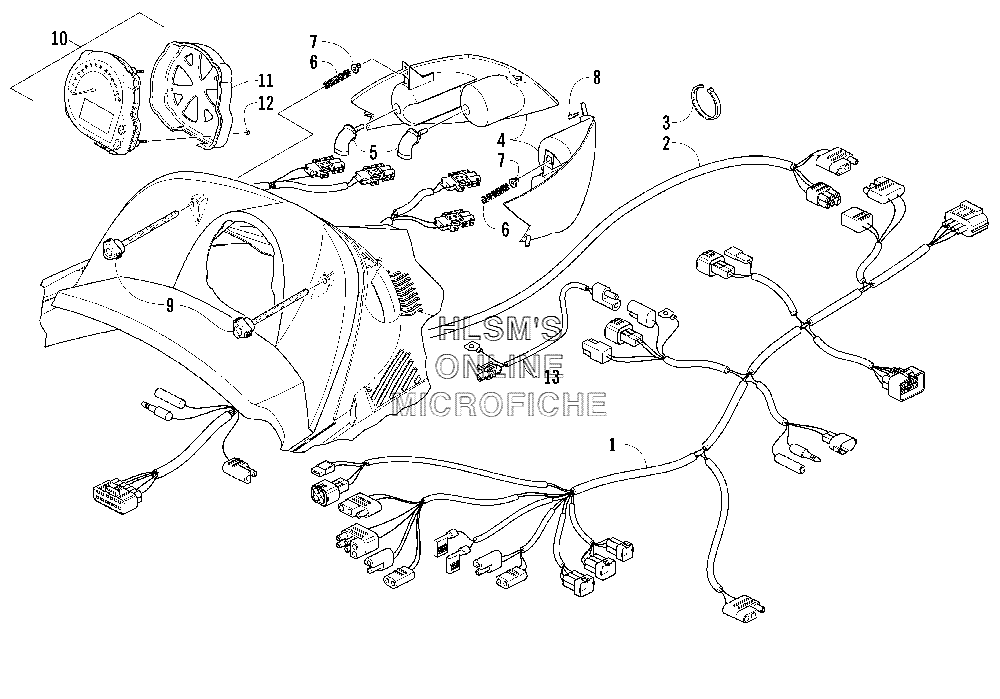

HEADLIGHT- INSTRUMENTS- AND WIRING ASSEMBLIES для Arctic Cat Firecat 500 Sno Pro 1'' (Green) - 2004 года выпуска`
-
№АртикулНазвание
-
10686-951 HARNESS, MAINHARNESS, MAIN
-
20686-962 HARNESS, HOODHARNESS, HOOD
-
30123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
40609-530 LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (RIGHT) (INC. 5)
-
40609-531 LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)LENS/REFLECTOR, HEADLIGHT (LEFT) (INC. 5)
-
50609-251 BULB, HEADLIGHTBULB, HEADLIGHT
-
60623-360 SPRING, ADJUSTERSPRING, ADJUSTER
-
71623-025 INSERTINSERT
-
81623-137 CLIP, HAIRPINCLIP, HAIRPIN
-
91623-024 SCREW, ADJUSTERSCREW, ADJUSTER
-
100620-288 TACHOMETER/SPEEDOMETER (INC. 11, 12)TACHOMETER/SPEEDOMETER (INC. 11, 12)
-
110620-281 BRACKET, RETAININGBRACKET, RETAINING
-
120620-280 NUT W/WASHERNUT W/WASHER
-
130686-960 HARNESS, ADAPTER, TEMPERATURE SWITCHHARNESS, ADAPTER, TEMPERATURE SWITCH
