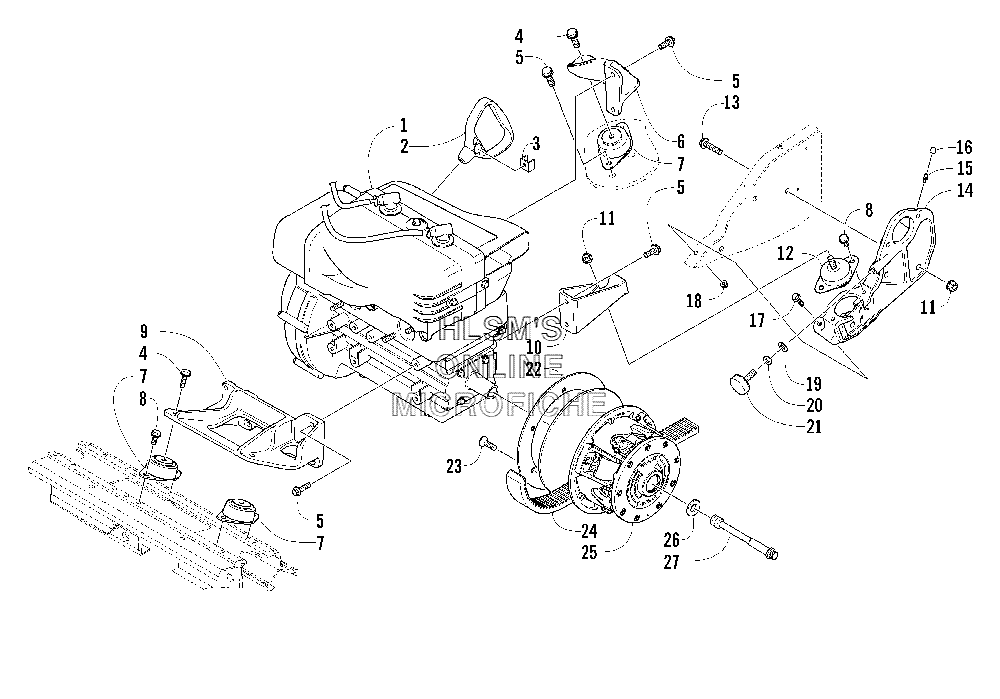

ENGINE AND RELATED PARTS для Arctic Cat Bearcat 570 - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    0662-359 ENGINE, AA56A3
    ENGINE, AA56A3
  • 2
    0636-363 HANDLE, RECOIL
    HANDLE, RECOIL
  • 3
    0606-885 CAP, RECOIL HANDLE
    CAP, RECOIL HANDLE
  • 4
    8020-220 SCREW, CAP
    SCREW, CAP
  • 5
    8020-130 SCREW, CAP
    SCREW, CAP
  • 6
    0708-132 BRACKET, MOUNTING, ENGINE (RIGHT/REAR)
    BRACKET, MOUNTING, ENGINE (RIGHT/REAR)
  • 7
    0608-347 MOUNT, ENGINE
    MOUNT, ENGINE
  • 8
    0623-765 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 9
    0708-131 BRACKET, MOUNTING, ENGINE (FRONT)
    BRACKET, MOUNTING, ENGINE (FRONT)
  • 10
    0708-133 BRACKET, MOUNTING, ENGINE (LEFT/REAR)
    BRACKET, MOUNTING, ENGINE (LEFT/REAR)
  • 11
    8048-486 NUT, LOCK
    NUT, LOCK
  • 12
    0708-145 MOUNT, ENGINE, ASSY
    MOUNT, ENGINE, ASSY
  • 13
    8020-224 SCREW, CAP
    SCREW, CAP
  • 14
    0708-139 BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 15, 16)
    BRACKET, MOUNTING, ENGINE/BEARING SUPPORT (INC. 15, 16)
  • 15
    0623-899 FITTING, GREASE
    FITTING, GREASE
  • 16
    0623-904 CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 17
    8020-040 SCREW, CAP
    SCREW, CAP
  • 18
    8048-366 NUT, LOCK
    NUT, LOCK
  • 19
    8050-272 WASHER
    WASHER
  • 20
    0123-191 NUT
    NUT
  • 21
    0608-355 BUMPER, TORQUE, ENGINE
    BUMPER, TORQUE, ENGINE
  • 22
    0645-410 RING, CLUTCH DAMPER
    RING, CLUTCH DAMPER
  • 23
    1623-128 SCREW, MACHINE
    SCREW, MACHINE
  • 24
    0627-013 BELT, DRIVE
    BELT, DRIVE
  • 25
    0725-397 CLUTCH, DRIVE
    CLUTCH, DRIVE
  • 26
    0623-210 WASHER, HIGH COLLAR
    WASHER, HIGH COLLAR
  • 27
    0623-804 BOLT, CLUTCH
    BOLT, CLUTCH
