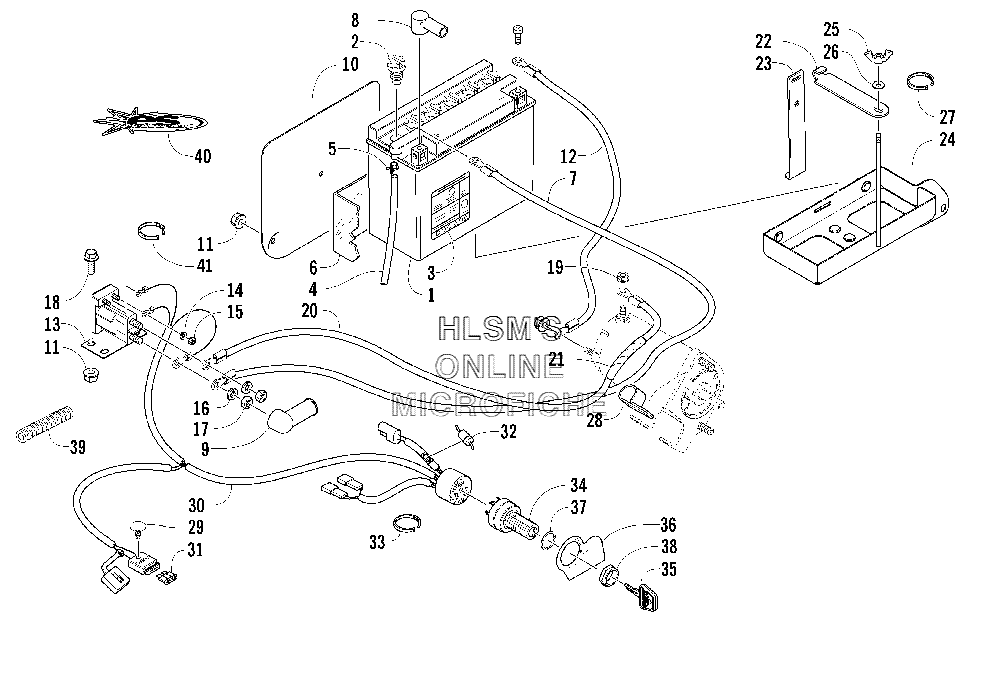

BATTERY- SOLENOID- AND CABLES (OPTIONAL) для Arctic Cat Bearcat 570 - 2004 года выпуска`
-
№АртикулНазвание
-
10745-059 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-246 CAP, BATTERYCAP, BATTERY
-
30645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
40645-179 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-374 CABLE, BATTERY/SOLENOID (INC. 8, 9)CABLE, BATTERY/SOLENOID (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
100745-139 SHIELD, HEATSHIELD, HEAT
-
118048-366 NUT, LOCKNUT, LOCK
-
120645-136 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
130645-196 SOLENOID (INC. 14, 17)SOLENOID (INC. 14, 17)
-
148051-152 WASHER, LOCKWASHER, LOCK
-
158042-272 NUTNUT
-
168051-242 WASHER, LOCKWASHER, LOCK
-
178043-452 NUTNUT
-
188020-040 SCREW, CAPSCREW, CAP
-
190623-122 NUT, LOCKNUT, LOCK
-
200645-373 CABLE, SOLENOID/STARTER MOTORCABLE, SOLENOID/STARTER MOTOR
-
210645-181 TUBE, PROTECTION, HEATTUBE, PROTECTION, HEAT
-
220645-243 STRAP, BATTERY (TOP)STRAP, BATTERY (TOP)
-
230645-311 STRAP, BATTERY (SIDE)STRAP, BATTERY (SIDE)
-
240745-166 TRAY, BATTERYTRAY, BATTERY
-
250623-325 NUT, WINGNUT, WING
-
268050-217 WASHERWASHER
-
270123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
283008-040 CLAMP, CABLECLAMP, CABLE
-
290623-589 CLIP, RETAININGCLIP, RETAINING
-
300686-697 HARNESS, ELECTRIC START (INC. 31, 33)HARNESS, ELECTRIC START (INC. 31, 33)
-
310630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
320630-002 DIODE, CHARGINGDIODE, CHARGING
-
330123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
340609-449 SWITCH, IGNITION (INC. 35)SWITCH, IGNITION (INC. 35)
-
362611-744 DECAL, CONSOLE (RIGHT)DECAL, CONSOLE (RIGHT)
-
370123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
380609-113 NUT, RETAININGNUT, RETAINING
-
390716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
403611-644 DECAL, "ES"DECAL, "ES"
-
410623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
