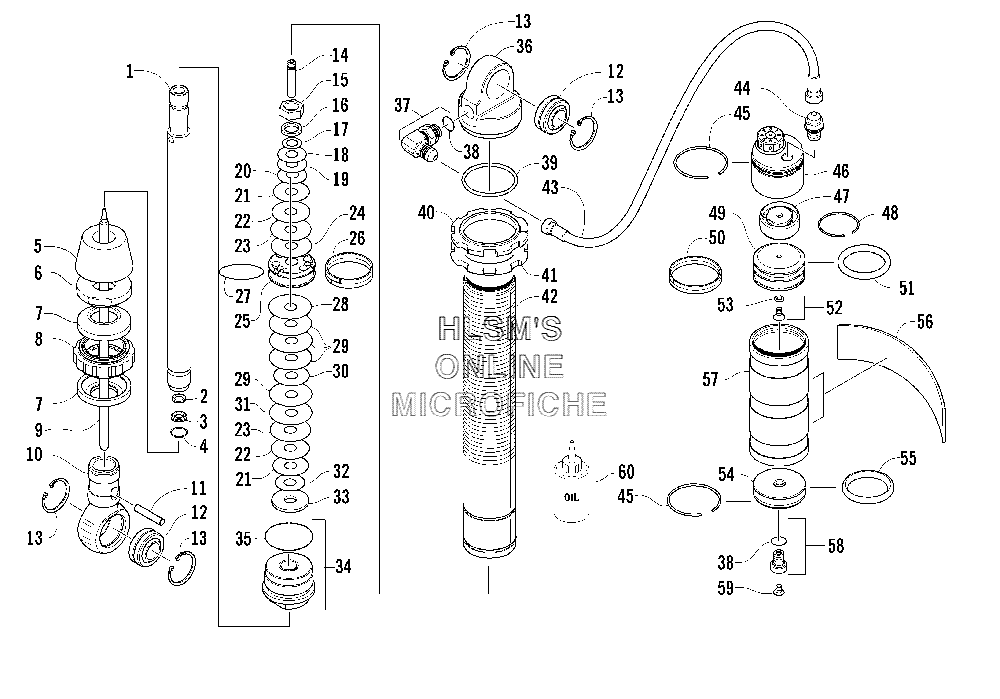

FRONT SUSPENSION SHOCK ABSORBER для Arctic Cat Arctic Cat 440 Sno Pro - 2004 года выпуска

№

Артикул

Название
-

1703-538 COMPLETE SHOCK ABSORBER (RIGHT)

COMPLETE SHOCK ABSORBER (RIGHT)

130 ₽
-

1703-539 COMPLETE SHOCK ABSORBER (LEFT)

COMPLETE SHOCK ABSORBER (LEFT)

130 ₽
1

2603-352 SHAFT, SHOCK

SHAFT, SHOCK

29 530 ₽
2

2603-344 O-RING

O-RING

690 ₽
3

2604-681 WASHER

WASHER

2 280 ₽
4

2604-680 RING, SNAP

RING, SNAP

710 ₽
5

2603-341 BUMPER, SHOCK

BUMPER, SHOCK

11 850 ₽
6

2603-353 SPRING, RETAINER

SPRING, RETAINER

8 520 ₽
7

2603-340 COVER, DUST

COVER, DUST

2 700 ₽
8

2603-361 KNOB, DAMPING ADJUST

KNOB, DAMPING ADJUST

12 270 ₽
9

2603-410 ROD, DAMPING ADJUST, ASSEMBLY

ROD, DAMPING ADJUST, ASSEMBLY

22 670 ₽
10

2603-351 EYELET, SHOCK

EYELET, SHOCK

37 850 ₽
11

2603-345 PIN, DOWEL

PIN, DOWEL

630 ₽
12

1604-664 BEARING, SPHERICAL

BEARING, SPHERICAL

6 860 ₽
13

0623-951 RING, RETAINING

RING, RETAINING

940 ₽
14

2604-674 JET, DAMPING ADJUST

JET, DAMPING ADJUST

6 860 ₽
15

2604-448 NUT, LOCK

NUT, LOCK

2 700 ₽
16

2604-450 WASHER, BACKUP

WASHER, BACKUP

3 320 ₽
17

2604-683 VALVE, SHOCK 0.650 X 0.020 IN.

VALVE, SHOCK 0.650 X 0.020 IN.

2 280 ₽
18

2604-470 VALVE, SHOCK 0.700 X 0.020 IN.

VALVE, SHOCK 0.700 X 0.020 IN.

880 ₽
19

2604-477 VALVE, SHOCK 0.800 X 0.020 IN.

VALVE, SHOCK 0.800 X 0.020 IN.

1 020 ₽
20

2604-474 VALVE, SHOCK 0.800 X 0.010 IN.

VALVE, SHOCK 0.800 X 0.010 IN.

1 020 ₽
21

2604-480 VALVE, SHOCK 0.950 X 0.010 IN.

VALVE, SHOCK 0.950 X 0.010 IN.

2 070 ₽
22

2604-486 VALVE, SHOCK 1.100 X 0.010 IN.

VALVE, SHOCK 1.100 X 0.010 IN.

2 070 ₽
23

2604-685 VALVE, SHOCK 1.250 X 0.008 IN.

VALVE, SHOCK 1.250 X 0.008 IN.

1 870 ₽
24

2604-686 VALVE, SHOCK 1.250 X 0.010 IN.

VALVE, SHOCK 1.250 X 0.010 IN.

900 ₽
25

2603-355 PISTON

PISTON

15 180 ₽
26

0603-292 STRAP, PISTON, TEFLON

STRAP, PISTON, TEFLON

5 610 ₽
27

2603-356 O-RING

O-RING

690 ₽
28

2604-490 VALVE, SHOCK 1.350 X 0.006 IN.

VALVE, SHOCK 1.350 X 0.006 IN.

1 450 ₽
29

2604-491 VALVE, SHOCK 1.350 X 0.008 IN.

VALVE, SHOCK 1.350 X 0.008 IN.

1 870 ₽
30

2604-481 VALVE, SHOCK 0.950 X 0.012 IN.

VALVE, SHOCK 0.950 X 0.012 IN.

1 020 ₽
31

2604-492 VALVE, SHOCK 1.350 X 0.010 IN.

VALVE, SHOCK 1.350 X 0.010 IN.

1 870 ₽
32

2604-472 VALVE, SHOCK 0.800 X 0.006 IN.

VALVE, SHOCK 0.800 X 0.006 IN.

790 ₽
33

2603-354 WASHER, TOP OUT

WASHER, TOP OUT

1 450 ₽
34

2603-203 END CAP, SHOCK (INC. 35)

END CAP, SHOCK (INC. 35)

15 590 ₽
35

1604-420 O-RING

O-RING

690 ₽
36

2603-347 END CAP, SHOCK

END CAP, SHOCK

16 430 ₽
37

1603-942 FITTING, ELBOW (INC. ONE NO. 38)

FITTING, ELBOW (INC. ONE NO. 38)

5 610 ₽
38

1604-318 O-RING

O-RING

1 870 ₽
39

0603-438 O-RING, END CAP

O-RING, END CAP

630 ₽
40

2603-426 RING, BACK, UP

RING, BACK, UP

5 610 ₽
41

2603-376 NUT, SPRING ADJUSTER

NUT, SPRING ADJUSTER

4 150 ₽
42

2603-346 BODY, SHOCK

BODY, SHOCK

0 ₽
43

2603-204 HOSE, SHOCK

HOSE, SHOCK

24 750 ₽
44

2603-342 FITTING, SHOCK

FITTING, SHOCK

6 650 ₽
45

0604-992 RING, RETAINING

RING, RETAINING

920 ₽
46

2603-360 ADJUSTER, DAMPING, ASSEMBLY

ADJUSTER, DAMPING, ASSEMBLY

44 710 ₽
47

2603-359 PLATE, DAMPING ADJUSTER, ASSEMBLY

PLATE, DAMPING ADJUSTER, ASSEMBLY

29 740 ₽
48

0604-808 RING, RETAINING

RING, RETAINING

2 490 ₽
49

2604-517 PISTON, RESERVOIR

PISTON, RESERVOIR

4 150 ₽
50

1603-235 STRAP, PISTON

STRAP, PISTON

3 110 ₽
51

1603-236 O-RING

O-RING

1 660 ₽
52

1604-316 SCREW, RELIEF (INC. 53)

SCREW, RELIEF (INC. 53)

770 ₽
53

1604-425 O-RING

O-RING

690 ₽
54

2603-358 END CAP, RESERVOIR

END CAP, RESERVOIR

9 350 ₽
55

0603-671 O-RING

O-RING

630 ₽
56

2603-343 DECAL, SHOCK

DECAL, SHOCK

4 150 ₽
57

2603-357 BODY, RESERVOIR

BODY, RESERVOIR

25 990 ₽
58

0703-341 VALVE, PRESSURE, ASSEMBLY (INC. ONE NO. 38)

VALVE, PRESSURE, ASSEMBLY (INC. ONE NO. 38)

8 310 ₽
59

0624-097 SCREW, MACHINE

SCREW, MACHINE

130 ₽
60

2639-905 OIL, GAS SHOCK, 6 QT CASE

OIL, GAS SHOCK, 6 QT CASE

0 ₽
