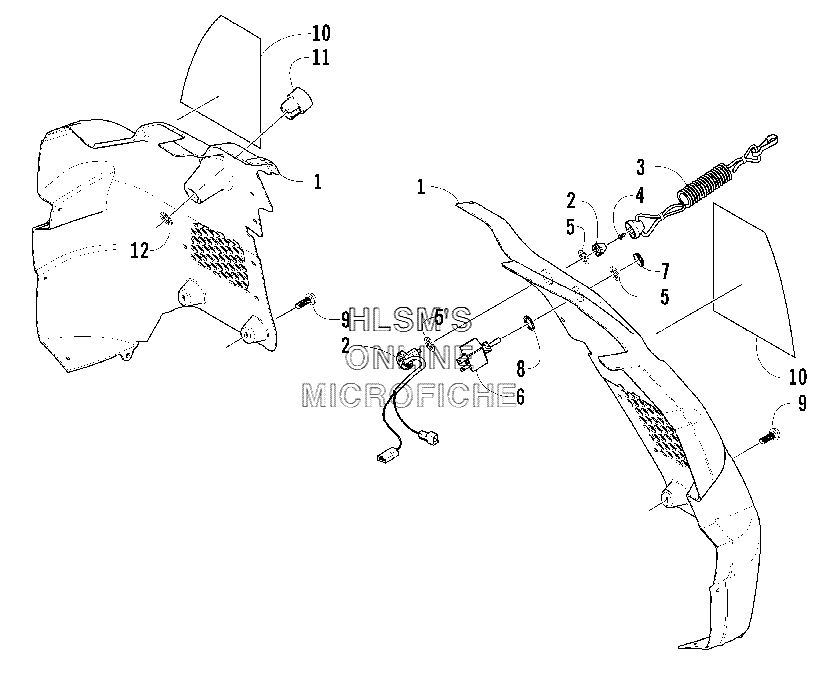

CONSOLE AND SWITCH ASSEMBLY для Arctic Cat Arctic Cat 440 Sno Pro - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    3606-496 CONSOLE (RIGHT)
    CONSOLE (RIGHT)
  • 1
    3606-497 CONSOLE (LEFT)
    CONSOLE (LEFT)
  • 2
    0709-071 TETHER SWITCH ASSEMBLY (INC. 3, 4)
    TETHER SWITCH ASSEMBLY (INC. 3, 4)
  • 3
    0709-055 TETHER ASSEMBLY (INC. 4)
    TETHER ASSEMBLY (INC. 4)
  • 4
    0623-338 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 5
    0123-985 WASHER, LOCK, INTERNAL TOOTH
    WASHER, LOCK, INTERNAL TOOTH
  • 6
    0609-186 SWITCH, HANDWARMER/THUMBWARMER (INC. 7)
    SWITCH, HANDWARMER/THUMBWARMER (INC. 7)
  • 7
    0609-220 NUT, KNURLED
    NUT, KNURLED
  • 8
    0623-153 WASHER, NYLON
    WASHER, NYLON
  • 9
    0623-797 SCREW, SELF, TAPPING
    SCREW, SELF, TAPPING
  • 10
    5611-926 DECAL, CAUTION/WARNING (RIGHT)
    DECAL, CAUTION/WARNING (RIGHT)
  • 10
    5611-927 DECAL, CAUTION/WARNING (LEFT)
    DECAL, CAUTION/WARNING (LEFT)
  • 11
    0116-469 BUSHING, RECOIL
    BUSHING, RECOIL
  • 12
    0123-579 NUT, PUSH
    NUT, PUSH
