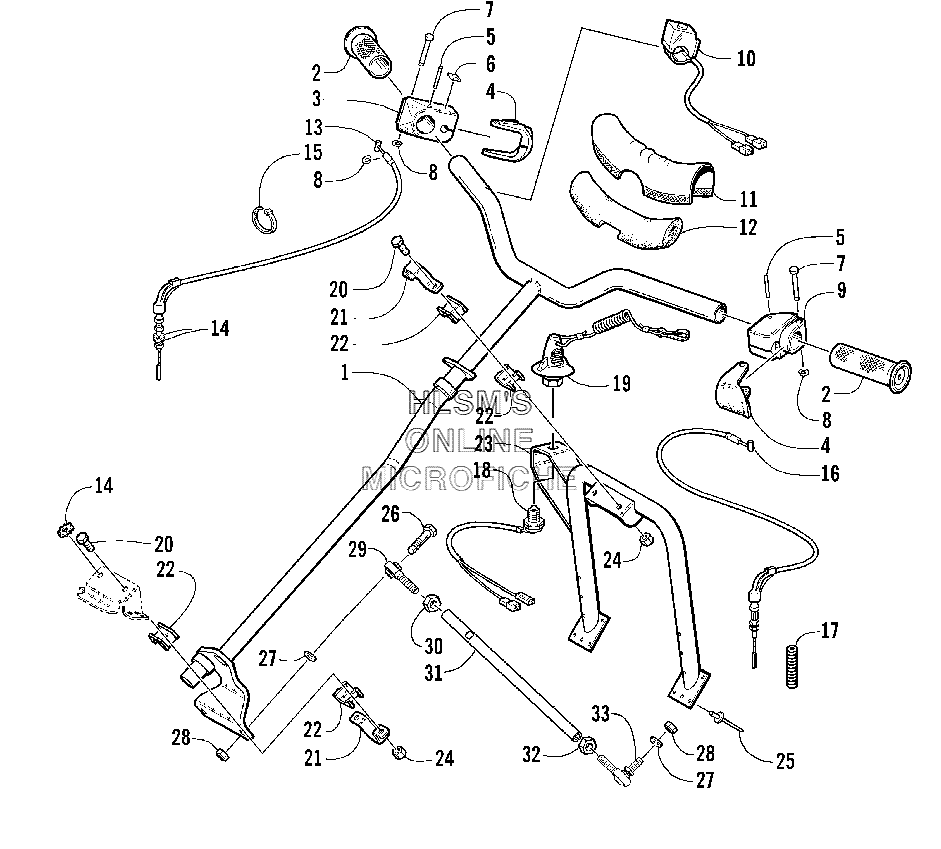

STEERING POST AND TIE ROD ASSEMBLY для Arctic Cat ZR 120 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0703-693 POST, STEERING
    POST, STEERING
  • 2
    1606-765 GRIP, HANDLE
    GRIP, HANDLE
  • 3
    0302-165 CONTROL, THROTTLE
    CONTROL, THROTTLE
  • 4
    0109-609 LEVER, THROTTLE/BRAKE
    LEVER, THROTTLE/BRAKE
  • 5
    8070-318 PIN, SPRING
    PIN, SPRING
  • 6
    0611-022 DECAL, ENGINE STOP SWITCH
    DECAL, ENGINE STOP SWITCH
  • 7
    0123-230 PIN
    PIN
  • 8
    0123-231 RING, RETAINING
    RING, RETAINING
  • 9
    0302-147 HOUSING, BRAKE
    HOUSING, BRAKE
  • 10
    0609-007 SWITCH, ENGINE STOP
    SWITCH, ENGINE STOP
  • 11
    0605-502 COVER, HANDLEBAR PAD
    COVER, HANDLEBAR PAD
  • 12
    0605-501 PAD, HANDLEBAR
    PAD, HANDLEBAR
  • 13
    0687-121 CABLE, THROTTLE
    CABLE, THROTTLE
  • 14
    8053-212 WASHER, LOCK, EXTERNAL TOOTH
    WASHER, LOCK, EXTERNAL TOOTH
  • 15
    0123-788 CABLE TIE, 7 IN.
    CABLE TIE, 7 IN.
  • 16
    0687-122 CABLE, BRAKE
    CABLE, BRAKE
  • 17
    1602-100 SPRING, RETURN, BRAKE
    SPRING, RETURN, BRAKE
  • 18
    0630-138 SWITCH, TETHER, ASSEMBLY (INC. 19)
    SWITCH, TETHER, ASSEMBLY (INC. 19)
  • 19
    0630-139 CORD, TETHER SWITCH
    CORD, TETHER SWITCH
  • 20
    8002-040 SCREW, CAP
    SCREW, CAP
  • 21
    0705-896 RETAINER, BEARING
    RETAINER, BEARING
  • 22
    0605-444 BEARING, STEERING POST
    BEARING, STEERING POST
  • 23
    1706-050 SUPPORT, STEERING POST
    SUPPORT, STEERING POST
  • 24
    8040-366 NUT, LOCK
    NUT, LOCK
  • 25
    8060-504 RIVET
    RIVET
  • 26
    8004-226 SCREW, CAP
    SCREW, CAP
  • 27
    0623-044 WASHER
    WASHER
  • 28
    0623-025 NUT, LOCK
    NUT, LOCK
  • 29
    0605-504 ROD END (RIGHT)
    ROD END (RIGHT)
  • 30
    0123-191 NUT, HEX (RIGHT)
    NUT, HEX (RIGHT)
  • 31
    0605-452 TUBE, TIE ROD
    TUBE, TIE ROD
  • 32
    0123-917 NUT, HEX (LEFT)
    NUT, HEX (LEFT)
  • 33
    0605-511 ROD END (LEFT)
    ROD END (LEFT)
