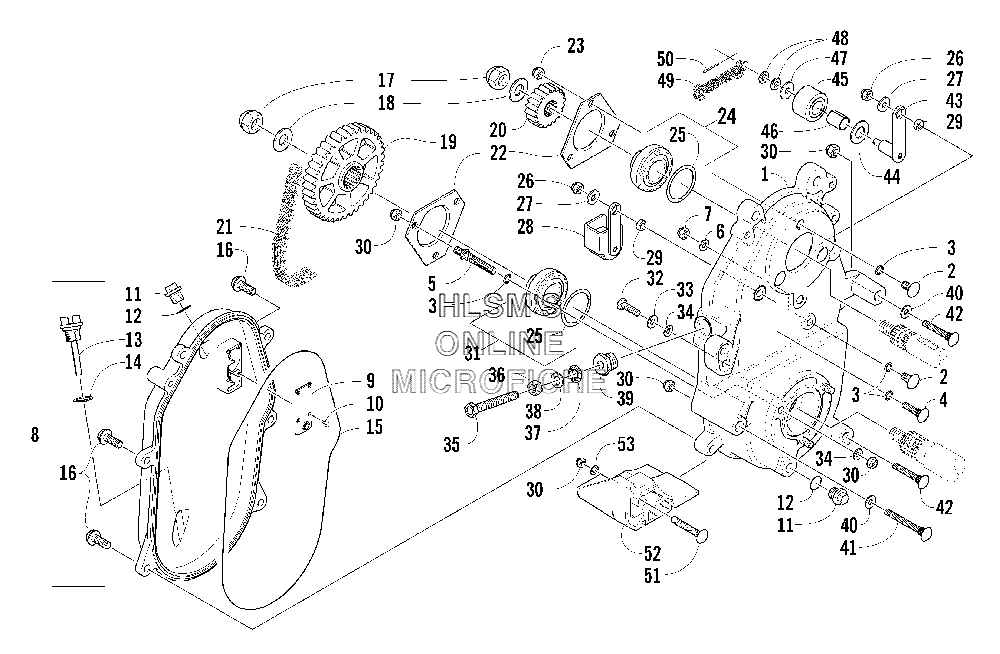

DRIVE/DROPCASE ASSEMBLY для Arctic Cat ZL 800 EFI SS (SILVER) - 2003 года выпуска
-
№АртикулНазвание
-
10702-421 DROPCASE W/STUDS (INC. 2, 7)DROPCASE W/STUDS (INC. 2, 7)
-
20123-523 BOLT, RIBBEDBOLT, RIBBED
-
30607-025 O-RING, STUDO-RING, STUD
-
40623-117 BOLT, RIBBEDBOLT, RIBBED
-
50623-317 STUDSTUD
-
60623-094 WASHERWASHER
-
78042-426 NUTNUT
-
87996-258 COVER, DROPCASE, ASSEMBLY (INC. 9, 10 AND ONE NO. 11, 12)COVER, DROPCASE, ASSEMBLY (INC. 9, 10 AND ONE NO. 11, 12)
-
91602-152 COVER, OIL VENTCOVER, OIL VENT
-
100623-081 SCREW, SELF, TAPPINGSCREW, SELF, TAPPING
-
110623-293 PLUG, DROPCASEPLUG, DROPCASE
-
121602-213 O-RINGO-RING
-
130602-462 STICK, OIL LEVELSTICK, OIL LEVEL
-
140670-183 O, O-RINGIL LEVEL STICKO, O-RINGIL LEVEL STICK
-
150602-437 SEAL, DROPCASESEAL, DROPCASE
-
168020-134 SCREW, CAPSCREW, CAP
-
170623-465 NUT, LOCKNUT, LOCK
-
180623-231 WASHER, SPRINGWASHER, SPRING
-
191602-087 SPROCKET (39 TEETH)SPROCKET (39 TEETH)
-
190602-453 SPROCKET (40 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (40 TEETH) (OVER 5, 000 FT ALT.)
-
200602-446 SPROCKET (24 TEETH)SPROCKET (24 TEETH)
-
200602-444 SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)SPROCKET (19 TEETH) (OVER 5, 000 FT ALT.)
-
211602-042 CHAIN, 72PCHAIN, 72P
-
211602-041 CHAIN, 70P (OVER 5, 000 FT ALT.)CHAIN, 70P (OVER 5, 000 FT ALT.)
-
220602-198 PLATE, FLANGEPLATE, FLANGE
-
238041-426 NUT, LOCKNUT, LOCK
-
240702-486 BEARING, 7/8 IN. (INC. ONE NO. 25)BEARING, 7/8 IN. (INC. ONE NO. 25)
-
250602-801 O-RINGO-RING
-
260623-122 NUT, LOCKNUT, LOCK
-
278050-217 WASHERWASHER
-
280702-324 ARM, TIGHTENER, ASSEMBLYARM, TIGHTENER, ASSEMBLY
-
290602-369 BUSHING, TIGHTENER ARMBUSHING, TIGHTENER ARM
-
308040-426 NUT, LOCKNUT, LOCK
-
310702-485 BEARING, 1 IN. (INC. ONE NO. 25)BEARING, 1 IN. (INC. ONE NO. 25)
-
328002-135 SCREW, CAPSCREW, CAP
-
338051-242 WASHER, LOCKWASHER, LOCK
-
348050-247 WASHERWASHER
-
351602-101 ADJUSTER, CHAINADJUSTER, CHAIN
-
360123-150 NUTNUT
-
370623-905 SEAL, MANUAL ADJUSTSEAL, MANUAL ADJUST
-
388050-272 WASHERWASHER
-
390602-876 ADAPTER, MANUAL ADJUSTADAPTER, MANUAL ADJUST
-
408050-252 WASHERWASHER
-
418011-143 BOLT, CARRIAGEBOLT, CARRIAGE
-
428011-139 BOLT, CARRIAGEBOLT, CARRIAGE
-
430702-115 ARM, TIGHTENERARM, TIGHTENER
-
440623-283 WASHERWASHER
-
450702-129 ROLLER, TIGHTENER (INC. 46)ROLLER, TIGHTENER (INC. 46)
-
460602-383 BEARING, CHAIN TIGHTENERBEARING, CHAIN TIGHTENER
-
470623-284 WASHERWASHER
-
488050-212 WASHERWASHER
-
490702-130 SPRING ASSEMBLYSPRING ASSEMBLY
-
500123-082 PIN, COTTERPIN, COTTER
-
518011-137 BOLT, CARRIAGEBOLT, CARRIAGE
-
520616-964 GUARD, DROPCASEGUARD, DROPCASE
-
538050-242 WASHERWASHER
