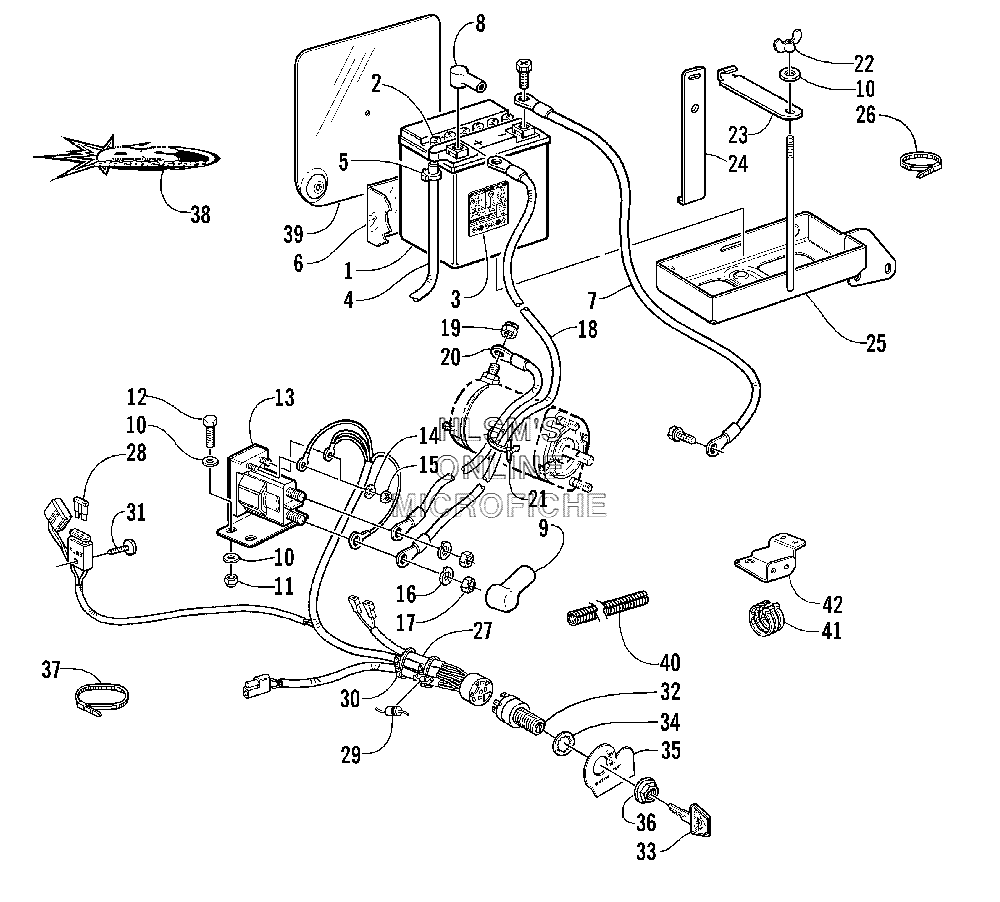

BATTERY- SOLENOID- AND CABLES (OPTIONAL) для Arctic Cat ZL 800 EFI SS (SILVER) - 2003 года выпуска`
-
№АртикулНазвание
-
10745-059 BATTERY (INC. 2, 6)BATTERY (INC. 2, 6)
-
20645-246 CAP, BATTERYCAP, BATTERY
-
30645-151 DECAL, WARNING, BATTERYDECAL, WARNING, BATTERY
-
40645-179 HOSE, BATTERY VENTHOSE, BATTERY VENT
-
50645-152 CLAMP, HOSECLAMP, HOSE
-
60645-082 WRAP, HEAT, BATTERYWRAP, HEAT, BATTERY
-
70645-136 CABLE, BATTERY/GROUND (INC. 8, 9)CABLE, BATTERY/GROUND (INC. 8, 9)
-
80645-019 BOOT, TERMINAL, BATTERYBOOT, TERMINAL, BATTERY
-
90645-327 BOOT, TERMINAL, SOLENOIDBOOT, TERMINAL, SOLENOID
-
108050-217 WASHERWASHER
-
118040-366 NUT, LOCKNUT, LOCK
-
128002-040 SCREW, CAPSCREW, CAP
-
130645-196 SOLENOID (INC. 14, 17)SOLENOID (INC. 14, 17)
-
148051-152 WASHER, LOCKWASHER, LOCK
-
158042-272 NUTNUT
-
168051-242 WASHER, LOCKWASHER, LOCK
-
178043-452 NUTNUT
-
180645-331 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
190623-122 NUT, LOCKNUT, LOCK
-
200645-373 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
210623-677 CABLE TIE, PUSH, MOUNTCABLE TIE, PUSH, MOUNT
-
220623-325 NUT, WINGNUT, WING
-
230645-243 STRAP, BATTERY HOLD, DOWN, TOPSTRAP, BATTERY HOLD, DOWN, TOP
-
240645-311 STRAP, BATTERY HOLD, DOWN, SIDESTRAP, BATTERY HOLD, DOWN, SIDE
-
250745-166 TRAY, BATTERYTRAY, BATTERY
-
260123-788 CABLE TIE, 8 IN.CABLE TIE, 8 IN.
-
270686-697 HARNESS, ELECTRIC START (INC. 28, 30)HARNESS, ELECTRIC START (INC. 28, 30)
-
280630-100 FUSE, 7.5 AMPFUSE, 7.5 AMP
-
290630-002 DIODE, CHARGINGDIODE, CHARGING
-
300123-811 CABLE TIE, 4 IN.CABLE TIE, 4 IN.
-
310623-589 CLIP, RETAININGCLIP, RETAINING
-
320609-449 SWITCH, IGNITION (INC. 33)SWITCH, IGNITION (INC. 33)
-
340123-899 WASHER, LOCK, INTERNAL TOOTHWASHER, LOCK, INTERNAL TOOTH
-
352611-744 DECAL, CONSOLEDECAL, CONSOLE
-
360609-113 NUT, RETAININGNUT, RETAINING
-
370623-144 CABLE TIE, 17.5 IN.CABLE TIE, 17.5 IN.
-
383611-644 DECAL, "ES"DECAL, "ES"
-
390745-139 SHIELD, HEATSHIELD, HEAT
-
400716-391 CONDUIT, FLEXIBLECONDUIT, FLEXIBLE
-
410623-540 CABLE TIE, TRIPLECABLE TIE, TRIPLE
-
420712-834 BRACKET, MOUNTING, RESONATORBRACKET, MOUNTING, RESONATOR
