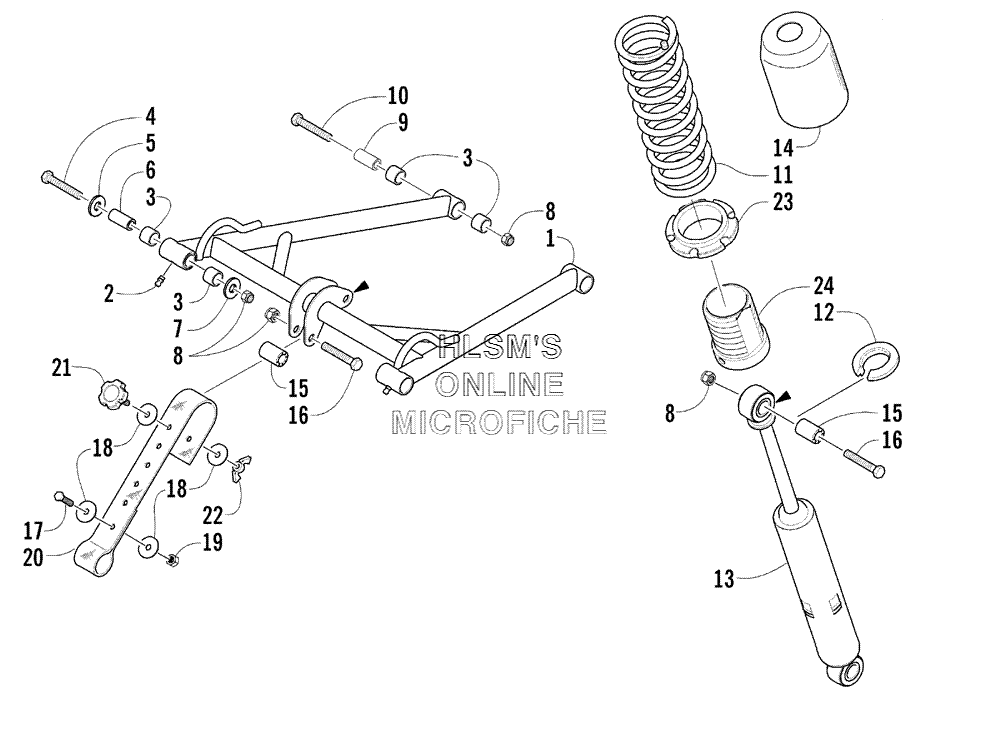

REAR SUSPENSION FRONT ARM ASSEMBLY для Arctic Cat MOUNTAIN CAT 570 - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    0704-919 ARM SUSPENSION (FRONT) (PLATINUM) (INC. 2, 3)
    ARM SUSPENSION (FRONT) (PLATINUM) (INC. 2, 3)
  • 2
    1623-010 FITTING, GREASE, SELF, TAPPING
    FITTING, GREASE, SELF, TAPPING
  • 3
    0604-889 BUSHING ARM (FRONT)
    BUSHING ARM (FRONT)
  • 4
    8002-230 SCREW, CAP
    SCREW, CAP
  • 5
    0623-044 WASHER
    WASHER
  • 6
    1604-162 AXLE, CARRIAGE (INNER)
    AXLE, CARRIAGE (INNER)
  • 7
    0114-197 WASHER
    WASHER
  • 8
    8040-486 NUT, LOCK
    NUT, LOCK
  • 9
    0104-629 SPACER ARM (FRONT)
    SPACER ARM (FRONT)
  • 10
    8002-228 SCREW, CAP
    SCREW, CAP
  • 11
    1603-171 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 12
    1603-889 RETAINER, SPRING
    RETAINER, SPRING
  • 13
    2604-160 SHOCK ABSORBER ARM (FRONT)
    SHOCK ABSORBER ARM (FRONT)
  • 14
    0604-590 COVER, SHOCK
    COVER, SHOCK
  • 15
    0603-030 AXLE, SERRATED
    AXLE, SERRATED
  • 16
    8002-226 SCREW, CAP
    SCREW, CAP
  • 17
    8002-042 SCREW, CAP
    SCREW, CAP
  • 18
    0623-184 WASHER
    WASHER
  • 19
    8041-366 NUT, LOCK
    NUT, LOCK
  • 20
    2604-134 STRAP, LIMITER
    STRAP, LIMITER
  • 21
    1623-044 KNOB, ADJUSTER
    KNOB, ADJUSTER
  • 22
    0623-325 NUT, WING
    NUT, WING
  • 23
    0603-259 NUT, RETAINING
    NUT, RETAINING
  • 24
    0603-147 SLEEVE, SHOCK
    SLEEVE, SHOCK
