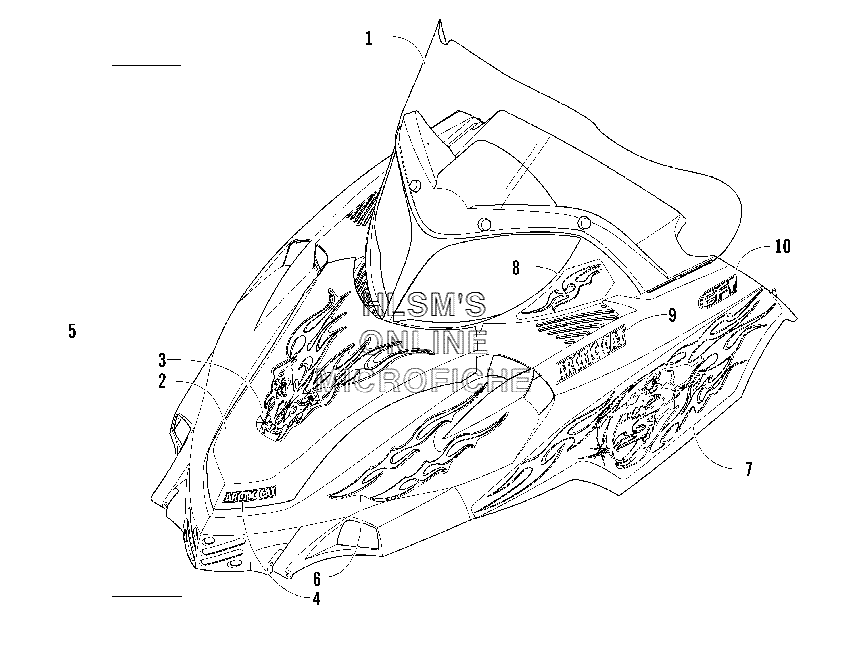

HOOD AND WINDSHIELD ASSEMBLY (SABERCAT) для Arctic Cat FIRECAT 700 EFI (RED) - 2003 года выпуска`
-
№АртикулНазвание
-
12606-834 WINDSHIELDWINDSHIELD
-
21718-298 COVER, HOOD (RED) (INC. 3, 4)COVER, HOOD (RED) (INC. 3, 4)
-
34611-964 DECAL, HOOD (CENTER) (RED)DECAL, HOOD (CENTER) (RED)
-
44611-958 DECAL, "ARCTIC CAT", COVER (RED)DECAL, "ARCTIC CAT", COVER (RED)
-
51718-344 HOOD W/DECALS (RED) (INC. 6, 10) (700 EFI RED)HOOD W/DECALS (RED) (INC. 6, 10) (700 EFI RED)
-
64611-982 DECAL, HOOD (FRONT) (RIGHT) (RED)DECAL, HOOD (FRONT) (RIGHT) (RED)
-
64611-983 DECAL, HOOD (FRONT) (LEFT) (RED)DECAL, HOOD (FRONT) (LEFT) (RED)
-
74611-984 DECAL, HOOD (LOWER/RIGHT) (RED)DECAL, HOOD (LOWER/RIGHT) (RED)
-
74611-985 DECAL, HOOD (LOWER/LEFT) (RED)DECAL, HOOD (LOWER/LEFT) (RED)
-
84611-988 DECAL, HOOD, VENT (RIGHT) (RED)DECAL, HOOD, VENT (RIGHT) (RED)
-
84611-989 DECAL, HOOD, VENT (LEFT) (RED)DECAL, HOOD, VENT (LEFT) (RED)
-
94611-961 DECAL, "ARCTIC CAT", HOOD (UPPER) (RED)DECAL, "ARCTIC CAT", HOOD (UPPER) (RED)
-
105611-100 DECAL, "EFI" (700 EFI GREEN)DECAL, "EFI" (700 EFI GREEN)
-
105611-048 DECAL, "EFI" (700 EFI BLACK)DECAL, "EFI" (700 EFI BLACK)
-
105611-050 DECAL, "EFI" (700 EFI RED)DECAL, "EFI" (700 EFI RED)
